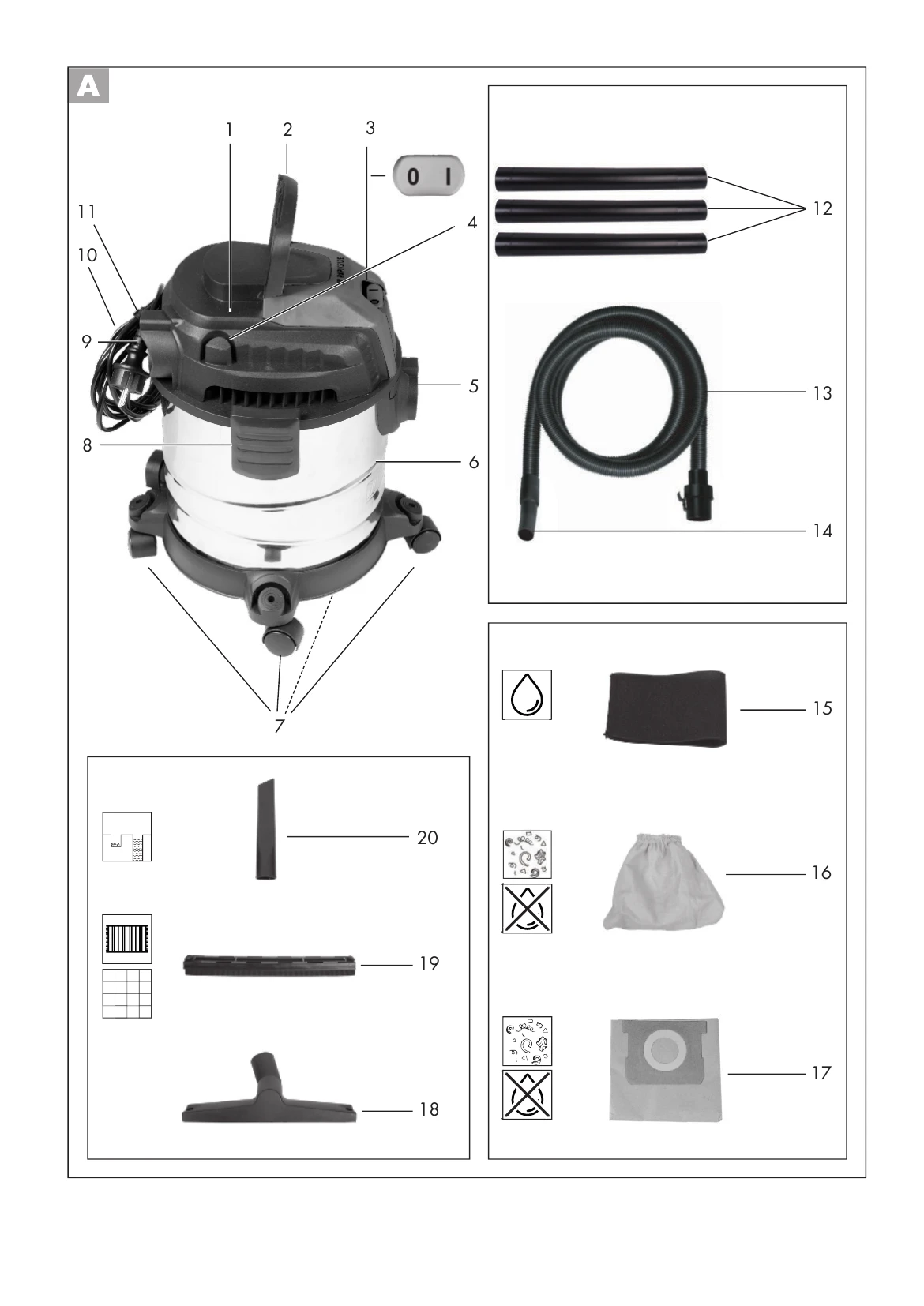

Manual for PWD 12 B1
Uploaded: Nov. 21, 2025, 7:51 p.m.
Warranty Information
3-year warranty from purchase date covering material or manufacturing defects.
- Wet and dry vacuuming in residential applications, e.g. in the home, hobby room, car or garage.
- As a blower.
- Extracting water.
Safety Precautions: Always read the instruction manual. Familiarise yourself with controls and safe operation. Use only as described. Keep manual safe. Children aged 8+ may use under supervision. Ensure correct assembly and filters are in place. Do not vacuum flammable, explosive, or hazardous substances. Disconnect power before maintenance.
Troubleshooting and error codes
| Problem | Possible Cause | Troubleshooting |
|---|---|---|
| Device does not start | On/Off switch set to OFF | Check position of the On/Off switch. |
| No mains voltage | Check socket, mains cable, plug, fuse, and if necessary, have it repaired by an electrician. | |
| Defective On/Off switch | Contact the Service-Center. | |
| Torn carbon brushes | Contact the Service-Center. | |
| Defective motor | Contact the Service-Center. | |
| Weak or no suction power | Suction hose (13) or nozzles blocked | Clear blockages and obstructions. |
| Suction pipe (12) not assembled correctly | Assemble and disassemble suction pipe, see page 10. | |
| Dirt container (6) open | Assemble and disassemble motor head, see page 10. | |
| Dirt container (6) full | Empty dirt container, see page 13. | |
| Filter (15/16/17) full or clogged | Empty, clean or replace filter. | |
| Float in filter basket (21) in incorrect position (e.g. due to jerky movements) | Switch off the device to lower the float, then switch it on again. | |
| Defective float in filter basket (21) | Contact the Service-Center. | |
| Float does not close suction opening | Float in filter basket (21) does not move | Free the float. |
| Defective float in filter basket (21) | Contact the Service-Center. | |
| Dust or dirt blown from the device | Filter (15/16/17) not installed or installed incorrectly | Install and remove filters and filter bags, see page 11. |
