Manual for 23102

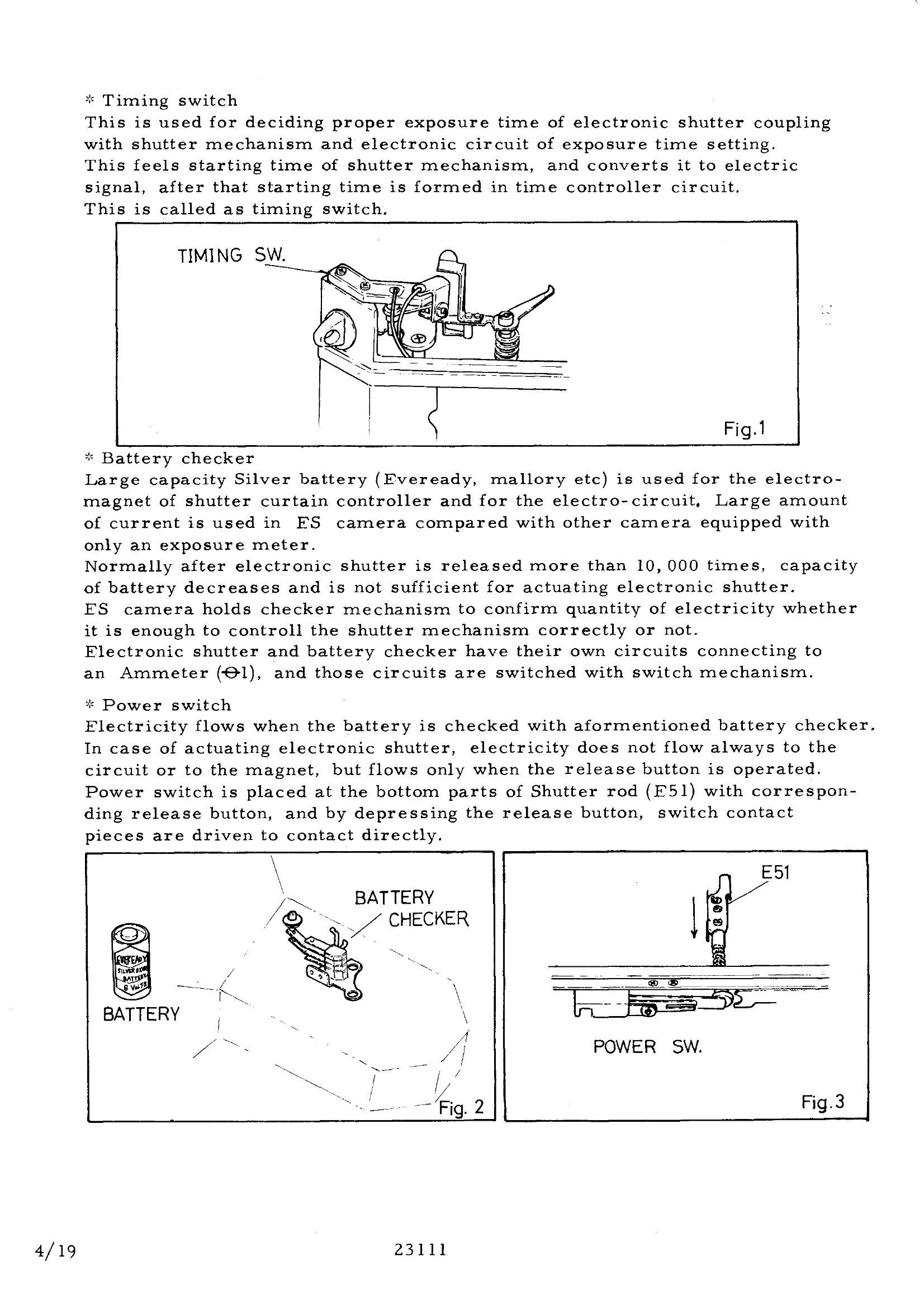

This manual provides detailed instructions for servicing the ASAHI PENTAX ES camera (Product No. 23111). It covers assembly, adjustment, and disassembly procedures, with a focus on the exclusive mechanical and electronic structures of the ES model. Key sections include:

• Introduction to the ES camera, highlighting its relationship to the SPOTMATIC and its unique features.
• Detailed guidance on specific mechanisms such as the timing switch, battery checker, power switch, memory block, and connectors.
• Instructions for adjusting mechanical and electronic exposure times, meter levels, and the battery checker.
• Procedures for disassembling and reassembling the camera, emphasizing care with electronic components and wiring.
• A list of special servicing tools required for maintenance.

The manual stresses the importance of proper soldering techniques and the use of specified lubricants and materials.
