Manual for ES II

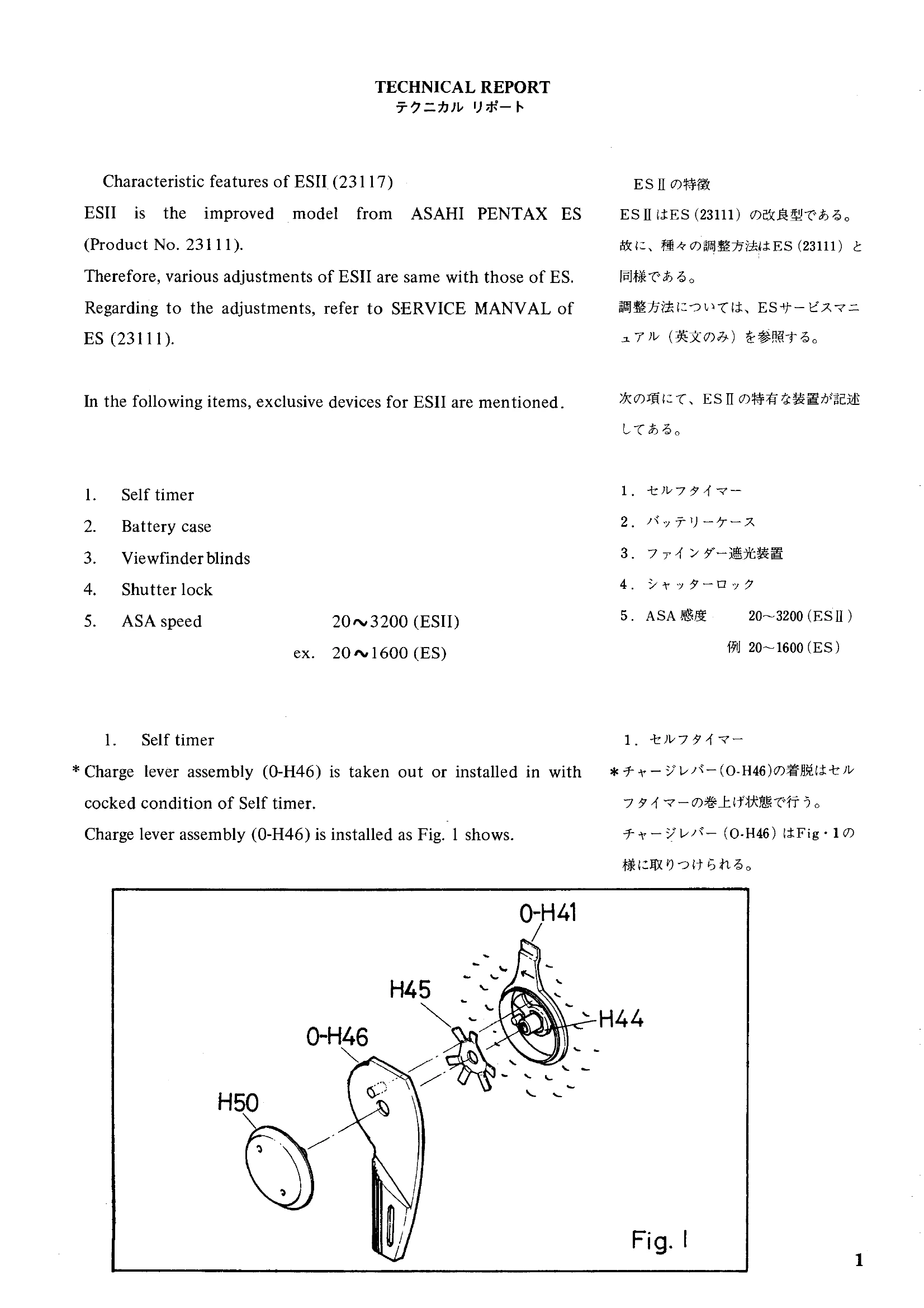

1. Self timer: Charge lever assembly (0-H46) removal/installation is done in the cocked state of the self-timer. Installation is as shown in Fig. 1. There are four types of charge lever retainer screws (H50) for facilitating movement. Self-timer stroke adjustment: Set shutter speed dial to B, release shutter with self-timer. If exposure time is not around 1,000ms, adjust using eccentric collar (E106). 2. Battery case: Located at the bottom of the front board complete assembly (A0-A6). A new battery adapter is used when checking with testers. 3. Viewfinder blinds: If blinds do not shut or open completely, adjust by bending Lever plate (E94). 4. Shutter lock: Shutter lock mechanism is newly installed. 5. ASA speed: 20-3200 (ESII), ex. 20-1600 (ES). Lubricants: G31 (ESII) -> G2b (SP), L21 (ESII) -> L1 (SP), G21 (ESII) -> G1 (SP).
