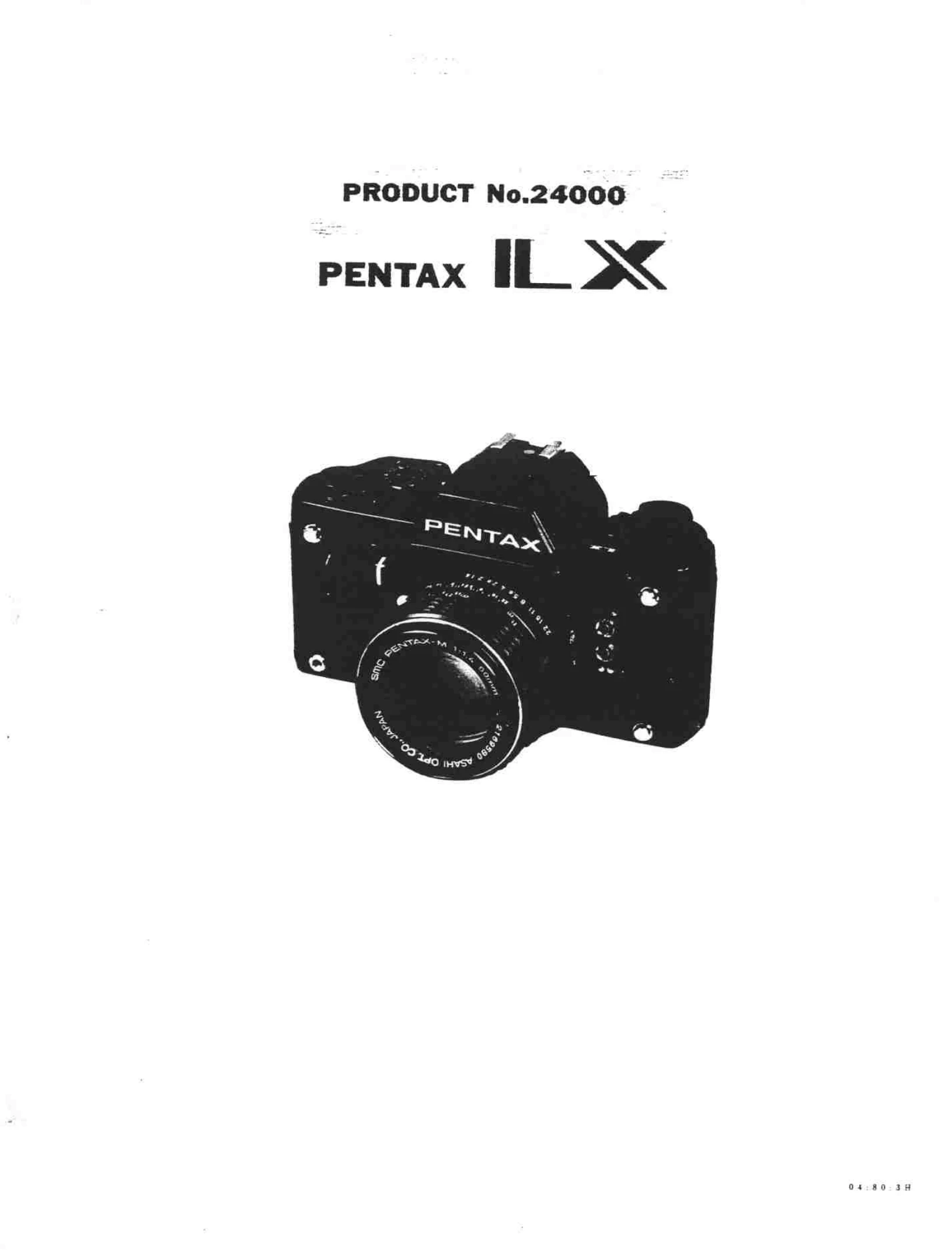

Manual for ILX
Uploaded: Aug. 9, 2025, 11:57 p.m.
This manual provides detailed instructions for the maintenance and repair of the PENTAX ILX camera. It includes exploded illustrations of various components, a list of service parts with their descriptions and quantities, and specific procedures for assembly, adjustment, and troubleshooting.
Key sections cover electrical-controlled manual speed adjustment, LED indication adjustment, shutter speed dial assembly, rewind parts, bottom release restriction, shutter button stroke adjustment, second curtain switch adjustment, flash synch. LED adjustment, sealing procedures, cover parts, and detailed instructions for the shutter curtain block assembly, mirror housing assembly, and various gear and lever adjustments.
The manual emphasizes careful handling of delicate parts, particularly the shutter curtains, and provides guidance on cleaning and replacement. It also details specific tools required for certain repair tasks.
Troubleshooting and error codes
| Part No. | Description | Quantity | Interchangeability |
|---|---|---|---|
| A2 | Back cover key retainer | 1 | |
| A3 | Back cover key | 1 | |
| A4 | Back cover guide screw | 1 | |
| A5 | Back cover key retainer spring | 1 | |
| A6 | Back cover key collar | 2 | |
| A7 | Destributing wire cover | 1 | |
| A8 | Shutter rod cover | 1 | |
| A9 | Accessory lug A | 3 | |
| A10 | Accessory lug B | 1 | |
| 0-A11 | Shutter curtain light seal assy. (A11, A33x2) | 1 | |
| A12 | Sprocket shaft receptacle, top | 1 | |
| A13 | Bottom wind cap seat | 1 | |
| A14 | Tripod seat | 1 | |
| 0-A15 | Data contact seat assy. (A15, A16x2, A17) | 1 | |
| A20 | Data light seal cover | 1 | 23820-A53 |
| A21 | Curtain shaft rest retainer screw | 1 | |
| A22 | Top cover B installing shaft | 1 | |
| A23 | Waterproof rubber A | 1 | |
| A24 | " B | 1 | 24000 |
| A25 | Waterproof rubber C | 1 | |
| A26 | " D | 1 | |
| A27 | " E | 1 | |
| A28 | Cord holder | 1 | |
| A29 | Self-timer installing shaft | 1 | |
| A30 | Waterproof rubber F | 1 | |
| A31 | Light seal curtain A | 2 | |
| A35 | Light seal tape | 1 | |
| A36 | Hinge cover | 2 | |
| A37 | P. C. board pattern installing shaft | 1 | |
| A38 | Waterproof rubber G | 1 | |
| A39 | " H | 1 | |
| A100 | Front board assy. (A101, A102, A103, A104, A105, A106x6, A107, A108, A109, A110, A111, A112, A115, A116, A117, A118x2, A119x2, A120x2, A121, A122x2, A123x2, A124, A125x5, A126x5, A127, A128, A129x2, A130x2, A131, A132, A133, A134, A135, A136, A137, A138, A139, A140, A141, A142, A143, A144, A146, A147, A148, A149, A152, A153, A154, A156x2, A157, C112, K101, K102, CSS1.4x2x4, CNS1.7x2x2, CNS1.7x2. 5, CNL-D1.4x2.5, CNL-D1.7x2.5, CNL-D1.7x3x2, T-CSS1.7x2.5, W43, W57, LW7x2) | 1 | |
| A104 | Mount ring | 1 | |
| A105 | Mount spring | 1 | 23900-A105 |
| A106 | Mount retainer screw | 6 | 23900-A106 |
| A110 | Mount lock pin collar | 1 | |
| A111 | Mount lock button spring | 1 | 23800-A111 |
| A112 | Mount lock pin support plate | 1 | |
| A113 | Front board retainer screw | 4 | 23900-A132-01 |
| A155 | Front board waterproof rubber B | 1 | |
| A156 | Diaphragm coupler ring retainer | 2 | |
| A157 | Front board insulation seal | 1 | |
| A200 | Back cover assy. (A201, A202, A203, A208x4, A209, A210, A211, A212, A213, A214, A215, A216, A217x5, A218, A219x2) | 1 | |
| 0-A205 | Pressure plate assy. (A205, A206, A207x2) | 1 | |
| A219 | Back cover waterproof rubber | 2 | |
| A220 | Pressure plate cover | 1 | |
| 0-A301 | Top cover A assy. (A301~A317, CSS1.4x1.4x2, BO1. 2, W2) | 1 | |
| 0-A305 | Shutter button receptacle assy. (A305, A306) | 1 | |
| A307 | Shutter button lock lever | 1 | |
| A308 | Shutter button lock lever shaft | 1 | |
| A309 | Shutter button | 1 | |
| A310 | Shutter button seat | 1 | |
| -00000J | |||
| 0-A311-00A | Click adjusting washer A assy. (A311-00A t=0.3, A312) | 1 | |
| 0-A311-00B | Click adjusting washer B assy. (A311-00B t-0.4, A312) | 1 | |
| A313 | Shutter button core | 1 | |
| A314 | Shutter button lock lever spring | 1 | |
| A315 | Shutter button seat spring | 1 | |
| A316 | Shutter button guide screw A | 1 | |
| A317 | " B | 1 | |
| A318 | Top cover retainer screw | 2 | |
| 0-A351 | Top cover B assy. (A351, A352, A356~A362) | 1 | |
| A353 | Seal ring | 1 | |
| A354 | Seal ring washer | 1 | |
| A355 | Seal rubber ring | 1 | |
| A356 | Finder lock release button | 1 | |
| A357 | Lock release button seat | 1 | |
| A358 | Lock release button restitution spring | 1 | |
| A361 | Lock release button seat restitution spring | 1 | |
| A362-00A | Lock release button seat collar A (t-0.3) | 1 | |
| A362-00B | " B (t-0.2) | 1 | |
| A400 | Bottom cover assy. (A401, A406, A407, A408, A409, A410, A411, A412, A414, GS1.5) | 1 | |
| 0-A402 | Battery cap assy. (A402, A413) | 1 | |
| A403 | Bottom wind cap | 2 | |
| A404 | Bottom cover retainer seat | 2 | |
| A405 | Shock absorbing rubber | 2 | |
| A406 | Bottom wind restriction pin | 1 | |
| A412 | Waterproof washer | 1 | |
| A414 | Scratch protection seal | 1 | |
| A501 | Shutter rod | 1 | |
| A502 | Bulb actuating plate | 1 | |
| A503 | Bottom release restriction plate | 1 | |
| 0-A504 | Shutter rod positioning plate assy. (A504, A508) | 1 | |
| A505 | Mirror release plate | 1 | |
| A506 | Self-charge release plate | 1 |
