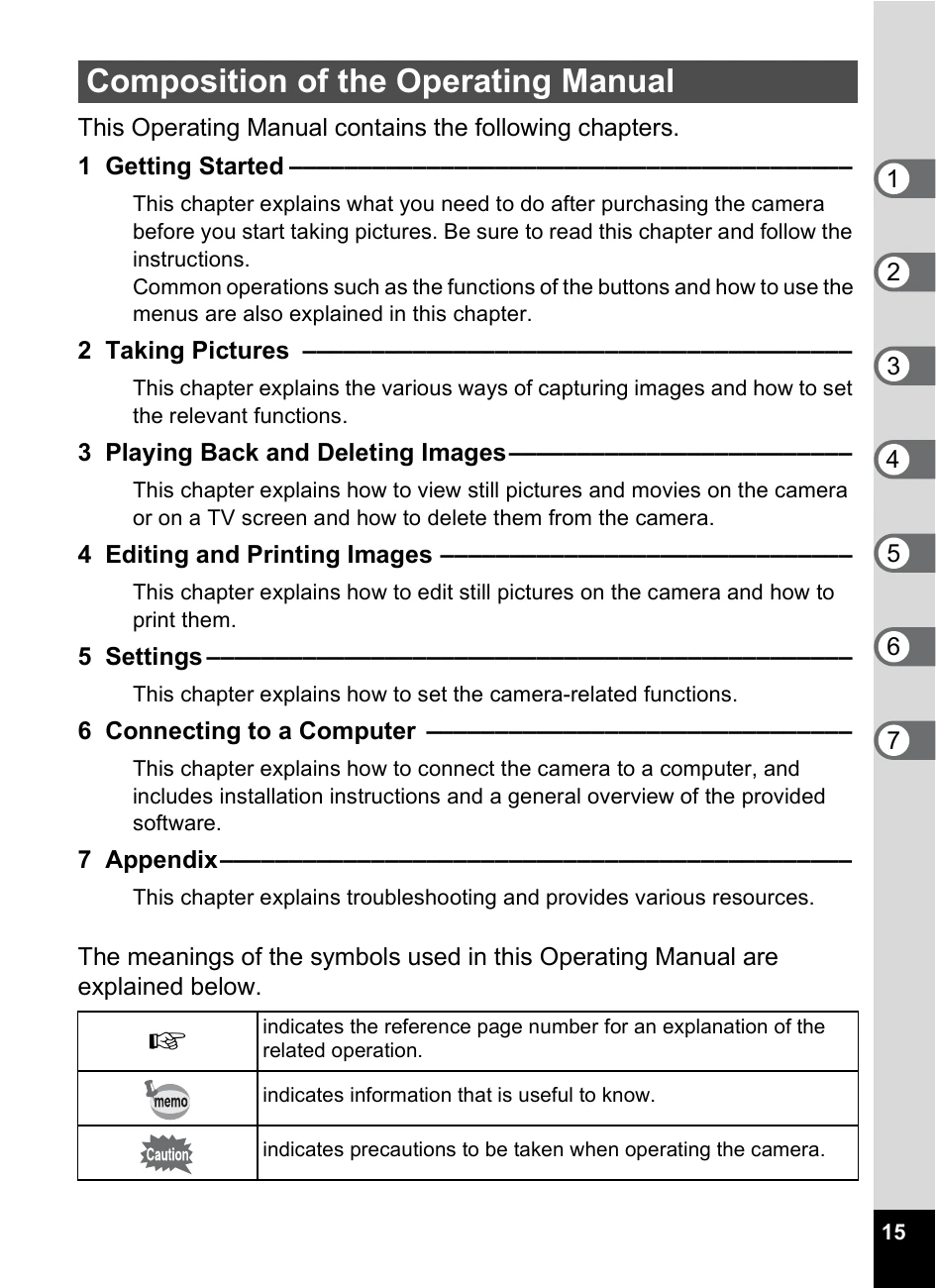

Manual for MX-1
Uploaded: Aug. 9, 2025, 11:57 p.m.
Manual Publish Date: 2013-01-01
Warranty Information
12-month warranty against defects in material or workmanship from date of purchase.
Getting Started
- Attaching Lens Cap and Strap: Connect the string of the lens cap to the strap, then pass the strap through the strap lug and secure it.
- Powering the Camera: Charge the battery using the supplied charger. Connect the AC plug cord to the battery charger and then to the power outlet. Place the battery in the charger with the PENTAX logo facing up. The charging indicator lights up and turns off when charging is finished.
- Installing Battery: Open the battery/card cover, slide the lock lever, and insert the battery with the PENTAX logo facing the display. Match the marks and push until it locks. Close the cover securely.
- Installing SD Memory Card: Make sure the camera is off. Open the battery/card cover and insert the SD Memory Card into the socket with the label facing the display side. Push until it clicks.
- Turning Camera On/Off: Remove the lens cap. Press the power button. The camera turns on, the lens extends, and the display lights up. Press the power button again to turn the camera off.
- Initial Settings: When turning the camera on for the first time, follow the on-screen prompts to set the display language and date/time.
Troubleshooting and error codes
| Problem | Cause | Remedy |
|---|---|---|
| The camera will not turn on. | The battery is not installed. | Check if a battery is installed. If not, install a battery. |
| The battery is exhausted. | Replace the battery with another charged one or use the optional AC adapter kit K-AC130. | |
| No image appears on the display. | The camera is connected to a computer. | The display is off when the camera is connected to a computer. |
| The camera is connected to a TV. | The display is off when the camera is connected to a TV. | |
| The display is hard to see. | The brightness level of the display is set too dark. | Adjust the brightness level in [LCD Settings] in the [Setting 3] menu (p.185). |
| Power Saving function is activated. | Press any button to return to the normal brightness level. Select [Off] in [Power Saving] in the [Setting 3] menu to turn the Power Saving function off (p.186). | |
| The shutter will not release. | The flash is charging. | Pictures cannot be taken while the flash is charging. Wait until charging is finished. |
| There is no available space on the SD Memory Card or in the built-in memory. | Insert an SD Memory Card with available space or delete unwanted images (p.133). | |
| Recording | Wait until recording is finished. | |
| The picture is dark when using the flash. | The subject is too far away in a dark environment, such as a night scene. | The picture becomes dark if the subject is too far away. Take pictures within the specified flash range. |
