Manual for CD380/00R/05R
Uploaded: Nov. 21, 2025, 7 p.m.
Manual Publish Date: 1988-12-01
Warranty Information
Safety regulations require that the set be restored to its original condition.

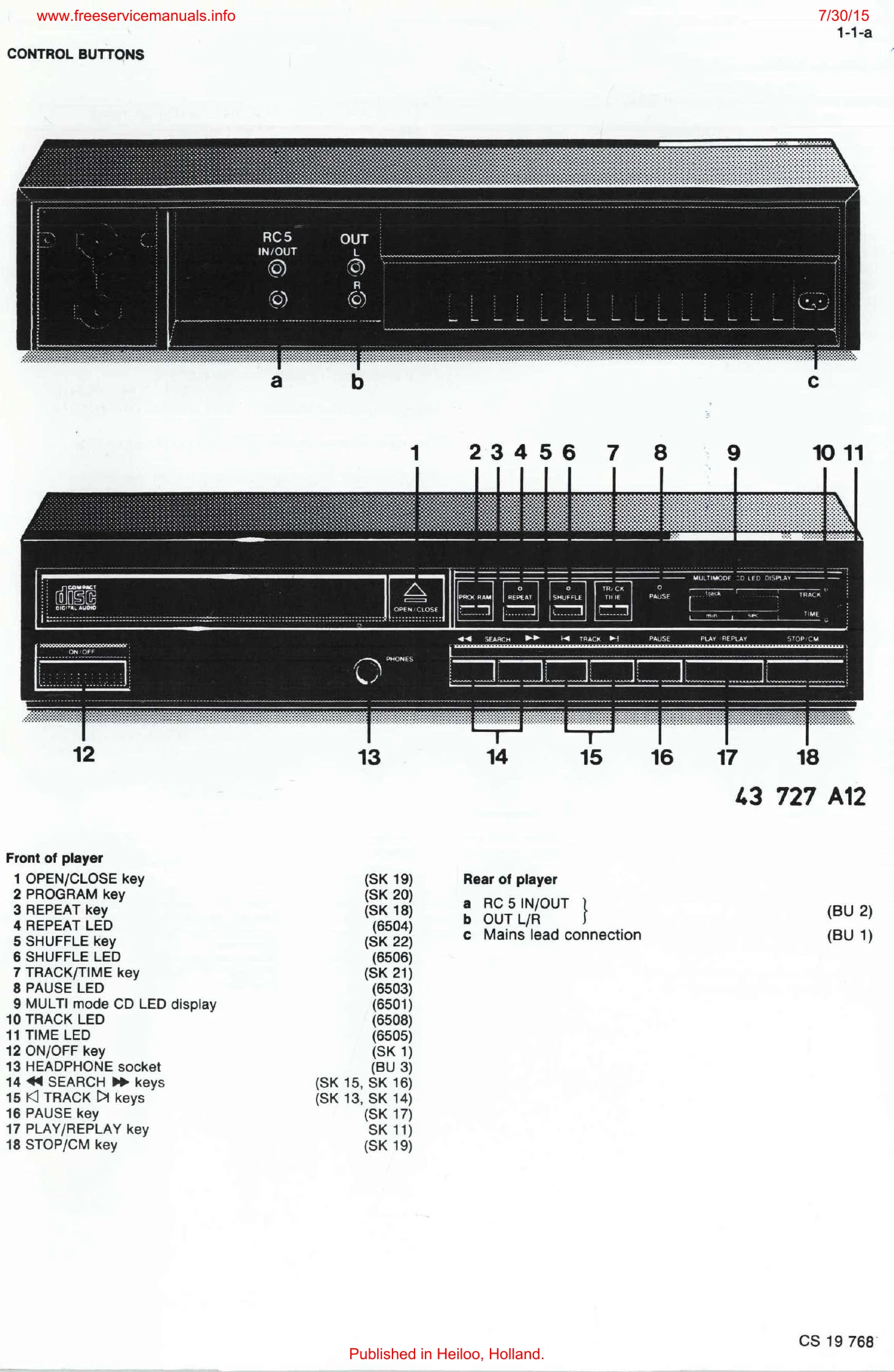

Basic Operation:
Power On/Off: Use the ON/OFF key (12) to power the unit on or off.
Disc Handling:
- OPEN/CLOSE key (1) to open or close the disc tray.
- Place a CD on the turntable, label side up. Ensure it rests properly on the turntable.
- The disc hold-down mechanism secures the disc.
Playback Controls:
- PLAY/REPLAY key (17) to start playback.
- PAUSE key (16) to pause playback.
- STOP/CM key (18) to stop playback or clear memory.
- SEARCH keys (14) to skip tracks forward or backward.
- TRACK keys (15) to select specific tracks.
Playback Modes:
- PROGRAM key (2) to program a sequence of tracks.
- REPEAT key (3) to repeat a track or the entire disc.
- SHUFFLE key (5) for random playback.
Display Information:
- MULTI mode CD LED display (9) shows track number, time, and mode.
- TRACK LED (10) and TIME LED (11) indicate the display mode.
Other Features:
- HEADPHONE socket (13) for audio output.
- RC5 IN/OUT (a) for remote control connection.
- OUT L/R (b) for audio output.
Power On/Off: Use the ON/OFF key (12) to power the unit on or off.
Disc Handling:
- OPEN/CLOSE key (1) to open or close the disc tray.
- Place a CD on the turntable, label side up. Ensure it rests properly on the turntable.
- The disc hold-down mechanism secures the disc.
Playback Controls:
- PLAY/REPLAY key (17) to start playback.
- PAUSE key (16) to pause playback.
- STOP/CM key (18) to stop playback or clear memory.
- SEARCH keys (14) to skip tracks forward or backward.
- TRACK keys (15) to select specific tracks.
Playback Modes:
- PROGRAM key (2) to program a sequence of tracks.
- REPEAT key (3) to repeat a track or the entire disc.
- SHUFFLE key (5) for random playback.
Display Information:
- MULTI mode CD LED display (9) shows track number, time, and mode.
- TRACK LED (10) and TIME LED (11) indicate the display mode.
Other Features:
- HEADPHONE socket (13) for audio output.
- RC5 IN/OUT (a) for remote control connection.
- OUT L/R (b) for audio output.
Troubleshooting and error codes
| Indi- cation |
Cause | Check |
| Er 01 | No RD | Si, Sc, RD, Photodiode signal processor |
| Er 02 | No TL pulse at start-up | TL, HF, Photodiode signal processor, CD disc present |
| Er 03 | No lead-in track found | CD disc, radial arm position, REdig, Radial error processor |
| Er 04 | Too many TL pulses in PLAY |
CD disc, HFD |
| Er 05 | TL pulse > 50 msec. in PLAY |
CD disc, HF in, photodiodes |
| Er 06 | No TL pulse within 0.5 sec. during track jumping |
RE-lag circuit |
| Er 07 | Subcoding error during PLAY |
HF |
| Er 08 | TOC error | CD disc, turntable motor control, radial arm position |
| Er 30 | "NEXT" key operated during the last track, with "REPEAT" turned off. |
|
| Er 31 | "PREVIOUS" key operated during the first track, with "REPEAT" turned off. |
|
| Er 32 | Index selected before a track has been selected. | |
| Er 33 | The selected index number does not exist on this disc. |
|
| Er 34 | Programme survey requested; no programme present. |
|
| Er 35 | The programme memory is full. | |
| Er 36 | The progammed track is not present on this CD disc. |
|
| Er 37 | The selected track is not present on this CD disc. | |
| Er 60 | End of the "FAST FORWARD" search motion. | |
| Er 61 | End of the "FAST REVERSE" search motion. |
