Warranty Information

Refer to www.philips.com/support for warranty information. Specifications are subject to change without notice.

Basic Operation of Philips TAT1209 Headphones

Charging the Earpieces: Place the earpieces in the charging box. The white LED will light up, indicating charging. The light goes off when fully charged. Charge the charging box by plugging one end of the USB-C cable into the box and the other into a power source. A full charge for earpieces or box takes approximately 2 hours.

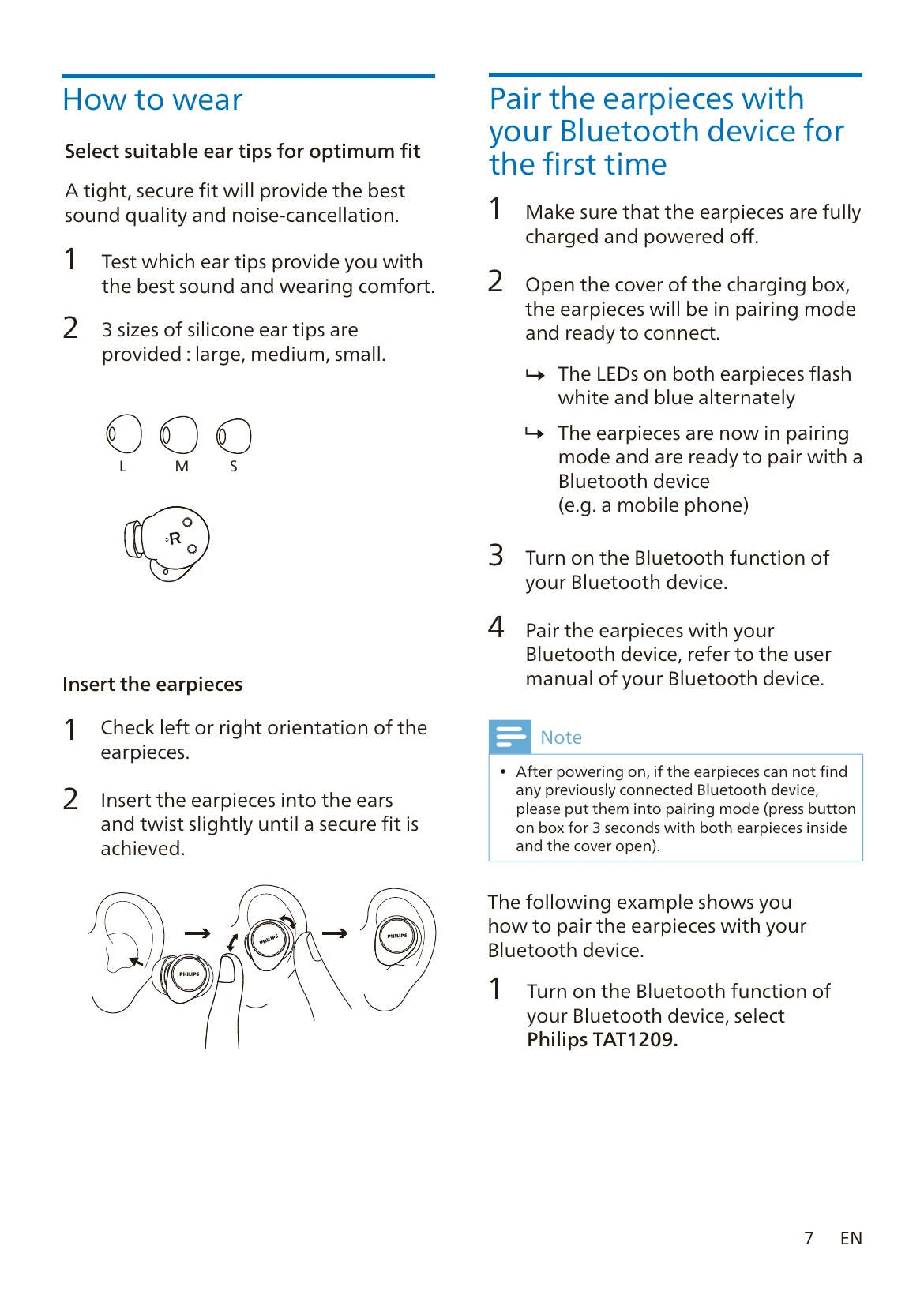

Wearing the Earpieces: Select the correct ear tips for a secure fit. Insert the earpieces into your ears, checking for left/right orientation, and twist slightly for a comfortable and secure fit.

Pairing with a Bluetooth Device: Ensure earpieces are charged and powered off. Open the charging box; the earpieces will enter pairing mode (LEDs flash white and blue alternately). Turn on Bluetooth on your device and select 'Philips TAT1209'. For subsequent pairing, turn on Bluetooth and open the charging box; earpieces will auto-reconnect.

Using the Earpieces: Power On/Off: Open charging box to power on; close charging box to power off. Music Control: Double tap right earpiece to play/pause. Triple tap right earpiece for next track. Triple tap left earpiece for previous track. Long press right earpiece for volume up, left for volume down. Tap and hold left earpiece for dynamic bass. Call Control: Single tap to pick up/hang up. Double tap to hang up/reject. Voice Assistant: Continue touching right earpiece after beep to trigger.

Troubleshooting and error codes

Problem	Solution
My Bluetooth earpieces do not turn on.	The battery level is low. Charge the earpieces.
I cannot pair my Bluetooth earpieces with my Bluetooth device.	The Bluetooth is disabled. Enable the Bluetooth feature on your Bluetooth device and turn on the Bluetooth device before you turn on the earpieces.
Pairing does not work.	Put both earpieces into charging box. Make sure you have disabled the Bluetooth function of any previously connected Bluetooth devices. On your Bluetooth device, delete "Philips TAT1209” from the Bluetooth list. Pair your earpieces (see ‘Pair the earpieces with your Bluetooth device for the first time' on page 7).
The Bluetooth device cannot find the earpieces.	The earpieces may be connected to a previously paired device. Turn off the connected device or move it out of range. Pairing may have been reset or the earpieces have been previously paired with another device. Pair the earpieces with the Bluetooth device again as described in the user manual. (see 'Pair the earpieces with your Bluetooth device for the first time' on page 7).
My Bluetooth earpieces are connected to a Bluetooth stereo-enabled mobile phone, but music only plays on the mobile phone speaker.	Refer to the user manual of your mobile phone. Select to listen to music through the earpieces.
The audio quality is poor and a crackling noise can be heard.	The Bluetooth device is out of range. Reduce the distance between your earpieces and Bluetooth device, or remove obstacles between them. Charge your earpieces.
The audio quality is poor when streaming from a mobile phone is very slow or streaming does not work at all.	Make sure your mobile phone not only supports (mono) HFP but also supports A2DP and is BT4.0x (or higher) compatible (see ‘Technical data’ on page 11).
