Introduction
Thank you for purchasing this television set. This handbook has been designed to help you install and operate your TV set. We would strongly recommend that you read it thoroughly. We hope our technology meets entirely with your satisfaction.

Table of Contents

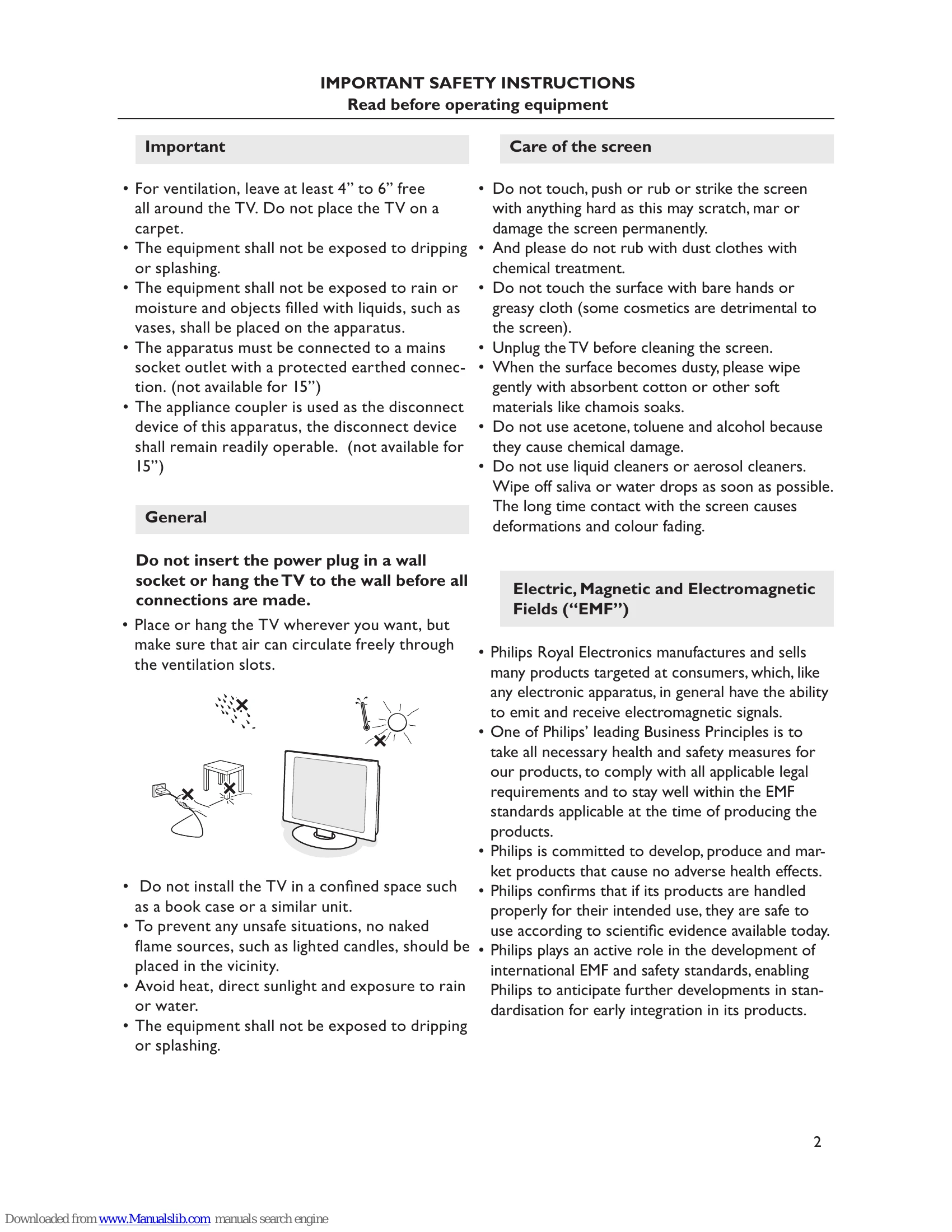

Important safety information
Installation
Presentation of the LCD Television
The keys on the TV set
Remote control keys
Installing your television set
Quick installation
Manual store
Channels setting
Other settings in the Install menu
Operation
Picture settings
Sound settings
Features settings
Screen Formats
Using in PC monitor mode
Connecting Peripheral equipment
Bottom connections
Side connections
HDMI
PC
Practical information
Tips
Glossary

Recycling
The materials used in your set are either reusable or can be recycled. To minimise environmental waste, specialist companies collect used appliances and dismantle them after retrieving any materials that can be used again (ask your dealer for further details).

Troubleshooting and error codes

Tips	Description
Poor reception	The proximity of mountains or high buildings may be responsible for ghost pictures, echoing or shadows. In this case, try manually adjusting your picture: see Finetune (p.7) or modify the orientation of the outside aerial. If you are using an indoor aerial, reception may be difficult in certain conditions. You can improve reception by rotating the aerial. If the reception remains poor, you will need to use an external aerial.
No picture	Have you connected the aerial socket properly? Have you chosen the right system? (p.7). Poorly connected euroconnector cables or aerial sockets are often the cause of picture or sound problems (sometimes the connectors can become half disconnected if the TV set is moved or turned). Check all connections.
No sound	If on certain channels you receive a picture but no sound, this means that you do not have the correct TV system. Modify the System setting (p.7). The amplifier connected to the TV does not deliver any sound? Check that you have not confused the audio output with the audio input.
How to switch TV/PC mode?	Press AV key on remote control and select PC mode in Source List. (p.12)
PC mode don't work?	First of all, you must connect your computer to VGA jack on the back of TV and adjust to best resolution. For laptop user, please press "Fn” + “CRT/LCD" buttons to switch the screen to TV. Check that you have configured the computer on a compatible display resolution (see p.12).
Remote control	The TV set does not react to the remote control; the indicator on the set no longer flashes when you use the remote control? Replace the battery.
Standby	If the set receives no signal for 30 mins, it automatically goes into standby mode. To save power, your set is fitted with components that give it a very low power consumption when in standby mode (less than I W).
Cleaning the set	Only use a clean, soft and lint-free cloth to clean the screen and the casing of your set. Do not use alcohol-based or solvent-based products.
Still no results?	Disconnect the mains plug of the TV for 30 seconds then reconnect it. If your TV set breaks down, never attempt to repair it yourself: contact your dealer's after-sales service.
