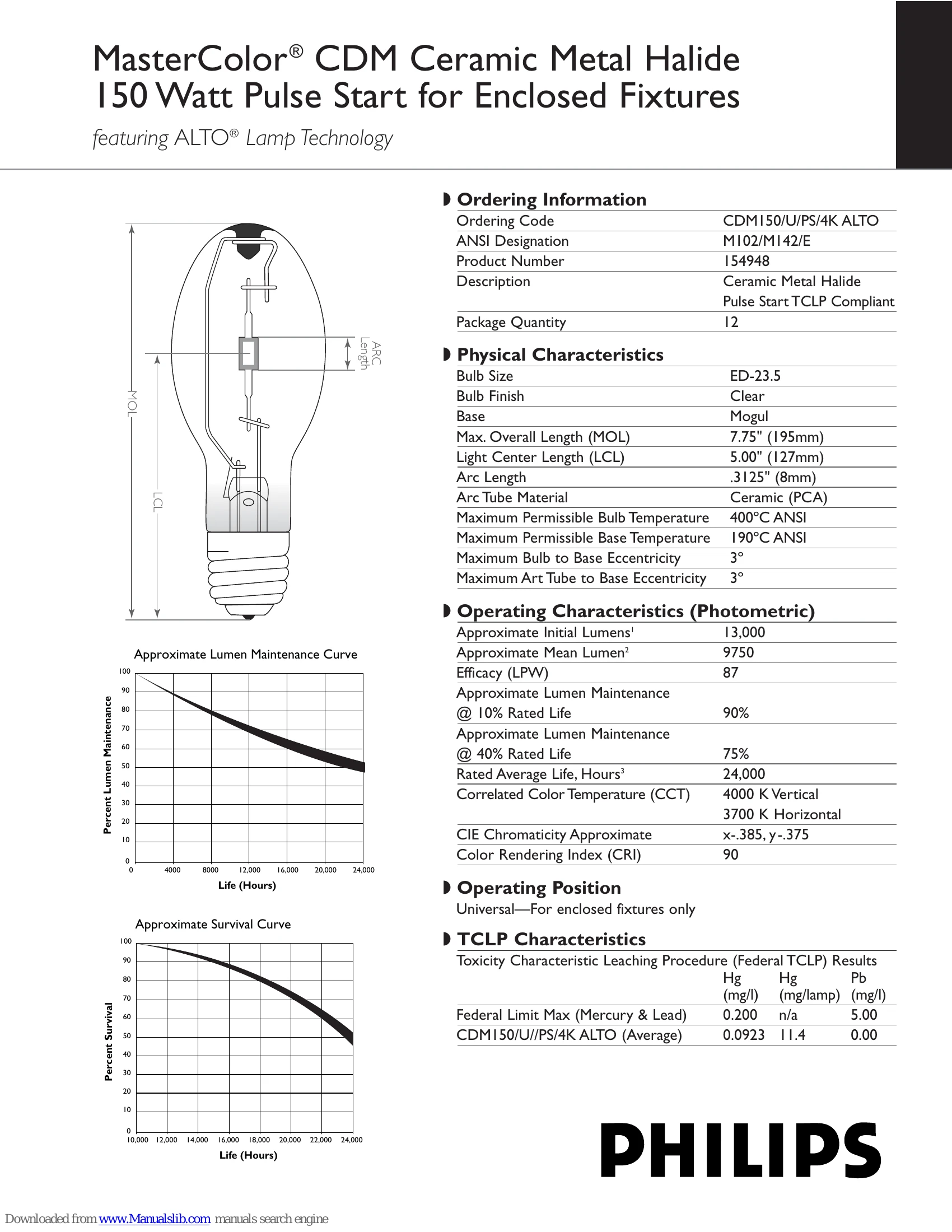

Spec Sheet for CDM150/U/PS/4K ALTO

MasterColor® CDM Ceramic Metal Halide 150 Watt Pulse Start for Enclosed Fixtures

Featuring ALTO® Lamp Technology

This document provides detailed specifications and operating instructions for the Philips CDM150/U/PS/4K ALTO lamp.

Key Features:

• Ordering Information: CDM150/U/PS/4K ALTO, M102/M142/E, 154948, Ceramic Metal Halide, Pulse Start TCLP Compliant.
• Physical Characteristics: ED-23.5 bulb size, Clear finish, Mogul base, 7.75" (195mm) Max. Overall Length, 5.00" (127mm) Light Center Length, .3125" (8mm) Arc Length, Ceramic (PCA) Arc Tube Material.
• Operating Characteristics: 13,000 Approximate Initial Lumens, 9750 Approximate Mean Lumens, 87 Efficacy (LPW). Lumen maintenance at 10% is 90% and at 40% is 75%. Rated average life is 24,000 Hours. Correlated Color Temperature is 4000 K (Vertical) / 3700 K (Horizontal). CRI is 90. Designed for Universal operation in enclosed fixtures only.
• TCLP Characteristics: Compliant with Federal Limit Max (Mercury & Lead) and Average values for Mercury and Lead.
• Electrical Data: 150 Lamp Watts, 95V Lamp Operating Voltage, 1.8A Lamp Operating Current. Designed for use with Pulse Start ballasts.
• Warnings and Cautions: Emphasizes protection against UV radiation, potential arc tube rupture, and proper handling and disposal.
• Operating Instructions: Relamp at or before rated life, shut off power before installation, use in enclosed fixtures, use approved ballasts, periodically inspect outer envelope, allow stabilization time, re-light time for power interruption, and handle with care.
