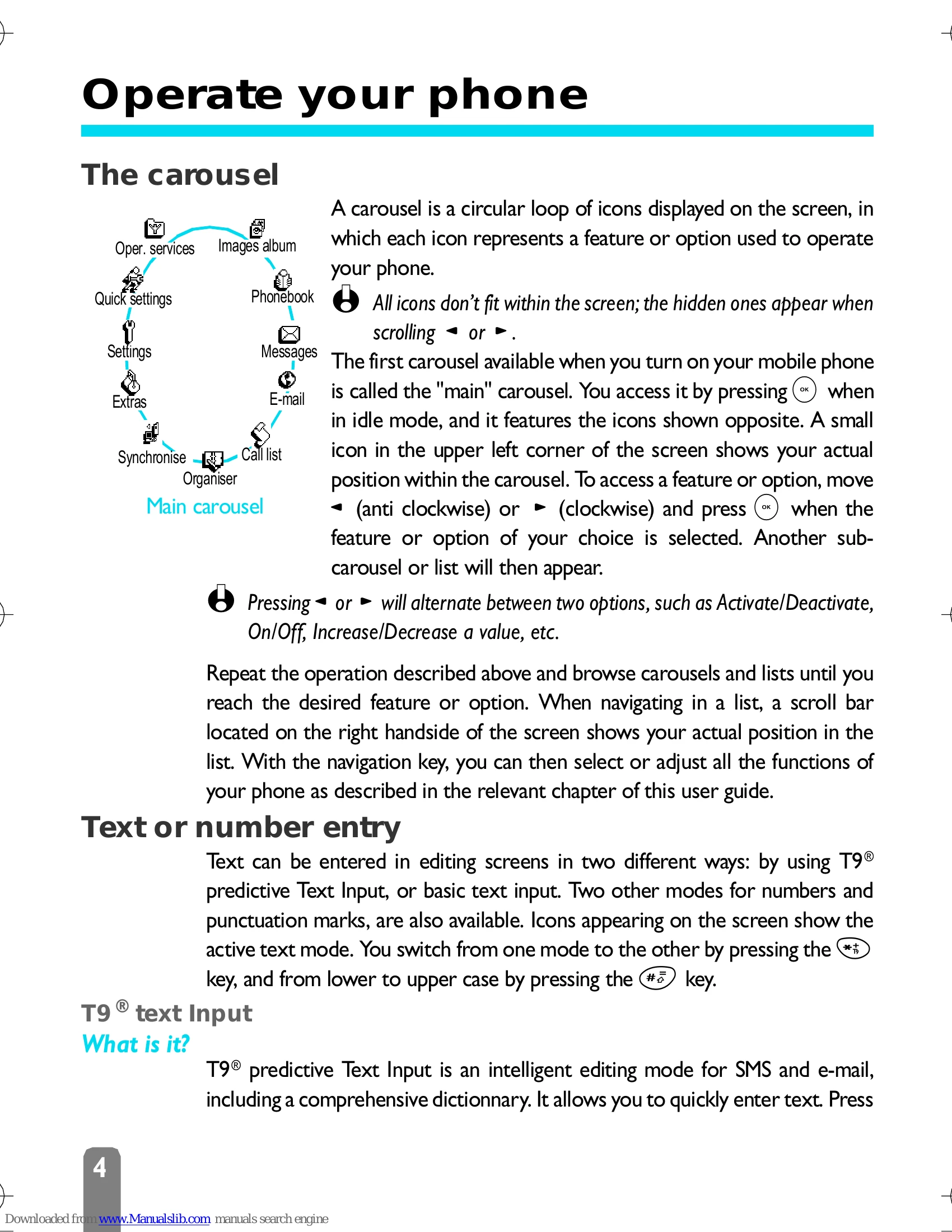

The carousel
A carousel is a circular loop of icons displayed on the screen, in which each icon represents a feature or option used to operate your phone. All icons don't fit within the screen; the hidden ones appear when scrolling ◄ or ►.The first carousel available when you turn on your mobile phone is called the "main" carousel. You access it by pressing ⏎ when in idle mode, and it features the icons shown opposite. A small icon in the upper left corner of the screen shows your actual position within the carousel. To access a feature or option, move ◀ (anti clockwise) or ► (clockwise) and press ⏎ when the feature or option of your choice is selected. Another sub-carousel or list will then appear.
Pressing ◀ or ► will alternate between two options, such as Activate/Deactivate, On/Off, Increase/Decrease a value, etc.
Repeat the operation described above and browse carousels and lists until you reach the desired feature or option. When navigating in a list, a scroll bar located on the right handside of the screen shows your actual position in the list. With the navigation key, you can then select or adjust all the functions of your phone as described in the relevant chapter of this user guide.
Text or number entry
Text can be entered in editing screens in two different ways: by using T9® predictive Text Input, or basic text input. Two other modes for numbers and punctuation marks, are also available. Icons appearing on the screen show the active text mode. You switch from one mode to the other by pressing the ⨯ key, and from lower to upper case by pressing the # key.T9® text Input
What is it? T9® predictive Text Input is an intelligent editing mode for SMS and e-mail, including a comprehensive dictionnary. It allows you to quickly enter text. Press only once on the key corresponding to each letter needed to spell a word: keystrokes input are analysed and the word suggested by T9® is displayed in the bottom of the screen. If several words are available according to the keys used, press ⏎ to browse the list and choose from those proposed by the T9® built-in dictionary (see example below).Troubleshooting and error codes
| PROBLEM | SOLUTION |
|---|---|
| The phone does not switch on | Remove and reinstall the battery (see page 8). Then charge the phone until the battery icon has stopped flashing. Finally, unplug from the charger and try to switch the mobile on. |
| The display shows BLOCKED when you switch on | Somebody tried to use your phone but didn't know the PIN code nor the unblocking code (PUK). Contact your service provider. |
| The ⁂ and – symbols are not displayed | The network connection is lost. Either you are in a radio shadow (in a tunnel or between tall buildings) or you are outside the network coverage area. Try from another place or contact your network operator for assistance/information about the network. |
| The display doesn't respond (or responds slowly) to key pushes | The display responds more slowly at very low temperatures. This is normal and does not affect the operation of the phone. Take the phone to a warmer place and try again. In other cases please contact your phone supplier. |
| Your phone doesn't go to idle screen | Press ⌫ and hold ⌫ or switch off the phone, check that the SIM card and the battery are installed correctly, and switch it on again. |
| Your phone doesn't display the phone numbers of incoming calls | This feature is network and subscription dependent. If the network doesn't send the caller's number, the phone will display Call I instead. Contact your operator for detailed information on this subject. |
| You can't send text messages | Some networks don't allow message exchanges with other networks. Contact your operator for detailed information on this subject. |
| You can't receive and/or store JPEG images | An image may not be accepted by your mobile phone if it is too large, or if it doesn't have the right file format. See page 64 for complete information on this subject. |
| When charging the battery, the battery icon shows no bars and the outline is flashing | Only charge the battery in an environment where the temperature does not go below 0°C (32°F) or above 50°C (113°F). In other cases please contact your phone supplier. |
| You are not sure that you are receiving calls properly | To receive all calls, make sure that none of the features "Conditional call forward" or "unconditional call forward" is activated (see page 34). This network and subscription dependent feature may display one of the following icons: ↳ call forward unconditional to number ↳ call forward unconditional to voice mailbox |
| When attempting to use a feature in the menu, the mobile displays not allowed | Some features are network dependent. They are only available, therefore, if the network or your subscription supports them. Contact your operator for detailed information on this subject. |
| The display shows SIM failure | Check that the SIM card has been inserted in the right position (see page 8). If the problem remains, your SIM card may be damaged. Contact your operator. |
| The display shows IMSI failure | This problem is related to your subscription. Contact your operator. |
| The display shows Insert your SIM card | Check that the SIM card has been inserted in the right position (see page 8). If the problem remains, your SIM card might be damaged. Contact your operator. |
| Your phone doesn't work well in your car | A car contains many metallic parts that absorb electromagnetic waves which can affect the phone's perfomances. A car kit is available to provide you with an external antenna and enables you to phone without handling the handset. You should check with local authorities if you are allowed to phone while driving. |
