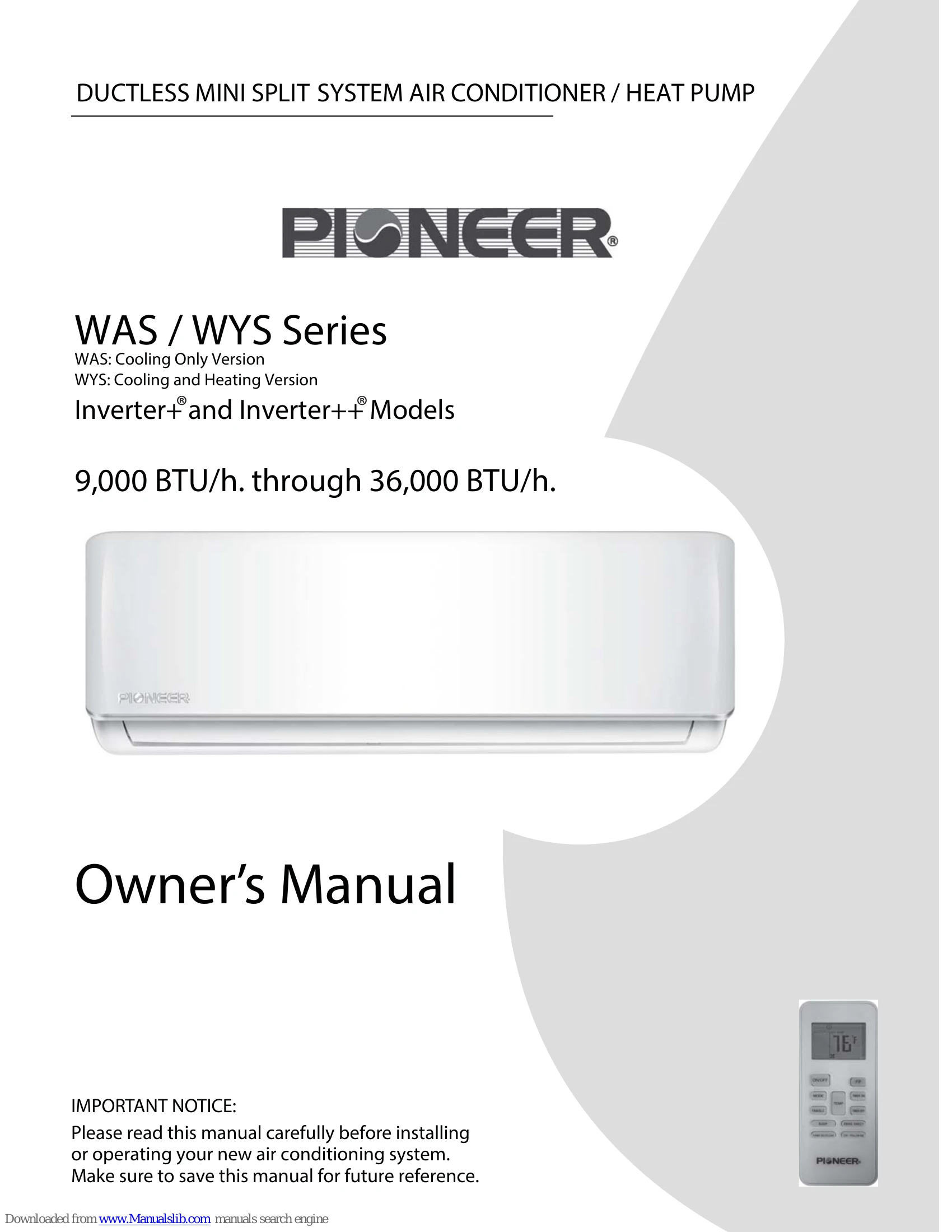

Manual for WAS / WYS Series
Uploaded: Nov. 21, 2025, 7:19 p.m.
Warranty Information
Warranty details are not specified in this document.
Cooling, Heating, and Drying Modes
Optimal performance is achieved within specific temperature ranges. Using the unit outside these ranges may activate safety features and reduce performance.
Operational Temperature Ranges
Standard Models:
- Room Temperature: COOL (17°C-32°C), HEAT (0°C-30°C), DRY (10°C-32°C)
- Outdoor Temperature: COOL (0°C-50°C), HEAT (-15°C-30°C), DRY (0°C-50°C)
Arctic (Low Ambient) Models:
- Room Temperature: COOL (17°C-32°C), HEAT (0°C-30°C), DRY (10°C-32°C)
- Outdoor Temperature: COOL (-15°C-50°C), HEAT (-20°C-30°C), DRY (0°C-50°C)
Optimizing Performance
- Keep doors and windows closed.
- Limit energy usage with TIMER ON and TIMER OFF.
- Do not block air inlets or outlets.
- Regularly inspect and clean air filters.
Other Features
- Auto-Restart: Restarts with previous settings after power loss.
- Anti-mildew: Dries up condensed water to prevent mildew.
- Sleep Operation: Gradually adjusts temperature for energy saving during sleep.
- Manual Operation: Allows operation using the manual control button on the indoor unit in case of remote control failure.
Troubleshooting and error codes
| Issue | Possible Causes | Solution |
|---|---|---|
| Unit does not turn on when pressing ON/OFF button | The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off. | Wait three minutes. |
| The unit changes from COOL/HEAT mode to FAN mode | The unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start operating in the previously selected mode again. | N/A (automatic function) |
| The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating when the temperature fluctuates again. | N/A (normal operation) | |
| The indoor unit emits white mist | In humid regions, a large temperature difference between the room's air and the conditioned air can cause white mist. | N/A (normal in humid conditions) |
| Both the indoor and outdoor units emit white mist | When the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the defrosting process. | N/A (normal during defrost cycle) |
| The indoor unit makes noises | A rushing air sound may occur when the louver resets its position. | N/A (normal) |
| A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit's plastic parts. | N/A (normal due to temperature changes) | |
| Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units. | N/A (normal) | |
| Both the indoor unit and outdoor unit make noises | Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by the refrigerant gas stopping or changing direction. | N/A (normal) |
| Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during operation can cause squeaking noises. | N/A (normal due to temperature changes) | |
| The outdoor unit makes noises | The unit will operate at different sound levels based on its current operating mode and loading. | N/A (normal variation) |
| Dust is emitted from either the indoor or outdoor unit | The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity. | Clean the unit. Cover the unit during long periods of inactivity. |
| The unit emits a bad odor | The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during operation. Heat exchangers may need to be cleaned. The unit's filters have become moldy and should be cleaned. | Clean heat exchangers and filters. |
| The fan of the outdoor unit does not operate | During the defrost mode, the outdoor fan will be stopped. Otherwise check for ice or other debris blocking the fan. | Check for ice or debris. Ensure it is not in defrost mode. |
| Operation is erratic, unpredictable, or unit is unresponsive | Interference from cell phone towers and remote boosters may cause the unit to malfunction. | Try the following:
|
| If problem persists, contact your installer or nearest customer service center. | Provide a detailed description of the malfunction and model number. |
