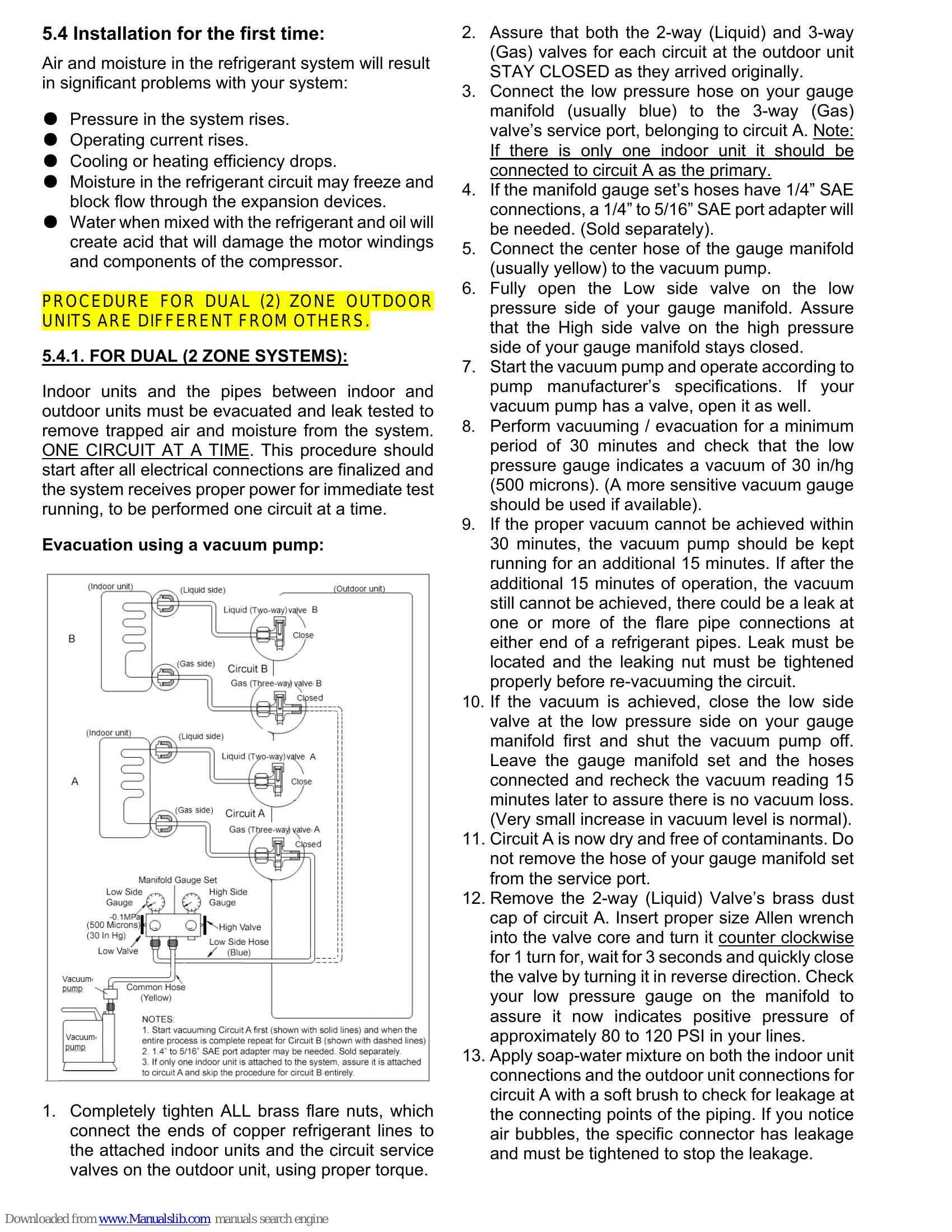

Operation details are described across various sections, including Indoor Unit Combination, Dimension of Outdoor Unit, Refrigerant Cycle Diagram, Installation Details, Electronic Function, and Control and Functions. The manual outlines procedures for installation, including pipe length and elevation, evacuation using a vacuum pump, and adding refrigerant. It also details electronic functions such as various protections, defrosting control, fan control, and electronic expansion valve operation. Capacity request calculation for cooling and heating modes is explained, along with wiring diagrams and troubleshooting guidance.
Troubleshooting and error codes
| Model | Min-Max (Nominal) Capacity | Suggested Combination | Limit |
|---|---|---|---|
| TWO Zone | 12,000~24,000 (18,000) BTU/h | 9+9 | None |
| 9+12 | |||
| 12+12 | |||
| ... | |||
| THREE Zone | 18,000~36,000 (27,000) BTU/h | 9+9 | Maximum 1 piece DUCTED or FLEXMOUNT Indoor unit |
| 9+12 | |||
| 9+18 | |||
| 12+12 | |||
| 12+18 | |||
| 18+18 | |||
| 9+9+9 | |||
| ... | |||
| FOUR Zone | 24,000~48,000 (36,000) BTU/h | 9+18 | None |
| 12+12 | |||
| 12+18 | |||
| 18+18 | |||
| 9+9+9 | |||
| 9+9+12 | |||
| 9+9+18 | |||
| 9+12+12 | |||
| 9+12+18 | |||
| 12+12+12 | |||
| 12+12+18 | |||
| 12+18+18 | |||
| 9+9+9+9 | |||
| 9+9+9+12 | |||
| 9+9+9+18 | |||
| 9+9+12+12 |
