Brand: PIONEER
Category: Home Entertainment System
Document Type: Manual
Language: EN
Manual for HTP-GS1
Uploaded: Nov. 21, 2025, 8:36 p.m.
Warranty Information
Refer to the warranty card provided with your product for details.

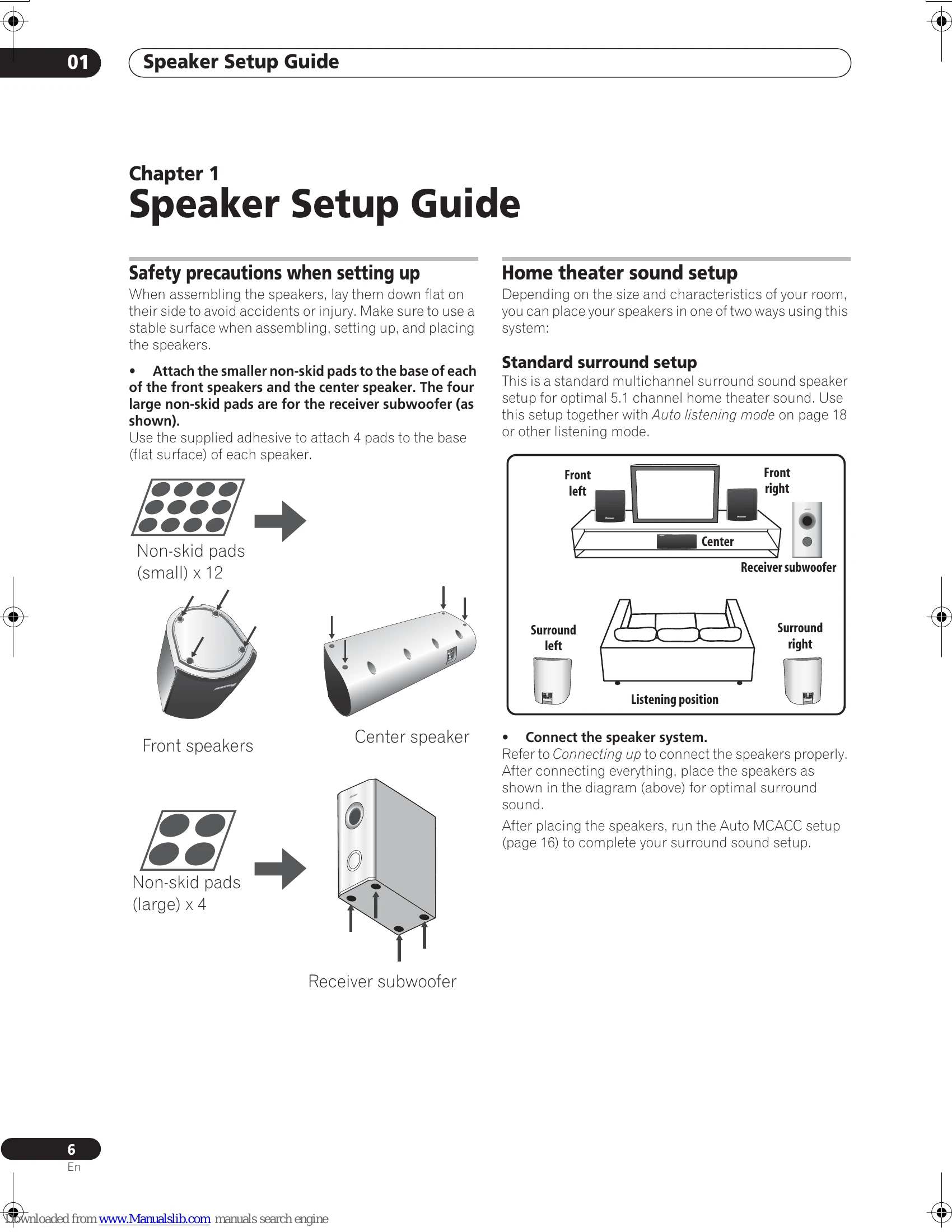

- System Setup: Connect speakers, set up microphone for Auto MCACC, and follow on-screen prompts for optimal surround sound calibration.
- Listening Modes: Select from Auto, Dolby Pro Logic II, Movie, Music, Stereo, Front Surround, and Advanced Surround modes to suit your audio source.
- Tuner Operation: Access FM and AM radio stations, memorize favorites, and use RDS features for program information.
- Sound Adjustment: Fine-tune bass, treble, dialogue enhancement, and utilize Sound Retriever for compressed audio.
- System Settings: Configure sleep timer, display brightness, DTS CD settings, and reset the system to factory defaults.
Troubleshooting and error codes
| Problem | Remedy |
|---|---|
| The power does not turn on, or switches off suddenly (an error message may be displayed at startup). |
Leave the unit plugged in, wait for one minute, then switch back on. Make sure there are no loose strands of wire touching the unit. This could cause the system to shut off automatically. Check that the speakers are connected correctly. Make sure there is enough space for ventilation around the receiver subwoofer. Make sure the voltage of the mains power source is correct for the model. Try reducing the volume level. If the problem persists, take it to your nearest Pioneer authorized service center or your dealer for servicing. |
| No sound is output when an input function is selected. |
Make sure the component is connected correctly (see Connecting auxiliary components on page 26). Turn up the volume. |
| No sound from surround or center speakers. |
Refer to Channel level setting on page 24 to check the speaker levels. Check that you haven't selected the AUTO, STEREO, or VIRTUAL mode (see Listening in surround sound on page 18). Connect the speakers properly (refer to Connecting up). |
| Can't operate using the remote control. |
Replace the batteries (Putting the batteries in the remote control on page 15). Operate within 7 m, 30° of the remote sensor (Using the remote control on page 15). Remove any obstacles or operate from another position. Avoid exposing the remote sensor on the front panel to direct light. For operating the DVD recorder or other Pioneer component connected to the CONTROL OUT jack of this receiver subwoofer, make sure that the control cable and coaxial cable or at least one set of analog audio cables are connected. (page 28) If the receiver subwoofer is connected to a Pioneer plasma display with an SR+ cable, check that the plasma display is switched on. Point the remote control at the plasma display in order to operate the receiver subwoofer. Check that nothing is mistakenly plugged into the CONTROL IN jack. |
