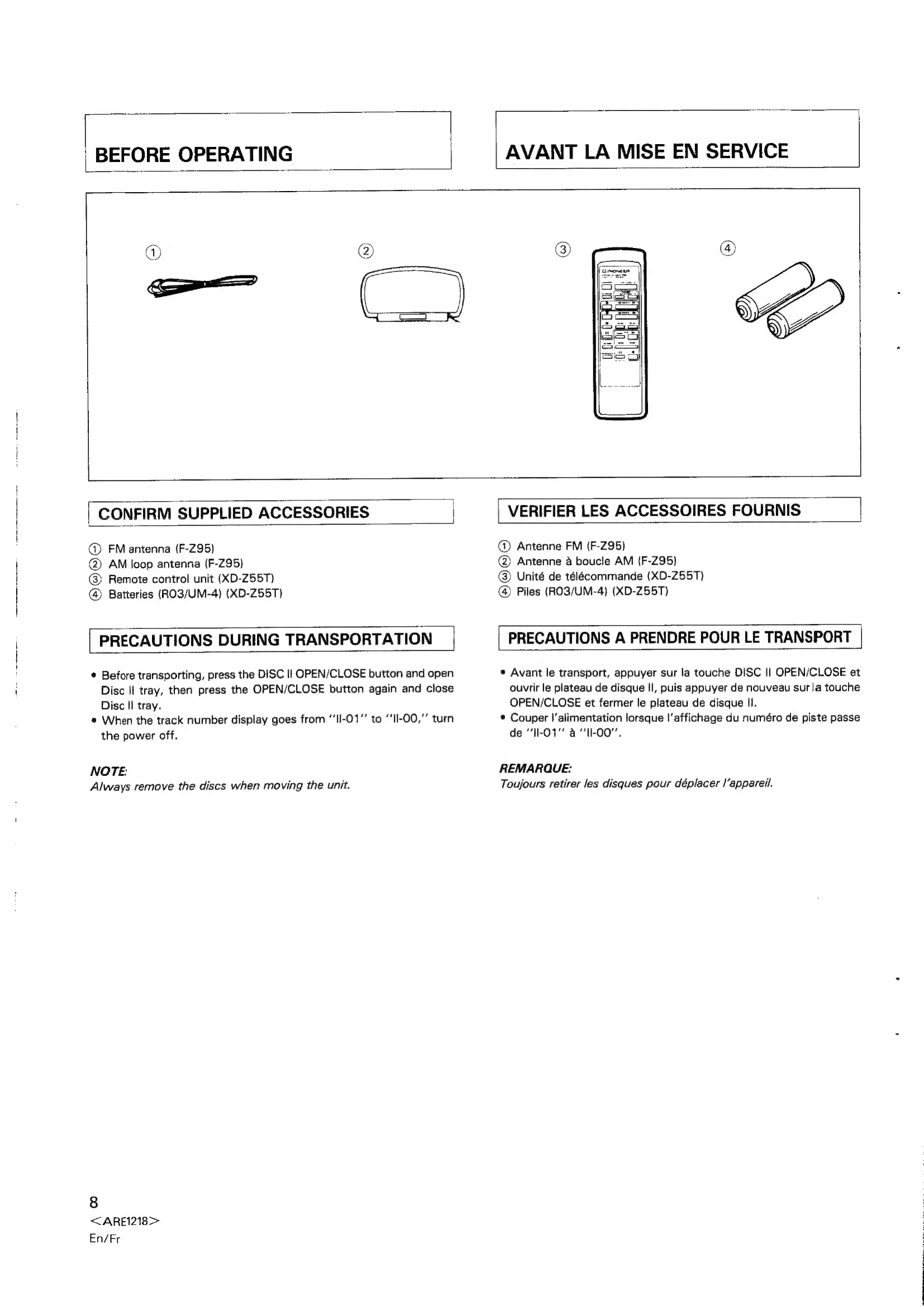

Before Operating: Confirm all supplied accessories are present (FM antenna, AM loop antenna, remote control unit, batteries). Follow precautions during transportation, such as pressing DISC II OPEN/CLOSE and turning off the power when the track number display changes from "II-01" to "II-00." Always remove discs when moving the unit.
Connections: Plug the power cord into the wall socket only after all connections are complete. Set up the tuner on the amplifier, then connect it. Connect the FM and AM antennas to the tuner. Place the turntable on the tuner and connect its cords to the amplifier. Use the "LD/VCR" jacks for audio output connections. Connect speaker cords to the amplifier and speakers, ensuring correct polarity. For surround speakers, connect RCA phono type cords with a nominal impedance of 16 ohms or more. Finally, connect the power cord to the AC wall socket.
Troubleshooting and error codes
| Cassette deck and amplifier sections | Symptom | Cause | Remedy |
| Power switch is on but power does not turn on. | • AC cord is unplugged. | • Plug power cord into wall socket. | |
| No sound from speakers. | • Volume is turned all the way down. • Speaker cords are disconnected. • Speaker cords are connected with vinyl insulation still on. • Input selector is not set to your desired listening source. • Connection cords are not connected or are damaged. |
• Raise volume knob setting. • Connect speaker cords correctly. • Strip vinyl insulation from speaker wire tips before connecting. • Select correct input selector. |
|
| Sound from only one speaker. | • One of the speaker cords is disconnected or damaged. | • Connect correctly or replace with good quality cord. | |
| Tape does not move. | • Deck is in pause mode. • Cassette inserted incorrectly. |
• Press PAUSE or PLAY button. • Put cassette properly in holder. |
|
| No sound heard from tape. | • Input selector not set to TAPE. • Playing unrecorded tape. |
• Set to TAPE. • Play a recorded tape. |
|
| Tape sounds unclear, not loud enough. | • Dirty head. | • Clean head. | |
| Can not record. | • Erasure prevention tabs are broken off. | • Apply adhesive tape over tab holes. | |
| Can not copy tape. | • Dirty head. | • Clean head. | |
| Treble tones unclear. | • Dirty head. | • Clean head. | |
| Treble tones too strong. | • DOLBY NR system is ON when listening to a tape recorded without DOLBY NR. • Tape recorded with DOLBY NR but played without. |
• Use same noise reduction system for playback as for recording. (Do not play tapes recorded with different NR systems.) • Play in same condition as recording. (Turn on DOLBY NR switch for recorded tapes with DOLBY NR.) |
|
| Strange sounds heard (or recorded from) tape, CD, or radio. | • TV is on. • This unit is too close to TV. |
• Turn off TV. • Move TV away until interference stops. • Copy using NORMAL instead of HIGH speed. |
|
| Disc tray is not expelled when OPEN/CLOSE button is pressed. | • POWER switch of amplifier section is STANDBY. | • Press POWER switch ON. | |
| When playback is started, it stops immediately. | • Disc is loaded upside down. • Contaminated disc, etc. |
• Load the disc correctly with the label side UP. Press () or (II) button. • Clear the fog from the disc and then play it again. |
|
| Pauses or stops playback. | • Incorrect operation of amplifier section. | • Check the settings of amplifier switches and sound volume controls. | |
| No sound. | • Player is in pause mode. • Interference is being picked up from a TV set. |
• Press (►) or (II) button. • Switch OFF TV set, or move player away from TV set. |
|
| Sound is distorted, noise is output. | • TV is on. • This unit is too close to TV. |
• Turn off TV. • Move TV away until interference stops. |
|
| With certain discs, loud noise is produced, or play stops. | • Disc is badly scratched or warped. • Disc is extremely dirty. |
• Replace the disc. • Clean the disc. |
