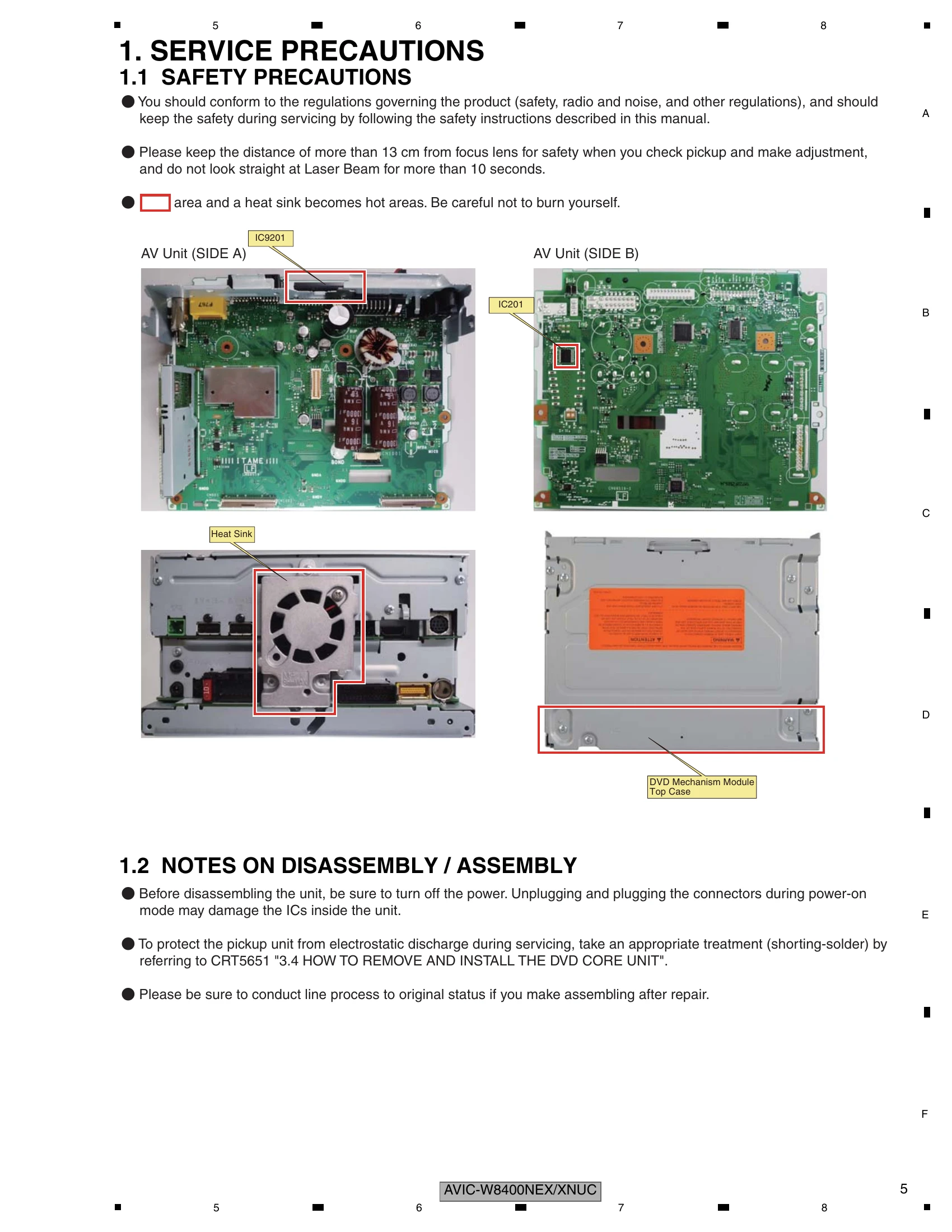

- **EJECT LOCK MODE:** Simultaneously press and hold [HOME] and [EJECT] buttons, then reset the product or turn ACC ON. Buttons flash yellow when ON, green when OFF. Wait 35 seconds after turning OFF ACC before turning +B OFF.
- **Hard Key Reset:** Short press of the reset button initiates a software reset. Long press (2+ seconds) initiates a forced hardware reset.
- **Touch Panel Operation:** Capacitive touch panel response can be affected by switching power supply noise. Ensure good grounding or use a linear power supply.
- **Vehicle Product Use:** When using home products in a vehicle, connect GND to the unit's sides and VGND of the input. A 0.5A fuse is recommended for the wiring.
Troubleshooting and error codes
| No. | Procedures | Item to be confirmed |
|---|---|---|
| 1 | Confirm whether the customer complain has been solved. If the customer complain occurs with the specific media, use it for the operation check. | The customer complain must not be reappeared. Display, video, audio and operations must be normal. |
| 2 | Flap-mecha Check the operation of the flap mechanism. | The flap mechanism operation must be smooth without making the noise and scratches. |
| 3 | DVD Measure playback error rates at the innermost and outermost tracks by using the test mode with the following disc. DVD Test Disc (TDV-582) | Deterioration of mecha-drive can be checked. The error rate must be less than the threshold value. (Refer to the chapter of DIAGNOSIS for the threshold value.) |
| 4 | DVD Play back a DVD. (Menu operation; Title/chapter search) | Display, video, audio and operations must be normal. |
| 5 | CD Play back a CD. (Track search) | Display, audio and operations must be normal. |
| 6 | FM/AM Tuner Check FM/AM Tuner action. (Seek, Preset) Switch band to check both FM and AM. | Display, audio and operations must be normal. |
| 7 | USB Check USB-memory action. (Seek, Preset) | Display, video, audio and operations must be normal. |
| 8 | GPS positioning Connect GPS antenna to the product, and check whether the current location is correct. | Current location must be correct. Display and operations must be normal. |
| 9 | Gyro action On "3D Calibration Status", check whether the Gyro Sensor works well by moving the front face of the product from left to right and up and down. | Gyro-sensing, display and operations must be normal. |
| 10 | Map display Touch-panel operation Check functions of map scale change and map scroll. | Display and operations must be normal. |
| 11 | Delete data added during the operating check. Check whether no media (CD etc.) is inside the product. | Make sure to delete data added during the operating check. The media used for the operating check must be ejected. |
| 12 | Appearance check. | No scratches or dirt on its appearance after receiving it for service. |
