Brand: PIONEER
Category: Plasma Display
Document Type: Parts/Service
Language: EN

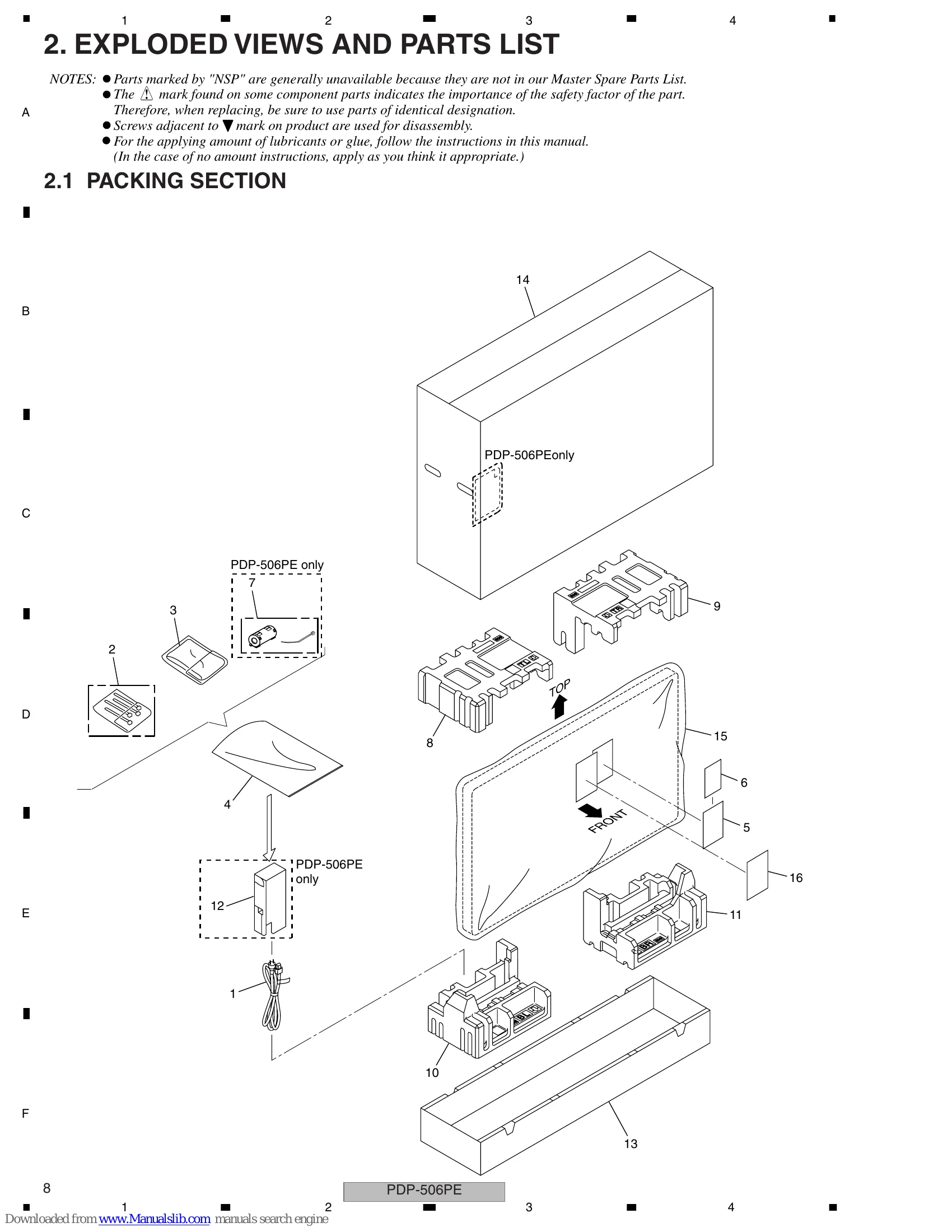

Parts/Service for PDP-506PE
Uploaded: Nov. 21, 2025, 7:47 p.m.
Manual Publish Date: 2005-09-01
Warranty Information
Warranty information not explicitly stated as a period.
Refer to "Important Check Points for good servicing" for details on product safety, adjustments, lubricants, glues, replacement parts, cleaning, and shipping mode.
Troubleshooting and error codes
| Item | Trouble | Indication | Measure |
|---|---|---|---|
| LED Indicators | Power Indicator ON | - | Check Power Supply Unit. |
| - | Power Indicator OFF | - | Check AC power cord, AC inlet, power switch, fuse. |
| - | Remote control sensor not working | - | Check remote control sensor. |
| - | No sound | - | Check HD AUDIO ASS'Y. |
| - | No picture | - | Check HD DIGITAL ASS'Y, PDP-506PE Assy. |
| - | Picture distortion | - | Check HD DIGITAL ASS'Y, 50 SCAN A/B ASSYS, 50 X/Y DRIVE ASSYS. |
| - | No response to power switch | - | Check power switch. |
