Brand: PIONEER
Category: Plasma Display
Document Type: Parts/Service
Language: EN

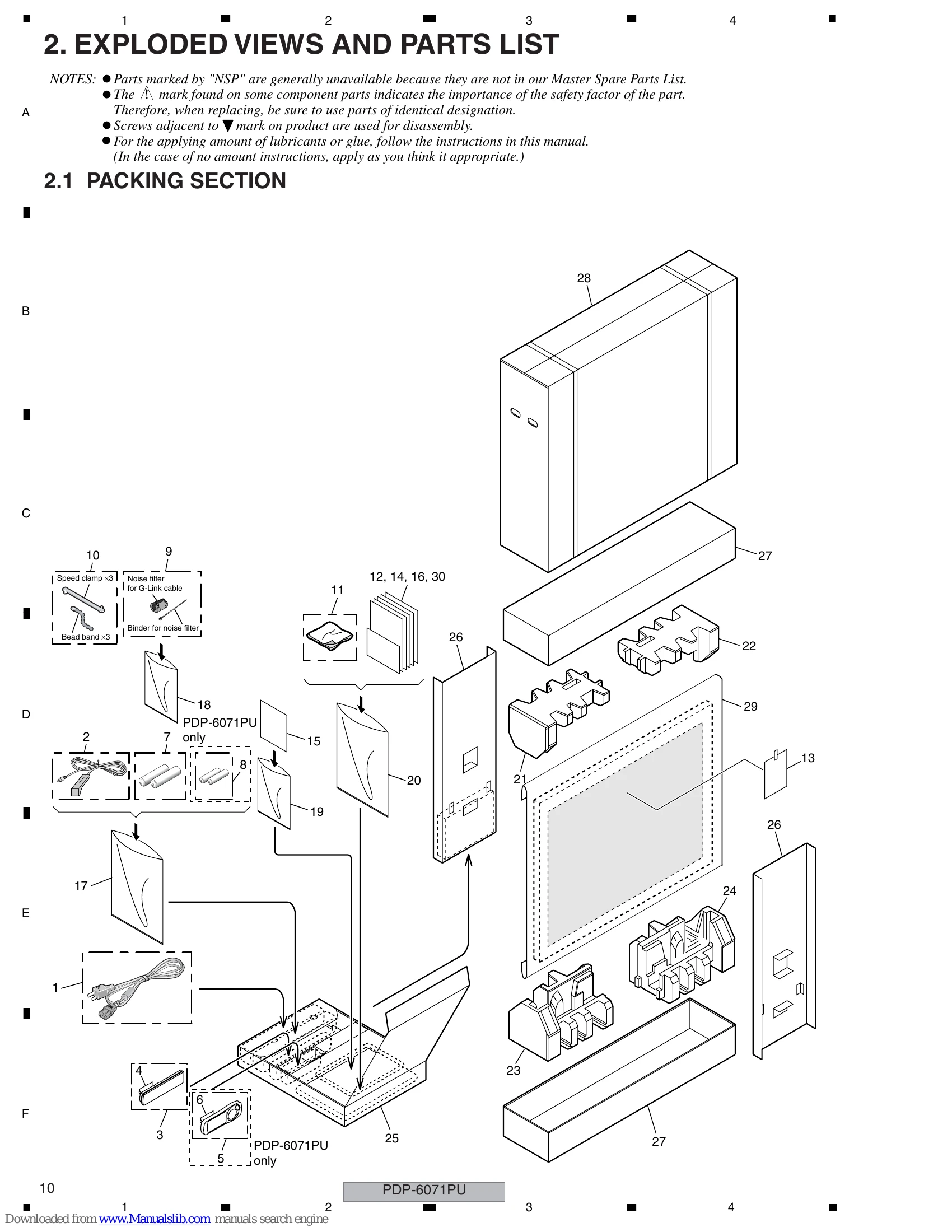

Parts/Service for PDP-6071PU
Uploaded: Nov. 21, 2025, 7:37 p.m.
Manual Publish Date: 2006-09-01
1. Product Safety
- Conform to product regulations and maintain a safe servicing environment.
- Use specified genuine parts for repair.
- Do not perform modifications without proper instructions.
- Ensure proper soldering and that screws are tightly fastened.
- Check that all connectors are correctly inserted and wiring cables are in their original state.
- Ensure no screws or solder debris remain inside the product.
- Inspect power cords for damage and spark traces on the power plug.
- Maintain a safe environment during servicing.
- Perform optimum adjustments and confirm characteristics within specification.
- Use specified lubricants and adhesives, applying the proper amount.
- Proper cleaning is required for parts like optical pickups and tape deck heads to restore performance.
- Set shipping mode or install shipping screws before shipment to protect the product from transit damage.
Troubleshooting and error codes
| Name | Part No. | Remarks |
|---|---|---|
| Cleaning liquid | GEM1004 | Used to fan cleaning. |
| Cleaning paper | GED-008 | Refer to "2.4 CHASSIS SECTION (1/2). |
