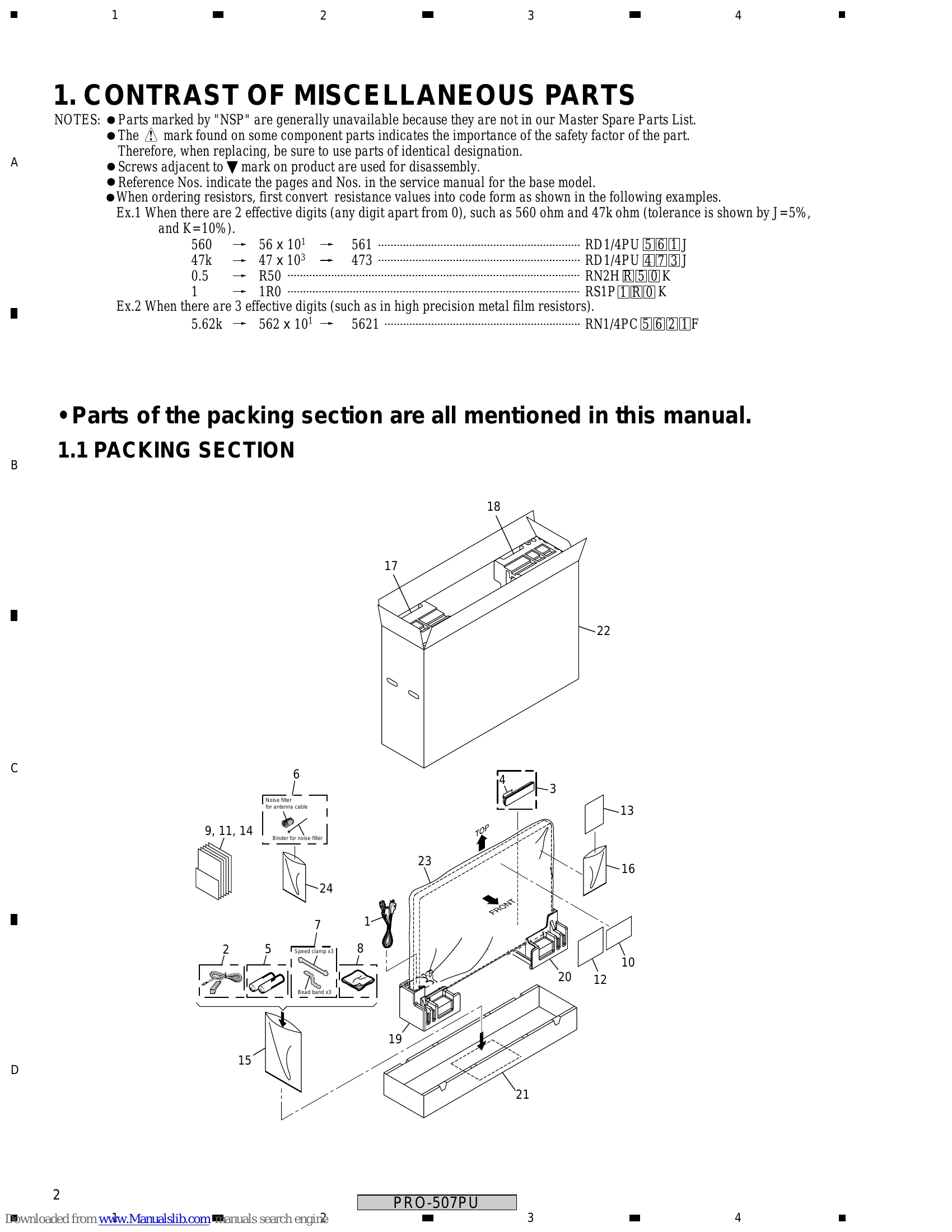

Warranty Information

Refer to the "Warranty Card" (NSP 13) for details.

Network Operation Failure:

  • Check "Home Media Gallery" selection and display.
  • Verify network server name display and selection.
  • Ensure network server directory is displayed.
  • Confirm correct network cable connection.
  • Check if target folder/file is shared on the server.
  • Verify IP address settings.
  • Try other content if playback fails.
  • If issues persist, check for network restrictions or consider HNM ass'y defect.

USB Operation Failure:

  • Check "Home Media Gallery" selection and display.
  • Verify USB device name and directory display.
  • Confirm USB cable insertion.
  • Ensure USB device is supported (Mass Storage Class).
  • Try a card reader if using a digital camera.
  • Check internal USB cable and USB bus-power wire connections.
  • If issues persist, consider HNM ass'y defect.

Troubleshooting and error codes

Symptom Troubleshooting Steps
Network operation failure
  • Check if "Home Media Gallery" is selectable.
  • Verify network server name and directory display.
  • Confirm network cable and IP settings.
  • Try other content if playback fails.
  • Check server for restrictions or HNM ass'y for defects.
USB operation failure
  • Check "Home Media Gallery" selection and display.
  • Verify USB device name and directory.
  • Confirm USB cable connection and device support (Mass Storage Class).
  • Check internal USB cable and power wire.
  • Consider HNM ass'y defect if issues persist.
"Home Media Gallery" does not work at all!
  • Wait for "Home Media Gallery" to become selectable after power-on.
  • Check connections between MAIN and HNM ass'y (CN7851/CN4017, CN7901/CN4016).
  • Check +5V power supply for HNM ass'y.
  • Check UART communication between MAIN and HNM ass'y.
  • Check FET transistor switch (Q4102) for HNM power supply in MAIN ass'y.
