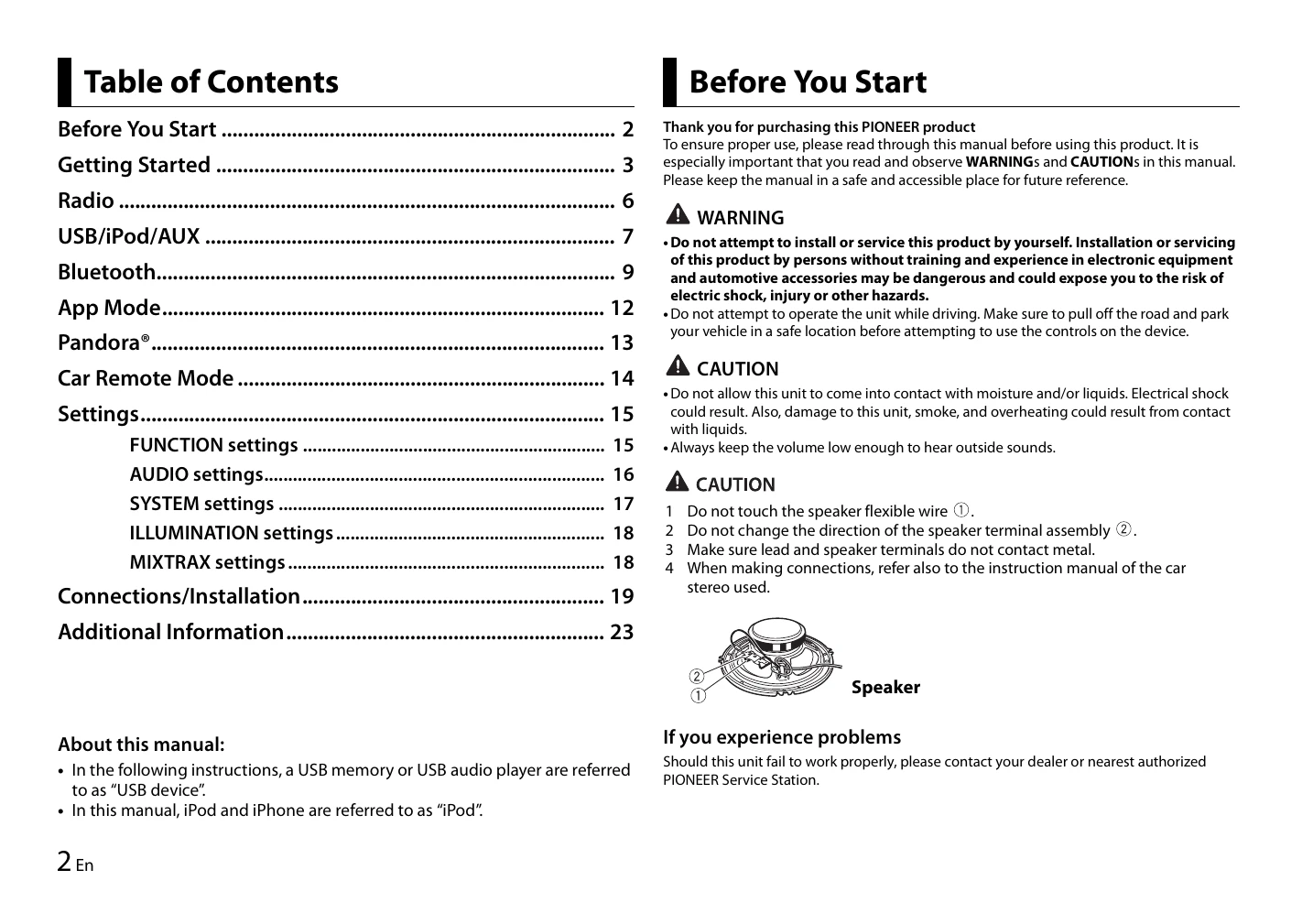

Manual for MXT-X386BT
Uploaded: Nov. 21, 2025, 8:15 p.m.
Warranty Information
None
Basic Operation
Power On/Off: Press SRC/OFF to turn on, press and hold SRC/OFF to turn off.
Volume: Turn the M.C. dial.
Source Selection: Press SRC/OFF repeatedly.
Display Information: Press DISP/DISP OFF repeatedly.
Answering Call: Press .
Ending Call: Press .
Frequently Used Operations
| Purpose | Head Unit | Remote Control |
|---|---|---|
| Turn on the power | Press SRC/OFF | Press SRC |
| Turn off the power | Press and hold SRC/OFF | Press and hold SRC |
| Adjust the volume | Turn the M.C. dial | Press VOLUME +/- |
| Select a source | Press SRC/OFF repeatedly | Press SRC repeatedly |
| Change display information | Press DISP/DISP OFF repeatedly | Press DISP repeatedly |
Troubleshooting and error codes
| Troubleshooting | Solution |
|---|---|
| The display automatically returns to the normal display. | → No operations have been made for about 30 seconds. - Perform an operation. |
| The repeat play range changes unexpectedly. | → Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. - Select the repeat play range again. |
| A subfolder is not played back. | → Subfolders cannot be played when [FLD] (folder repeat) is selected. - Select another repeat play range. |
| The sound is intermittent. | → You are using a device, such as a cellular phone, that may cause audible interference. - Move electrical devices that may be causing the interference away from the unit. |
| The sound from the Bluetooth audio source is not played back. | → There is a call in progress on a Bluetooth-connected cellular phone. - The sound will be played back when the call is terminated. → A Bluetooth-connected cellular phone is currently being operated. Stop using the cellular phone. → The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone. - Make a Bluetooth connection between the unit and the cellular phone again. |
| AMP ERROR | → This unit fails to operate or the speaker connection is incorrect. → The protective circuit is activated. Check the speaker connection. -Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance. |
| NO XXXX (NO TITLE, for example) | → There is no embedded text information. - Switch the display or play another track/file. |
| USB device/iPod FORMAT READ | → Sometimes there is a delay between the start of playback and when you start to hear any sound. - Wait until the message disappears and you hear sound. |
| NO AUDIO | → There are no songs. - Transfer the audio files to the USB device and connect. → The connected USB device has security enabled. - Follow the USB device instructions to disable the security. |
| SKIPPED | → The connected USB device contains DRM protected files. - The protected files are skipped. |
| PROTECT | → All the files on the connected USB device are embedded with DRM. - Replace the USB device. |
| N/A USB | → The connected USB device is not supported by this unit. - Disconnect your device and replace it with a compatible USB device. |
| HUB ERROR | → The USB device connected via a USB hub is not supported by this unit. - Connect the USB device directly to this unit using a USB cable. |
| CHECK USB | → The USB connector or USB cable has short-circuited. - Check that the USB connector or USB cable is not caught in something or damaged. → The connected USB device consumes more than maximum allowable current. - Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. → The iPod operates correctly but does not charge. - Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPod and reconnect. |
| ERROR-19 | → Communication failed. - Perform one of the following operations, then return to the USB source. • Turn the ignition switch OFF and back to ON. • Disconnect the USB device. • Change to a different source. → iPod failure. - Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it. |
| ERROR-23 | → USB device was not formatted properly. - Format the USB device with FAT12, FAT16 or FAT32. |
| ERROR-16 | → The iPod firmware version is old. Update the iPod version. → iPod failure. - Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it. |
| STOP | → There are no songs in the current list. - Select a list that contains songs. |
| NOT FOUND | → No related songs. - Transfer songs to the iPod. |
| Bluetooth device ERROR-10 | → The power failed for the Bluetooth module of the unit. - Turn the ignition switch OFF and back to ACC or ON. |
| Pandora ERROR-19 | → Communication failed. - Disconnect the cable from the device. Once the device's main menu is displayed, reconnect the device and reset it. |
| START UP APP | → The Pandora application has not started running yet. - Start up the Pandora application. |
| INOPERABLE | → The operation was disabled. - Run the same command for another track. |
| TRY LATER | → Unable to save thumb rating. → Unable to save BookMark. → Unable to add station. - Try again later. |
| MAINTENANCE | → Pandora system is undergoing maintenance. - Try again later. |
| SKIP LIMIT | → Due to music licensing restrictions, Pandora limits the total number of skips per hour. - Wait until Pandora allows you to skip again. |
| UPDATE APP | → This version of the Pandora application is not supported. - Connect a device that has a compatible version of the Pandora application installed. |
| LOGIN ERROR | → Your Pandora account is not logged in. - Disconnect the cable from the device, and log in to your Pandora account. Then reconnect the device. |
| CHECK DEVICE | → Device error message displayed in the Pandora application. - Check the connected device. |
| PLEASE CREATE A STATION ON THE PHONE | → No station found. - Create a station in the Pandora application on your connected device. |
| SELECT STN | → No station selected. - Select a station. |
| NO BT DEVICE GO TO BT MENU TO REGISTER | → No Bluetooth device found. - Connect the unit and the device via Bluetooth (page 9). |
| CONN. FAILED PRESS BAND KEY TO RETRY | → Bluetooth connection failed. - Press BAND/ to make a connection again. |
| CHECK APP PRESS BAND KEY TO RETRY | → Connection to the Pandora application failed. - Press BAND/ to make a connection again. |
| DISCONNECTED PRESS BAND KEY TO RETRY | → Bluetooth connection lost. - Press BAND/ to make a connection again. |
| STATION FULL | → A new station cannot be added. Delete an old station to open a spot for a new one. |
| CAN.T DELETE | → The station could not be deleted. Run the same command for another station. |
| NO NETWORK | → The connected device is out of area. - Connect the device to a network. |
| NO SERVICE IN THIS COUNTRY | → The connected device is out of area. - Connect the device to a network. |
| STN DELETED | → The operation was disabled. - Run the same command for another station. |
| Apps NO BT DEVICE GO TO BT MENU TO REGISTER | → No Bluetooth device found. - Connect the unit and the device via Bluetooth (page 9). |
