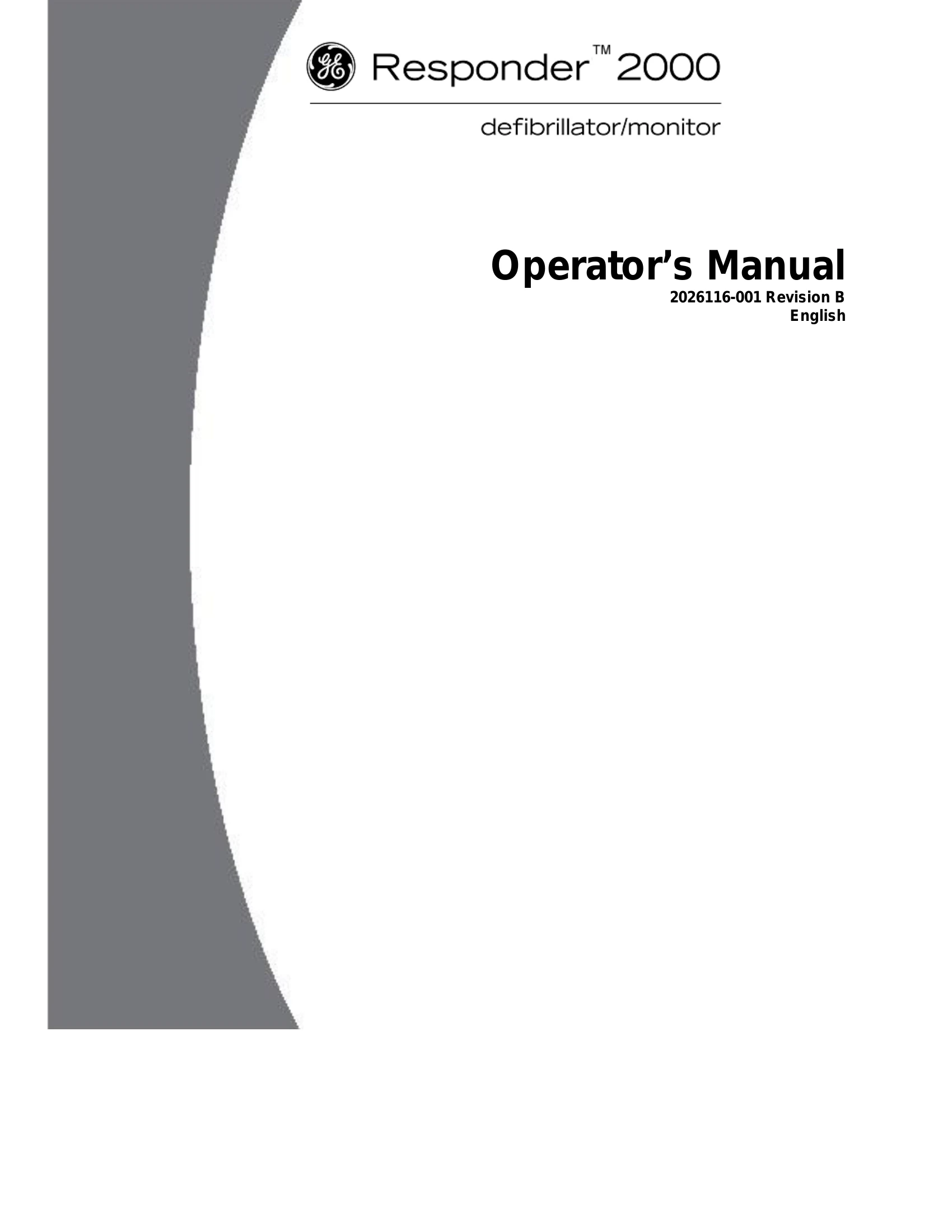

Manual for 2000
Uploaded: Nov. 21, 2025, 6:25 p.m.
Warranty Information
The warranty is void upon unauthorized disassembly or service of the Responder 2000.
Responder 2000: Basic Operation
The Responder 2000 is a defibrillator/monitor/pacemaker designed for trained medical personnel. Key operations include:
- Powering On/Off: Use the power button.
- Patient Connection: Connect ECG leads, defibrillation pads, or paddles as appropriate.
- ECG Monitoring: Observe heart rate and rhythm on the display.
- Defibrillation/Cardioversion: Select energy levels and deliver shocks via paddles or pads in manual or semi-automatic modes.
- Pacing: Initiate demand or fixed-rate pacing as needed.
- Settings Configuration: Adjust defibrillation, pacing, and other device settings via the settings menu.
- Printing: Use the built-in printer for event logs or snapshots.
- Maintenance: Regular visual inspections and cleaning are recommended.
Always refer to the operator's manual for detailed instructions and safety precautions.
Troubleshooting and error codes
| Issue | Possible Cause | Solution |
|---|---|---|
| Error Code on Power-On | Device Malfunction | Do not use the Responder 2000. Contact Customer Service with the error code(s). |
| Battery Charger Status Light Blinks Red | Battery Error | Contact Customer Service. |
| Battery Charger Status Light Solid Red | Charger Error | Contact Customer Service. |
| ECG Cable Disconnected | Loose Connection | Reconnect the ECG cable. A warning message will be displayed. |
| Low Battery Warning | Battery Depleted | Replace or recharge the battery. If AC power is lost and battery is low, the unit will power off. |
| PADS SHORTED Message | Improper Pad Placement or Connection | Ensure pads are correctly applied, not touching each other, and are not damaged or expired. Anterior/Posterior placement may help. |
