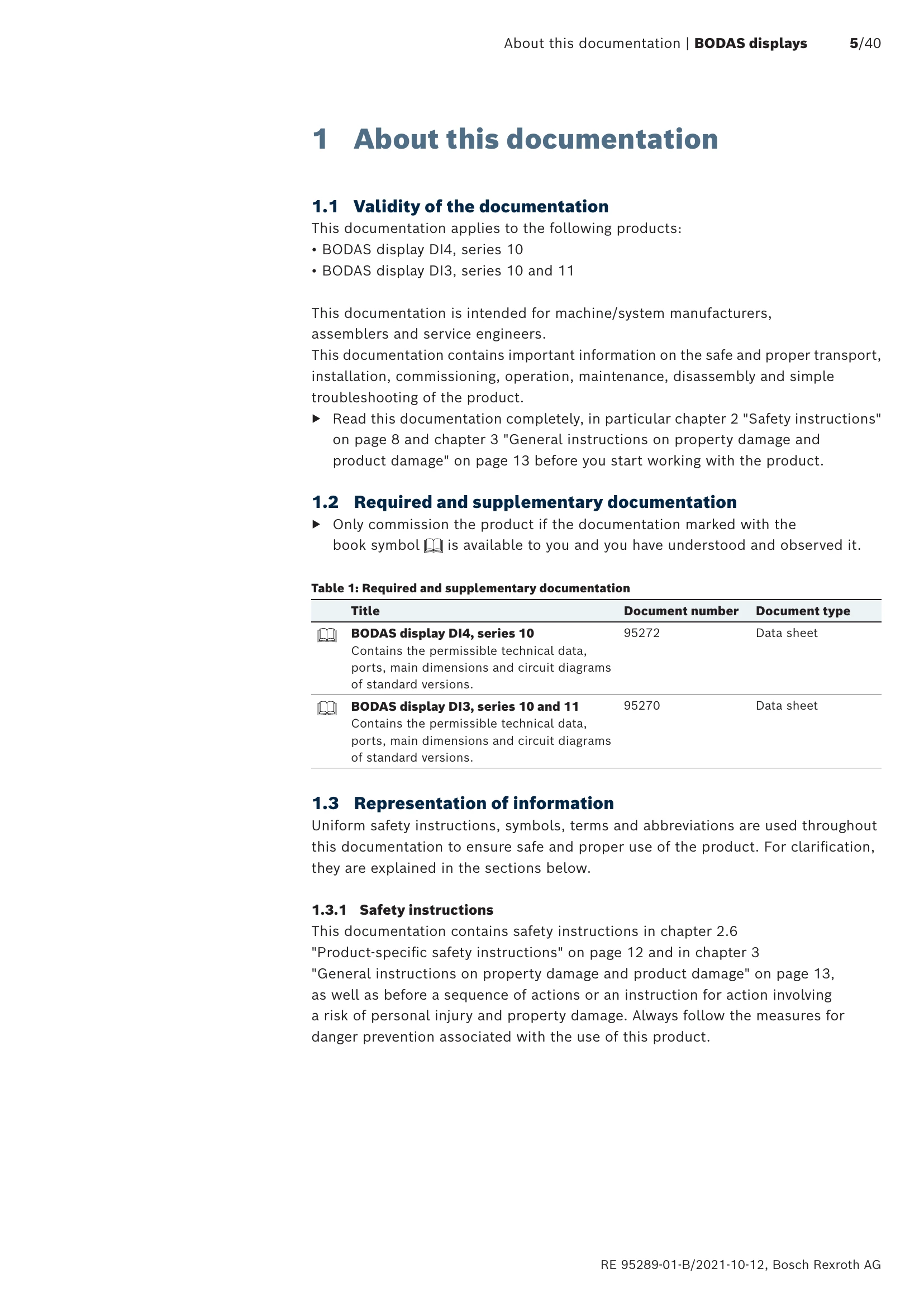

Manual for BODAS displays
Uploaded: April 20, 2026, 8:12 p.m.
Manual Publish Date: 2021-10-12
Warranty Information
The warranty applies exclusively to the delivered configuration and is voided by improper use or modifications.
Operation of BODAS Displays
The BODAS displays DI4 and D13 are designed for use in mobile working machines. They are programmable and can display various information, including process variables, graphic elements, and system statuses.
DI4 Display:
- Freely programmable using CODESYS V3.5 development environment.
- Supports analog, digital, and CAN protocol inputs.
- Can be used for diagnostics and service interfaces.
- Features a 7" high-resolution color display with a 32-bit processor.
D13 Display:
- Freely configurable and programmable using BODAS DCT (Display Configuration Tool).
- Supports alphanumeric and graphic elements, as well as video input.
- Intended for direct connection to 12V or 24V vehicle electrical systems.
- Features a VGA color display with a 32-bit graphics processor.
Both displays are robust, designed for harsh environmental conditions, and require proper installation and configuration to function correctly.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Display not functional | No prior programming or DCT configuration | Program the display using the appropriate software (CODESYS for D14, BODAS DCT for D13). |
| Unexpected reset of display DI4 | Watchdog fault (overloading, device malfunction, power supply loss) | Determine and correct the cause before further use. |
| Safety-critical display failures | Incorrect display configuration | Ensure display configuration does not lead to safety-critical failures. |
| Video signal issues (D13) | Incorrect camera connection or setup | Ensure cameras are connected according to specifications and use the DCT tool for configuration. |
