Manual for 6S Wifi
Uploaded: Aug. 10, 2025, 12:32 a.m.
Warranty Information
Product certified for safety regulations by FCC and Council of Europe (CE).

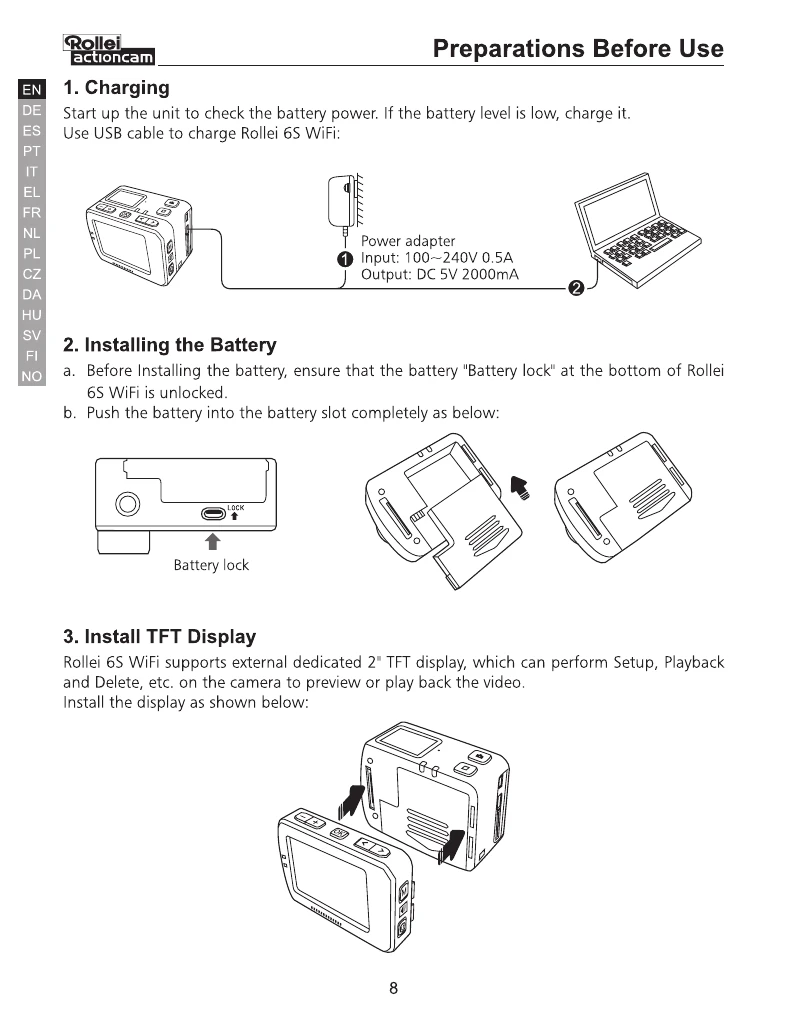

- Charging: Connect the camera to a power source using the USB cable.
- Installing Battery: Ensure the battery lock is unlocked, then insert the battery fully.
- Installing TFT Display: Attach the external TFT display to the camera.
- Memory Card: Insert a TF card (Class 10 recommended) when the camera is off. Remove by pressing the card's center.
- Startup: Turn the power key to "ON". Two red indicators will light up. Press and hold Shutter + Stop buttons for 5s to turn off/on.
- Light Metering: Use central spot metering for high contrast scenes.
Troubleshooting and error codes
| Status | Red indicator | Green indicator | Blue indicator |
|---|---|---|---|
| Startup | Flash once and then Stay on | / | / |
| Video recording | / | Flash slowly | / |
| Audio recording | / | Flash slowly | / |
| Photo shooting | Stay on | Flash once | / |
| Card full | Stay on | Stay on | / |
| Charging (switched off) | Flash slowly | / | / |
| Fully charged (switched off) | Stay on | / | / |
| Low-battery indicator | Flash fast for 5s and then auto power off | / | / |
| Data transmission | Stay on | / | flash slowly |
| Wi-Fi on | Stay on | / | flash slowly |
