Manual for Rocas 210 (i) / Impax 210 (i)
Uploaded: Aug. 9, 2025, 11:38 p.m.
Preparing the Camera:

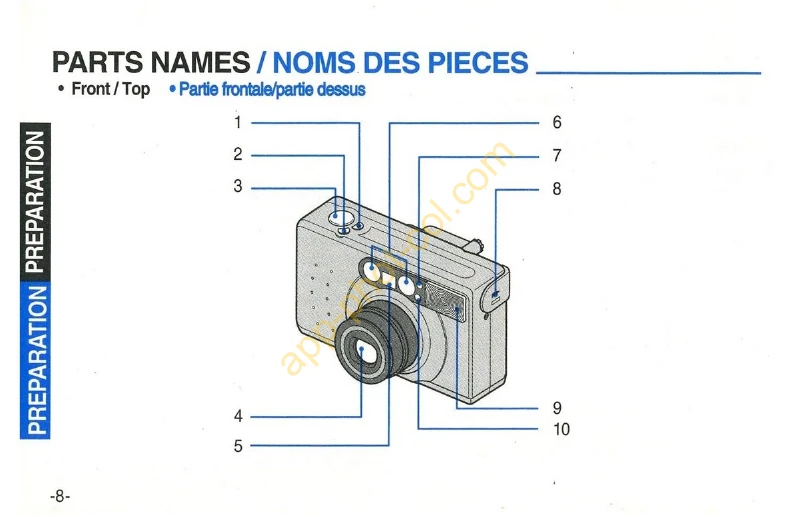

- Familiarize yourself with the camera's parts and controls (Pages 8-11).
- Load the battery correctly (Page 17).
- Check battery life on the LCD panel (Page 18).
- Attach the camera strap securely (Page 20).
- Load the APS film cartridge, ensuring correct film speed is displayed (Pages 21-22).
- Aim the autofocus frame at the subject and press the shutter button halfway to focus.
- Press the shutter button fully to take the picture.
- Use zoom buttons to adjust focal length (Page 24).
- Adjust the diopter for clear viewfinder image (Page 27).
- Utilize focus lock for off-center subjects (Page 33).
- Select flash modes (Red-eye reduction, Fill-in flash, Flash off) or shooting modes (Normal, Self-timer) as needed (Pages 35-36).
- Date imprinting can be enabled or disabled (Pages 30-32).
- Select print types (C-classic, H-hi-vision, P-panorama) (Page 34).
- The camera automatically rewinds the film when finished (Page 28).
- Mid-roll rewinding is also possible (Page 29).
Troubleshooting and error codes
| Check point/Point à vérifier | Remedy/Solution | Page/Page |
|---|---|---|
| If the shutter does not operate after pressing the shutter button. | Press the power button to turn on the camera. / Appuyez sur le bouton Power pour allumer l'appareil. | 24 |
| Is the battery loaded correctly? / La pile a-t-elle été montée correctement? | Reinsert correctly. / Introduisez-la correctement. | 17 |
| Has it been a long time since you used the camera? / Vous ne l'utilisez peut-être pas depuis longtemps? | Change the battery. / Remplacez la pile | 17,18 |
| If a picture is partially dark or out of focus. | ||
| Did you compose a subject correctly referring to the Picture area frame? / Avez-vous composé bien le sujet en faisant référence au cadre ? | Read the "Viewfinder and Autofocus Indicator" / Lisez "Viseur et indicateurs" | 16 |
| Did you select the print type as "P"(Panorama)? / Avez-vous réglé votre appareil en mode panorama? | Check the C/H/P lever and select the “C” (Classic) type. / Quittez le mode panorama. | 34 |
| Was the lens or other sensor obstructed by your fingers or hair? / L'obljectif ou d'autres senseurs étaient-ils obstrués par un doigt ou par des cheveux? | Be careful not to block the lens or the exposure sensor. (Read the "Holding the camera" section) / Attention à ne pas obstruer l'oblectif ou le posemètre. | 25 |
