Parts/Service for DMT800 Series
Uploaded: Nov. 21, 2025, 7:34 p.m.
- Safety Instructions: Emphasizes disconnecting power and water before servicing, proper handling of electrical parts, and avoiding flammable substances near the dishwasher.
- Features: Highlights large capacity, elegant design with touch sensors, quiet operation, self-cleaning filter, Storm Wash, and twin fan condensing drying.
- Specifications: Details wash capacity (14/15 place settings), power, water pressure, wash/dry types, power usage, and dimensions.

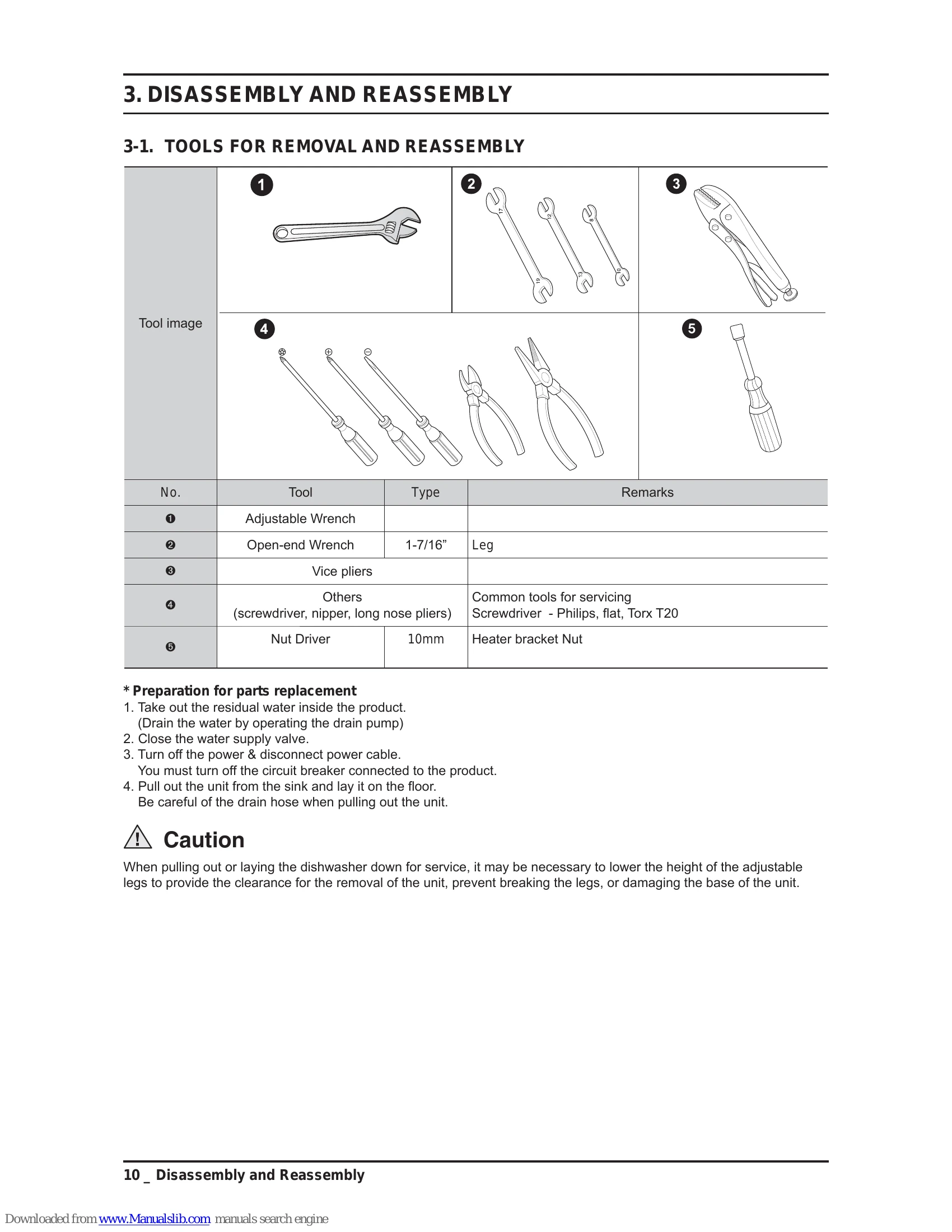

- Disassembly/Reassembly: Provides instructions and tool lists for taking apart and putting back together various components of the dishwasher.
- Troubleshooting: Offers guidance on diagnosing and resolving common issues, including error codes and checking specific components.
- PCB Diagram: Illustrates the main PCB layout with numbered locations for connectors and relays.
- Wiring Diagram: Shows the electrical connections for different models.
- Schematic Diagram: Details the main control circuit.
- Reference: Explains model number naming rules and provides a glossary of terms.
Troubleshooting and error codes
| Error Type | Error mode | Checking Method | Corrective actions |
|---|---|---|---|
| Dry is not satisfied. (DW7933) | None | 1. Check whether Low Rinse LED light or not. | If Low Rinse LED light, refill rinse in Dispenser. |
| 2. Check the wire connections for the Dry Fan Motor. | Reconnect the Dry Fan Motor connectors. | ||
| 3. Check the resistance of the Fan Motor coil. (Remove the connector before measuring.) • Normal: Approx. 150 Ω |
Faulty: Replace the Fan Motor assy. | ||
| 4. Check the resistance of the Thermal Actuator. (Remove the connector before measuring.) Normal: Approx. 1.45 ΚΩ |
Faulty: Replace the Thermal Actuator. | ||
| 5. Check the operation of the Dry Fan Motor Relay : Check the operating voltage between the yellow wire of the C101 connector and the sky wire of the CN201 connector. • Normal: 120V (while operating) |
Faulty: Replace the Main PBA assy. | ||
| 6. Check the operation of the dispenser. If rinse aids are not dispensed, a dry error may occur. Because the dishes are heated and heat dried during the last drying cycle, the dried state of plastic dishes may not be optimal. |
See "Detergent is not dispensed." | ||
| LED or Input Key Fail | None | 1. Check the connections for the Sub PBA connector | Reconnect the Sub PBA connectors. |
| 2. Check the LED and Input Key 1) Push 'Normal' + 'Heavy' + 'Power Key' 2) Push 'Normal' Key 4 times 3) Push all key. • Normal: All LED is light. |
Faulty: Replace the Sub PBA. | ||
| 3. Check the DC voltage of the Main PBA. | See "Main PBA DC voltage error". |
