Manual for DW80M2020US
Uploaded: Nov. 21, 2025, 6:45 p.m.

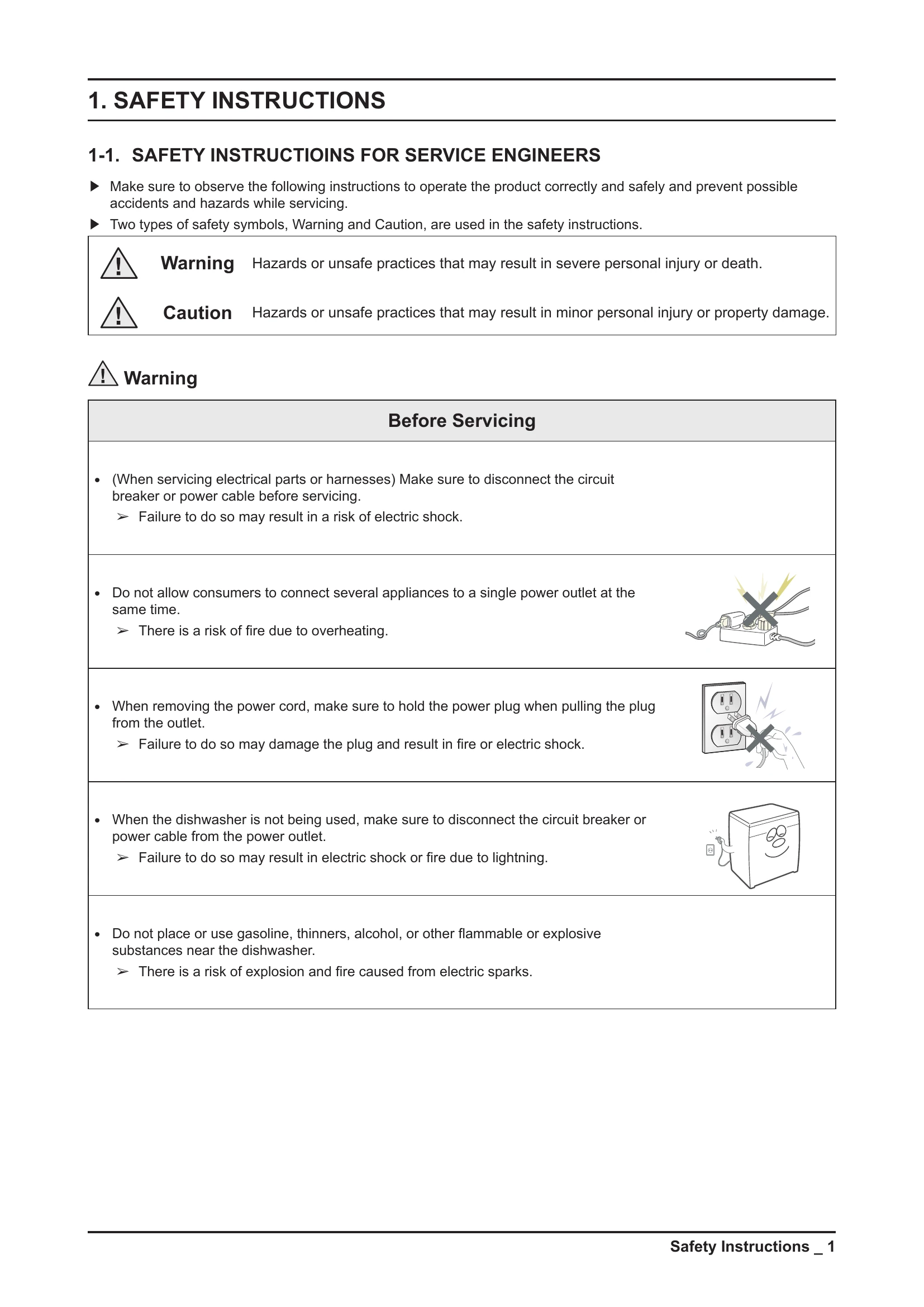

- Safety Instructions: Emphasizes precautions for safe operation and servicing, including electrical safety, proper handling of power cords, and avoiding flammable substances.
- Features: Highlights extra large capacity, increased convenience through smart auto cycles, and elegant design with digital touch sensors.
- Specifications: Details power supply, water pressure, wash/dry methods, power consumption, and main features like capacity and dimensions.
- Troubleshooting: Provides guidance on diagnosing and resolving common issues such as leakage, temperature sensor problems, power checks, nozzle function, and detergent dispensing.
- PCB Diagram and Wiring Diagram: Illustrates the main PCB layout and the overall wiring connections for service and repair.
Troubleshooting and error codes
| Check code trouble shooting | |||
| Check Type | Check Mode | Checking Method | Corrective actions |
|---|---|---|---|
| Leakage Check | Auto | Check whether there is any trace of water leakage in the shutter. Normal: No water leakage trace | Faulty: Check the leakage location. Replace the Faulty part. Normal: Replace the Main PBA assy.D12 |
| Normal | |||
| Heavy | |||
| Express 60 | |||
| Temperature Sensor Check | Auto | Check the connections for the Thermistor connector. | Temperature Sensor Open Circuit Reconnect the Thermistor connector. |
| Normal | Check the connections for the Thermistor connector. | Temperature Sensor Short Circut Reconnect the Thermistor connector. | |
| Heavy | Check whether the Thermistor is operating normally. Measure the voltage between both ends of the Thermistor. Normal: 0.2 to 4.5V Measure the resistance between both ends of the thermistor Remove the connector before measuring. * See the Table right | Faulty: Replace the Thermistor(or Assy Sensor ECS). Normal: Replace the Main PBA assy.D10 | |
| Express 60 | |||
| Temp. (°C) | Temp. (°F) | Resistance (ΚΩ) |
|---|---|---|
| 5 | 41 | 22.27 |
| 10 | 50 | 18.07 |
| 15 | 59 | 14.75 |
| 20 | 68 | 12.11 |
| 25 | 77 | 10 |
| 30 | 86 | 8.302 |
| 35 | 95 | 6.928 |
| 40 | 104 | 5.81 |
| 45 | 113 | 4.897 |
| 50 | 122 | 4.145 |
| 55 | 131 | 3.525 |
| 60 | 140 | 3.011 |
| 65 | 149 | 2.582 |
| 70 | 158 | 2.223 |
