Brand: SAMSUNG
Category: Dryer
Document Type: Manual
Language: EN
Manual for DV6000R
Uploaded: Nov. 21, 2025, 9:04 p.m.
Warranty Information
This manual does not contain specific warranty period information.
- Safety First: Always prioritize safety during servicing. Disconnect power, avoid flammable materials, and ensure the dryer is level.

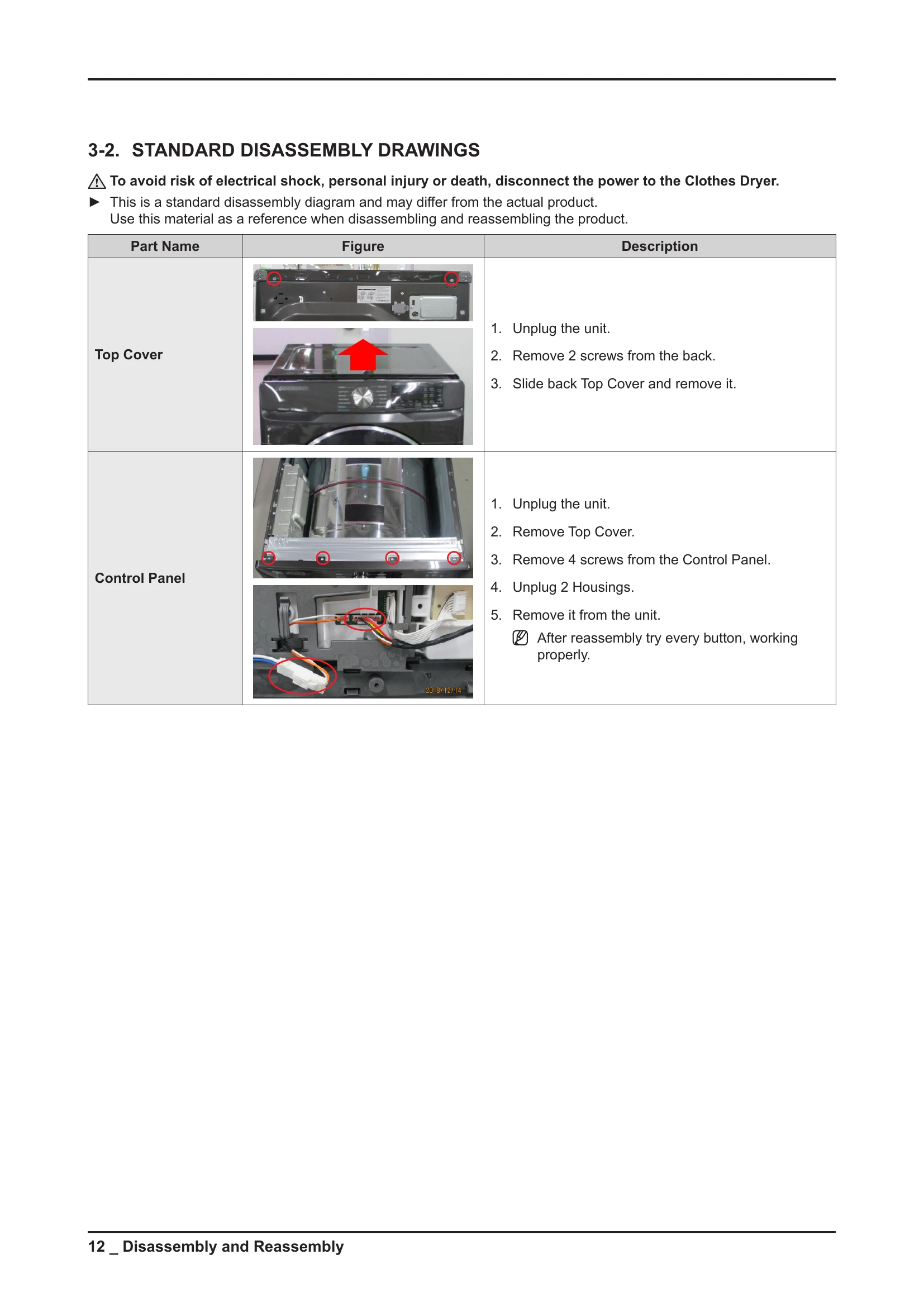

- Disassembly: Follow detailed step-by-step procedures with diagrams for disassembling components like the top cover, control panel, door, frame, drum, motor/blower, burner, and sensors. Specific tools are listed.
- Reassembly: Reassembly is generally the reverse of disassembly.
- Gas Conversion: Specific instructions are provided for converting the dryer from Natural Gas to LP, including parts and steps.
- Troubleshooting: Provides resistance values for various components like belt cut-off switches, lamps, thermostats, gas valves, and igniters to aid in diagnosis. Includes a section on error codes.
- PCB & Wiring: Detailed diagrams of the Main PCB and Sub PCB are included, along with circuit diagrams and wiring diagrams for both electric and gas models to help with electrical troubleshooting.
- Reference: Explains the model naming convention for DV6000T project names.
Troubleshooting and error codes
| Part Name | Image | Description | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Belt Cut-off S/W |  |
- Belt Cut-off S/W - Lever open: Resistance value < 1Ω - Lever push: Resistance value: ∞ Ω |
|||||||||||||||||||||
| Lamp |  |
- Thermostat 3 resistance < 1Ω - If resistance is infinite, replace thermostat 3. - Thermostat 2 resistance < 1Ω - If resistance is infinite, replace thermostat 2. - [DUAL] Heater resistance 13Ω (PIN 2-3) Heater. resistance 34Ω (ΡΙΝ 1-2) - If resistance is infinite, replace heater. - [SINGLE] Heater resistance 100 (ΡΙΝ 1-3) - If resistance is infinite, replace heater. Measure resistance on the following terminal. |
|||||||||||||||||||||
| Centrifugal Switch (Motor) |  |
- 2.88Ω between Pin #3 and 4 - 3.5Ω between Pin #4 and 5 Contacts
● = Contact closed |
|||||||||||||||||||||
| Thermistor |  |
238.23 ΚΩ at 25°C (77°F) | |||||||||||||||||||||
| Radiant sensor (10RS) Gas |  |
- Resistance value < 1Ω - If resistance is infinite, replace radiant sensor. |
|||||||||||||||||||||
| Gas Valve (25M01A) |  |
• Valve 1-2: Resistance value approx. 1365Ω • Valve 1-3: Resistance value approx. 560Ω • Valve 4-5: Resistance value approx. 1325Ω • Valve 6-7: Resistance value approx. 1000Ω • If resistance is infinite, replace valve. |
|||||||||||||||||||||
| Igniter (101D) Gas |  |
Resistance value 40~400Ω • If resistance is infinite, replace igniter. |
|||||||||||||||||||||
| Thermostat (60T21 Hi-Limit) 230F-50F |  |
• Resistance value < 1Ω • If resistance is infinite, replace thermostat. |
