Brand: SAMSUNG
Category: Dryer
Document Type: Manual
Language: EN
Manual for DVE(G)45T3400*
Uploaded: Nov. 21, 2025, 9:12 p.m.
Warranty Information
This manual includes a one-year limited warranty for parts and labor in the U.S.A. and Canada.
Safety First: Read all instructions before use. Follow warnings and cautions for fire, explosion, and injury prevention. Ensure proper installation and grounding.

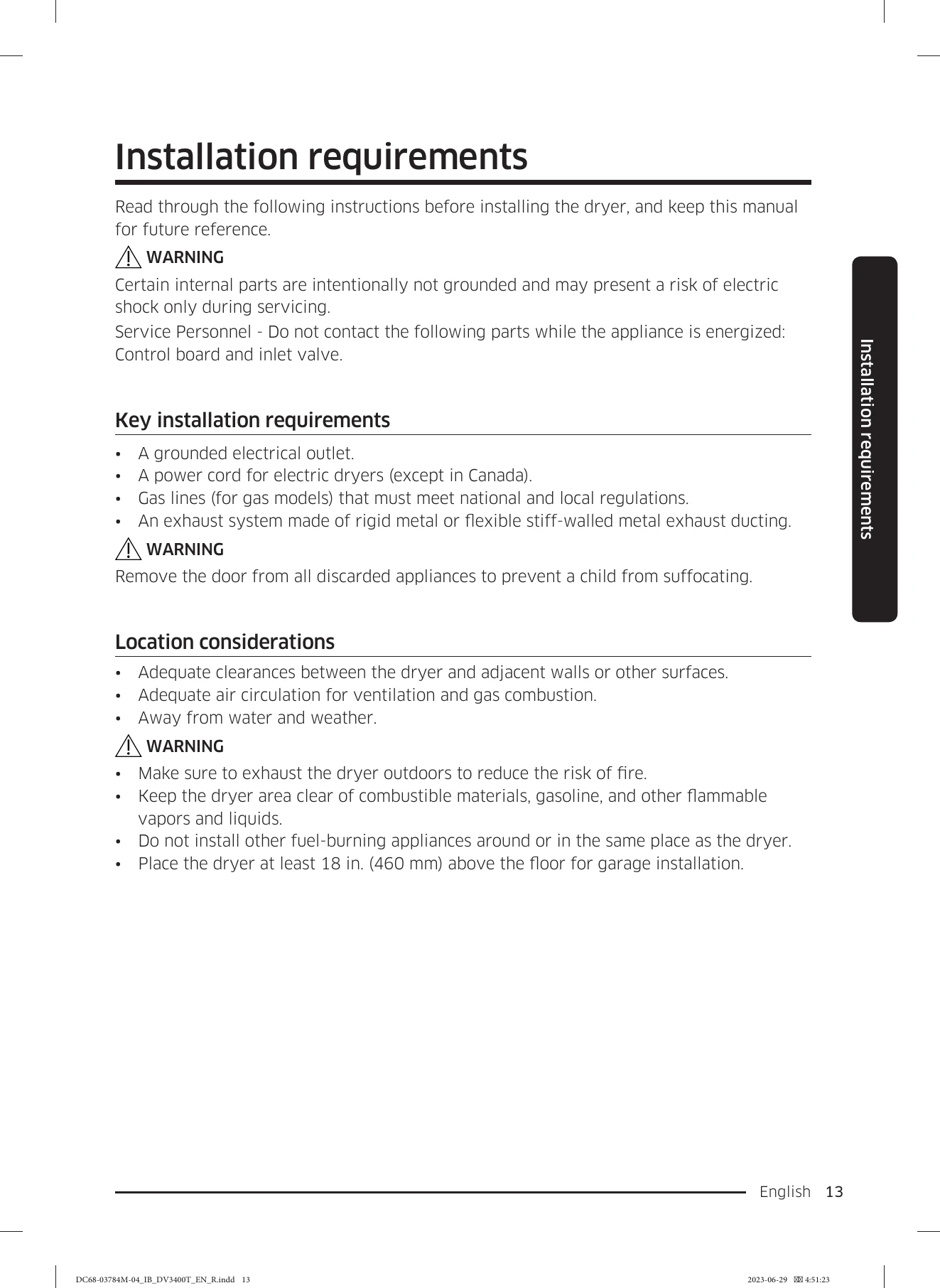

Installation: Requires a grounded outlet, proper gas lines (for gas models), and a suitable exhaust system. Adhere to clearance requirements and local codes.
Operation: Familiarize yourself with the control panel and cycle options. Sort and load laundry appropriately.
Maintenance: Regularly clean the lint screen. Periodic cleaning of the interior and exhaust duct by qualified personnel is recommended.
Troubleshooting and error codes
| Checkpoints | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | Power cord unplugged | Plug in the power cord. |
| Circuit breaker tripped or fuse blown | Reset the circuit breaker or replace the fuse. | |
| Door not closed properly | Close the dryer door securely. | |
| Incorrect setting | Select a cycle and press START. | |
| Dryer does not heat | Incorrect cycle selected | Select a timed dry cycle or a sensor dry cycle with heat. |
| Lint screen clogged | Clean the lint screen. | |
| Exhaust duct blocked | Clean the exhaust duct. | |
| Dryer overloaded | Remove some items. | |
| Clothes are not dry | Incorrect cycle selected | Select a longer cycle or a higher heat setting. |
| Lint screen clogged | Clean the lint screen. | |
| Exhaust duct blocked | Clean the exhaust duct. | |
| Dryer overloaded | Remove some items. | |
| Static cling | Use a fabric softener or dryer sheet. | |
| Dryer is noisy | Foreign objects in drum | Remove foreign objects. |
| Dryer not level | Adjust the leveling legs. | |
| Longer drying times | Lint screen clogged | Clean the lint screen. |
| Exhaust duct needs cleaning | Clean the exhaust duct. | |
| Dryer overloaded | Remove some items. | |
| Error code displayed | Refer to the "Information codes" section on page 51. | Follow the instructions for the displayed error code. |
