Brand: SAMSUNG
Category: Home Cinema
Document Type: Manual
Language: EN
Manual for DVD-P171
Uploaded: Nov. 21, 2025, 8:17 p.m.
Warranty Information
Samsung Electronics Co., Ltd reserves the right to change specifications without notice.
- Setting up: Ensure proper ventilation, do not force the disc tray, turn off before moving.
- Safety: Do not open covers, refer servicing to qualified personnel.
- Disc handling: Clean gently, avoid solvents, do not touch the signal surface.

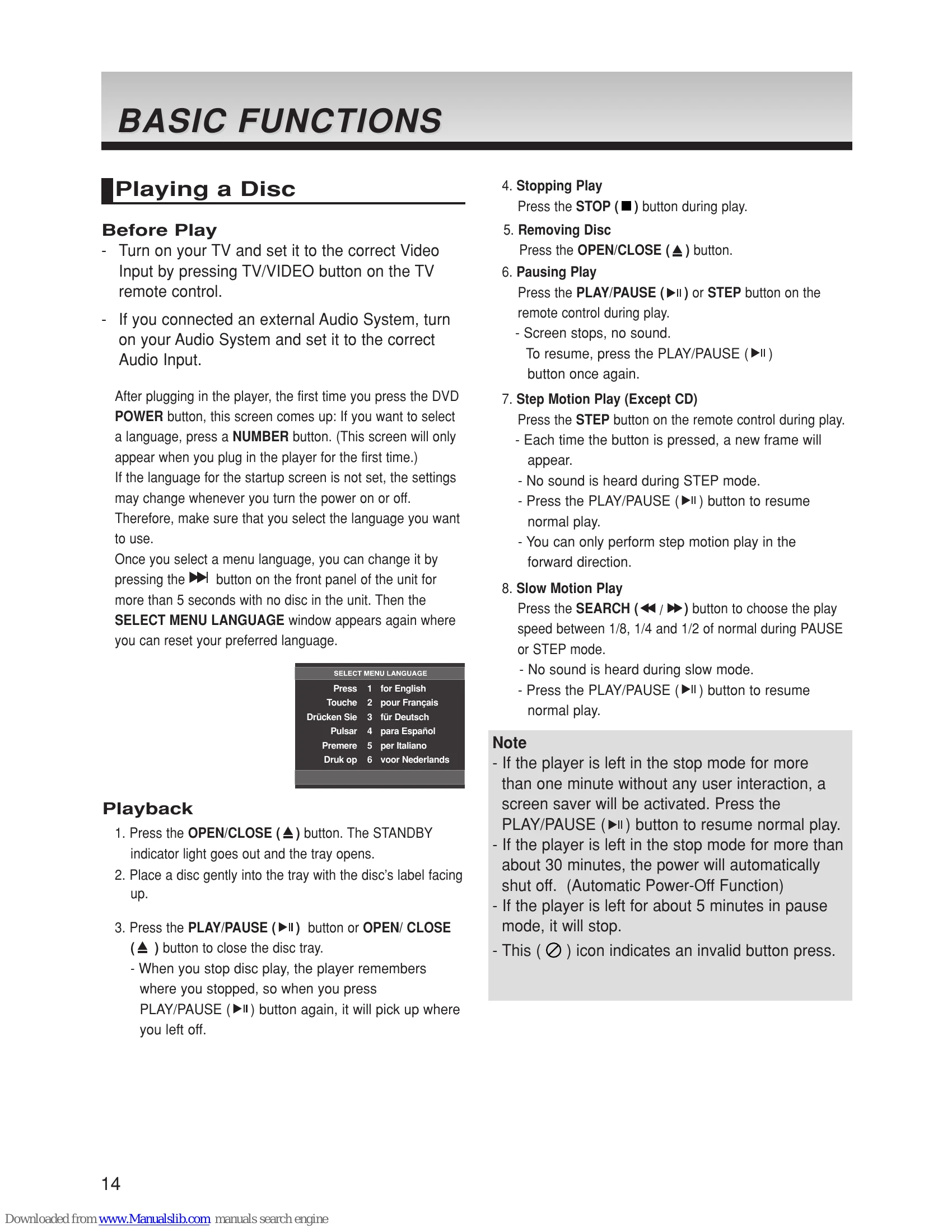

- Playback: Press OPEN/CLOSE to open tray, place disc, press PLAY/PAUSE to begin. Player remembers stop position.
- Functions: Use STOP to stop play, PLAY/PAUSE to pause/resume, STEP for frame-by-frame, SEARCH for skipping, REPEAT for looping sections.
- Menus: Use MENU button for Disc Menu and Title Menu.
- Setup: Access Setup Menu via MENU button to configure language, audio, display, and parental controls.
Troubleshooting and error codes
| Problem | Action | Page |
|---|---|---|
| No operations can be performed with the remote control. | Check the batteries in the remote control. They may need replacing. Operate the remote control at a distance of no more than 20 feet. Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again. | P3 |
| Disc does not play. | Ensure that the disc is installed with the label side facing up. Check the region number of the DVD. | P5 |
| 5.1 channel sound is not being reproduced. | 5.1 channel sound is reproduced only when the following conditions are met. : 1) The DVD player is connected with the proper Amplifier 2) The disc is recorded with 5.1 channel sound. Check whether the disc being played has the "5.1 ch” mark on the outside. Check if your audio system is connected and working properly. In a SETUP Menu, is the Audio Output set to Bitstream? | P12-13, P25 |
| The icon appears on screen. | The features or action cannot be completed at this time because: 1. The DVD's software restricts it. 2. The DVD's software doesn't support the feature (e.g., angles). 3. The feature is not available at the moment. 4. You've requested a title or chapter number or search time that is out of range. | |
| Disc Menu doesn't appear. | Check if the disc has a Menu. | |
| Play mode differs from the Setup Menu selection. | Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function. | P23~27 |
| The screen ratio cannot be changed. | The Screen Ratio is fixed on your DVDs. | P26 |
| No audio. | Make sure you have selected the correct Digital Output in the Audio Options Menu. | P25 |
| The screen is blocked | Press the  button (in front panel) for more than 5 seconds under no disc inside All settings will revert to the factory settings. |
P14 |
| Forgot password | Press the button (in front panel) for more than 5 seconds under no disc inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary. |
P27 |
| If you experience other problems. | Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again. If the problem still cannot be solved, please contact your nearest authorized service center. | |
| The picture is noisy or distorted | Make sure that the disc is not dirty or scratched. Clean the disc. | P2 |
