Parts/Service for MAX-N72/73/75

Parts/Service for MAX-N72/73/75

Brand: SAMSUNG

Category: Home Cinema

Document Type: Parts/Service

Language: EN

Uploaded: Nov. 21, 2025, 8:41 p.m.

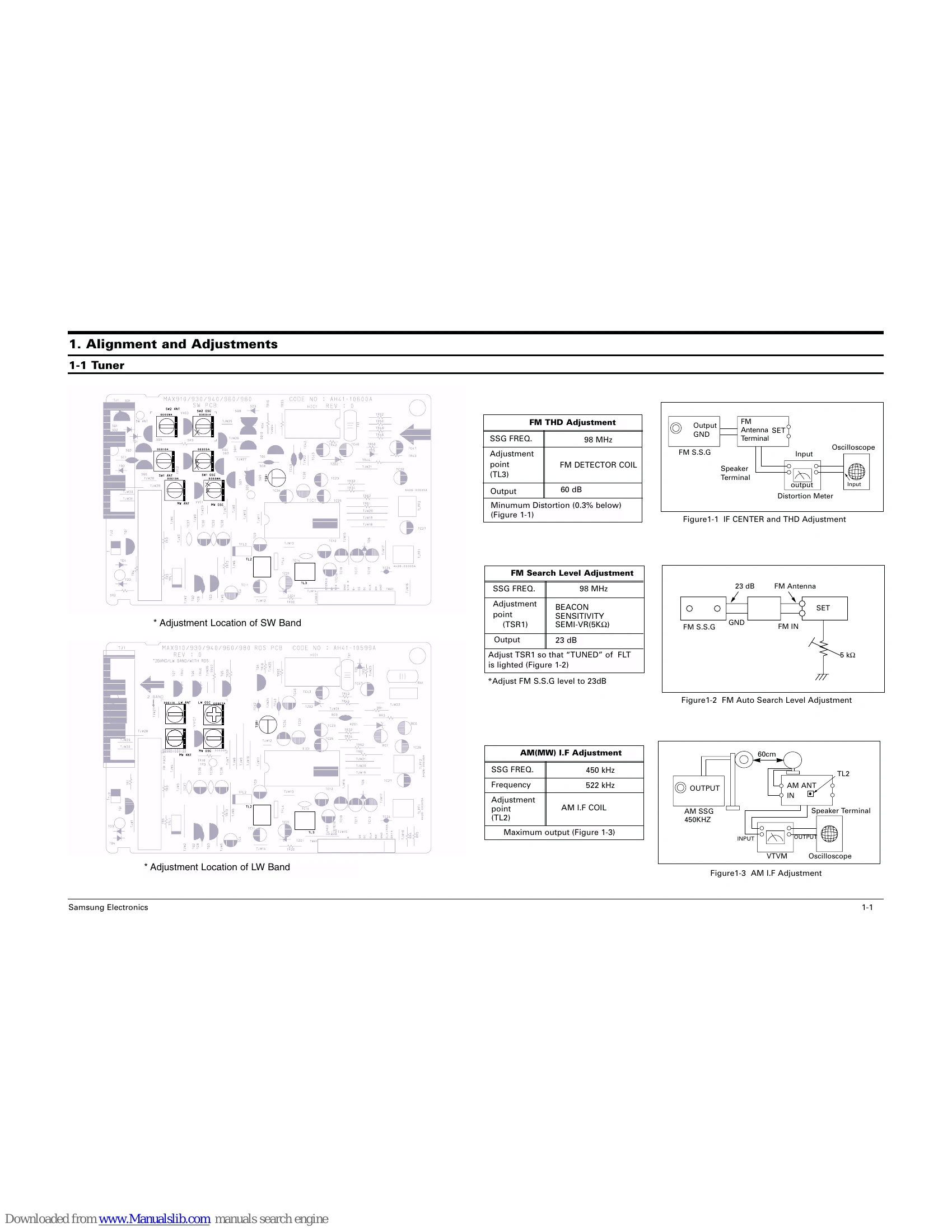

This manual provides detailed instructions for the adjustment and servicing of the SAMSUNG MAX-N72/73/75 3 CD CHANGER MINI COMPONENT SYSTEM. It covers tuner alignment, cassette deck adjustments, exploded views and parts lists for various components (cassette deck, speakers, CD deck), electrical parts lists, block diagrams, PCB diagrams, wiring diagrams, and schematic diagrams. The document is intended for service personnel and details component replacements and troubleshooting procedures.

Troubleshooting and error codes

Problem Cause Solution
FM Reception is weak or noisy

1. FM antenna is not connected properly.

2. FM signal is weak.

3. Internal circuit is not adjusted correctly.

1. Connect the FM antenna correctly.

2. Move the system to a location with a stronger FM signal or use an outdoor antenna.

3. Adjust the FM circuit as per the alignment procedure.
No sound from speakers

1. Volume is set to minimum.

2. Speaker cord is not connected properly or is damaged.

3. Protection circuit is activated.

4. Internal amplifier is faulty.

1. Increase the volume.

2. Check speaker cord connections and integrity. Replace if damaged.

3. Check for short circuits or overheating. Turn off the power and reset.

4. Service the internal amplifier.
Cassette tape does not play or record

1. Cassette deck mechanism is dirty or damaged.

2. Tape speed is incorrect.

3. Playback/record head is dirty.

4. Internal circuits for play/record are faulty.

1. Clean the cassette deck mechanism and tape heads. Check for obstructions.

2. Adjust tape speed as per manual instructions.

3. Clean the play/record head.

4. Service the internal circuits.
CD does not play

1. CD is dirty or scratched.

2. CD lens is dirty.

3. CD mechanism is faulty.

4. Digital signal processor or DAC is faulty.

1. Clean the CD surface.

2. Clean the CD lens.

3. Check and service the CD mechanism.

4. Service the digital signal processor or DAC.
