Brand: SAMSUNG
Category: Home Cinema
Document Type: Parts/Service
Language: EN
Parts/Service for MAX-VB630
Uploaded: Nov. 21, 2025, 8:08 p.m.
Manual Publish Date: 2002-09-01

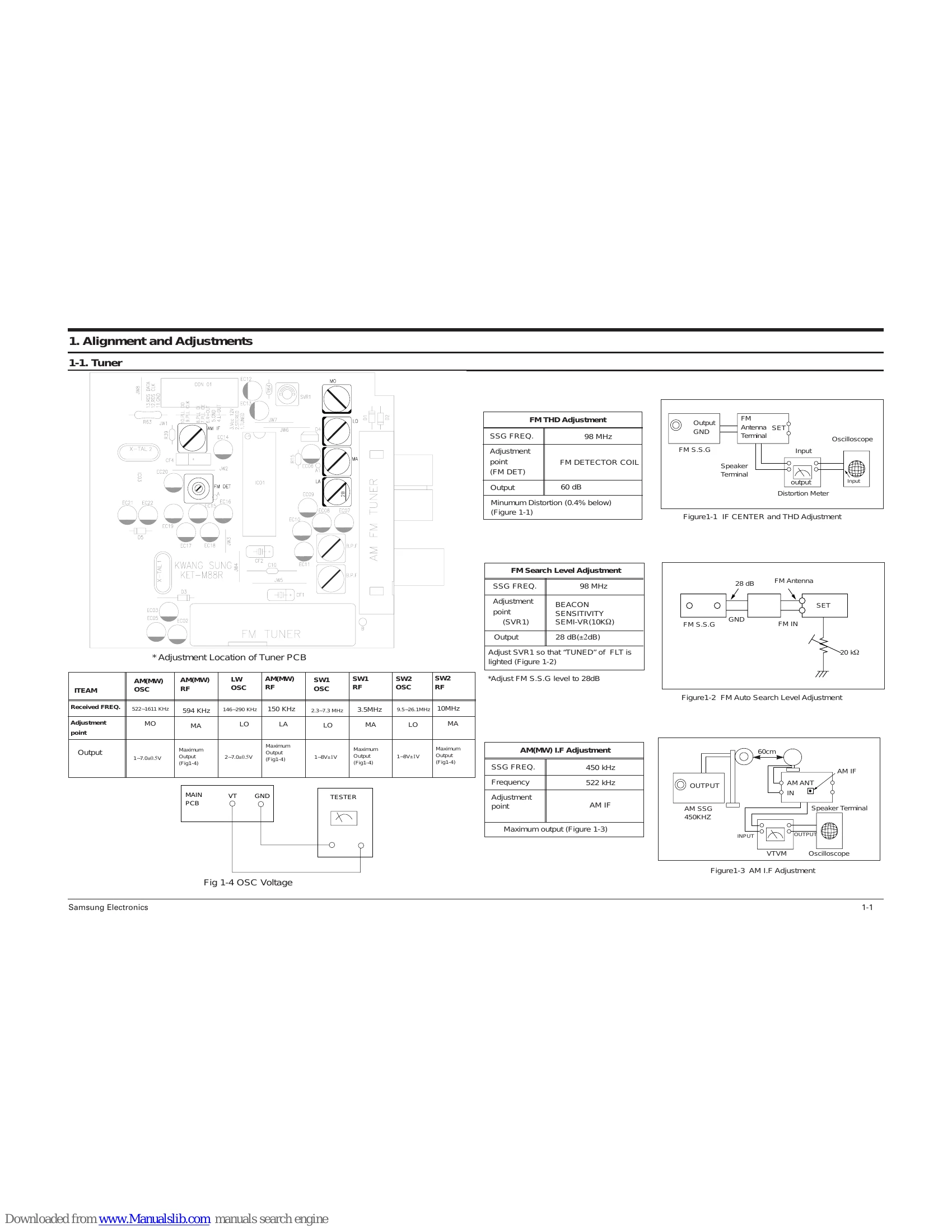

This manual provides detailed information for servicing the SAMSUNG MAX-VB630 Mini Component System. It covers alignment and adjustments for the tuner and cassette deck, exploded views and parts lists for various components like the cassette deck, speakers, and main unit, as well as electrical parts lists and block diagrams. It also includes wiring and schematic diagrams for a comprehensive understanding of the system's electrical functions.
Troubleshooting and error codes
| No. | Problem | Cause | Solution |
|---|---|---|---|
| 1 | No power | The power cord is not connected. | Connect the power cord securely. |
| The fuse is blown. | Replace the fuse with the same rating. | ||
| The power switch is not turned on. | Turn on the power switch. | ||
| 2 | No sound | Volume is set to minimum. | Increase the volume. |
| MUTE function is active. | Press the MUTE button. | ||
| Speaker cables are not connected properly. | Connect speaker cables securely. | ||
| Input source is not selected correctly. | Select the correct input source. | ||
| 3 | CD does not play | CD is dirty or scratched. | Clean or replace the CD. |
| Disc is inserted incorrectly. | Insert the disc correctly. | ||
| Laser lens is dirty. | Clean the laser lens. | ||
| 4 | Cassette tape does not play | Tape is inserted incorrectly. | Insert the tape correctly. |
| Tape head is dirty. | Clean the tape head. | ||
| 5 | No sound from one speaker | Speaker cable is loose or broken. | Check and secure the speaker cable. |
| Speaker is faulty. | Replace the speaker. | ||
| 6 | Humming noise | External noise interference. | Move the unit away from other electronic devices. |
| Poor grounding. | Check the grounding of the unit and power outlet. | ||
| 7 | Remote control does not work | Batteries are depleted. | Replace the batteries. |
| Obstruction between remote control and sensor. | Remove any obstructions. | ||
| Remote control is faulty. | Replace the remote control. |
