Brand: SAMSUNG
Category: Home Cinema
Document Type: Parts/Service
Language: EN

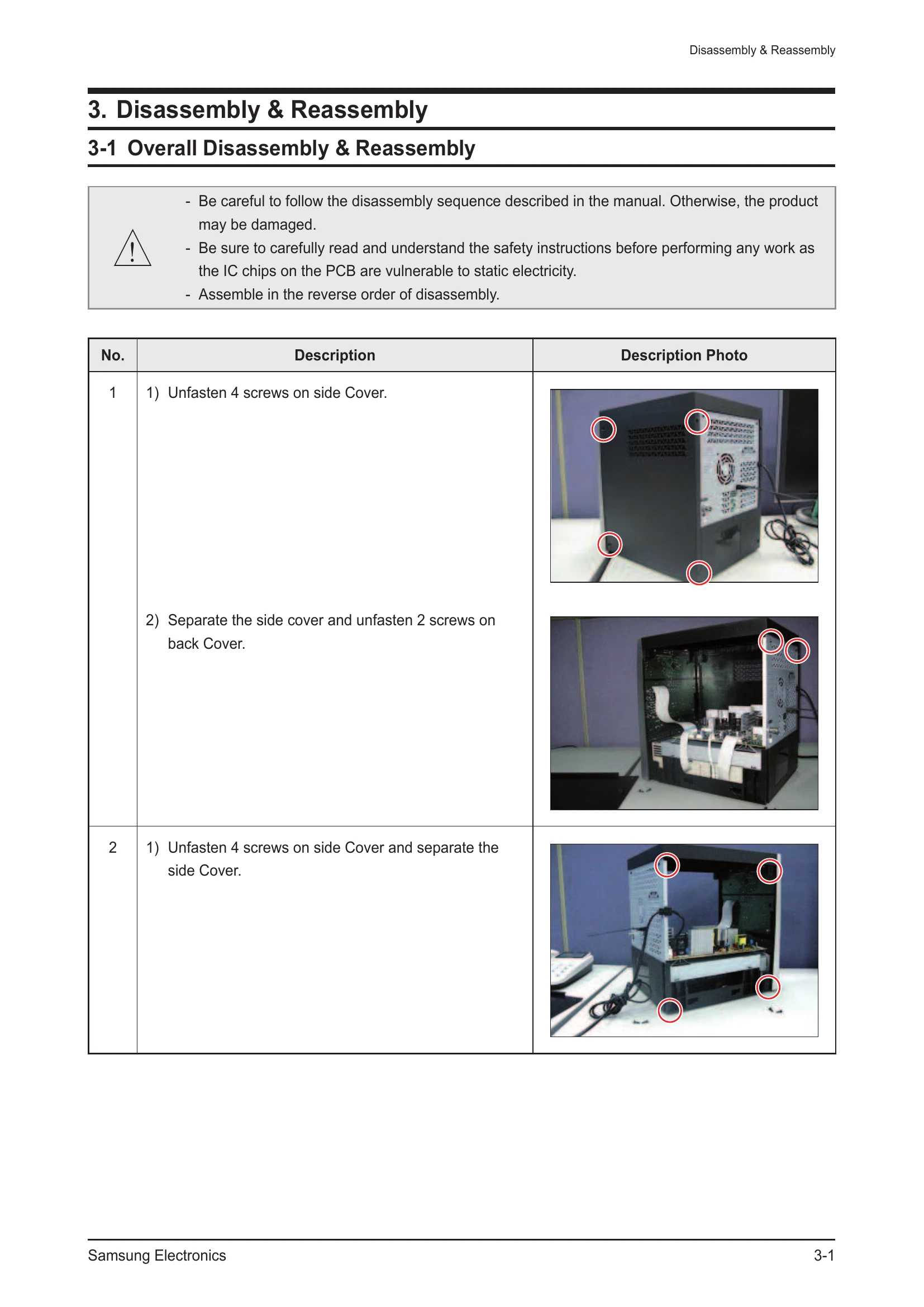

Parts/Service for MX-C730D
Uploaded: Nov. 21, 2025, 8:57 p.m.
Manual Publish Date: 2010-05-01
Warranty Information
No warranty information found in the provided pages.
- Product Features: 2.0 channel system with 360W Total RMS / 4000W PMPO output, IR Amp, 5-tray CD changer, CD ripping while listening, and a New Bass Sound System (GiGAS Sound).
- Connectivity: Features USB for music ripping expansion and a portable audio input (3.5mm stereo jack). Compatible with DVD, Divx, MP3, CD/CD-R/RW, WMA, and VCD (Regional Option).
- Basic Specifications: Includes detailed specifications for RADIO FM/AM, COMPACT DISC PLAYER, AMPLIFIER output power, and GENERAL dimensions/weight.
Troubleshooting and error codes
| Error Mode | Checkpoints | Measures |
|---|---|---|
| Protection Circuit Operation | - Check speakers for short circuit. - Check for internal short circuits. - Check for DC output from amplifier. | - Replace faulty speaker. - Identify and repair internal short. - Replace amplifier IC or related components. |
| No Power | - Check AC power cord and outlet. - Check primary side of SMPS. - Check standby voltage. | - Replace AC cord or check outlet. - Inspect SMPS components (fuse, transformer, etc.). - Verify standby voltage is present. |
| No Sound | - Check volume setting. - Check audio input source and connections. - Check amplifier output stage. - Verify signal path from source to speaker. | - Adjust volume. - Test different sources and cables. - Inspect and test amplifier components. - Trace audio signal path. |
| Disc Read Error | - Check disc condition (scratches, dirt). - Clean the laser lens. - Check laser pickup mechanism. - Verify motor function. | - Use a clean disc. - Use a lens cleaning disc or service tool. - Adjust or replace laser pickup. - Inspect and clean spindle motor. |
