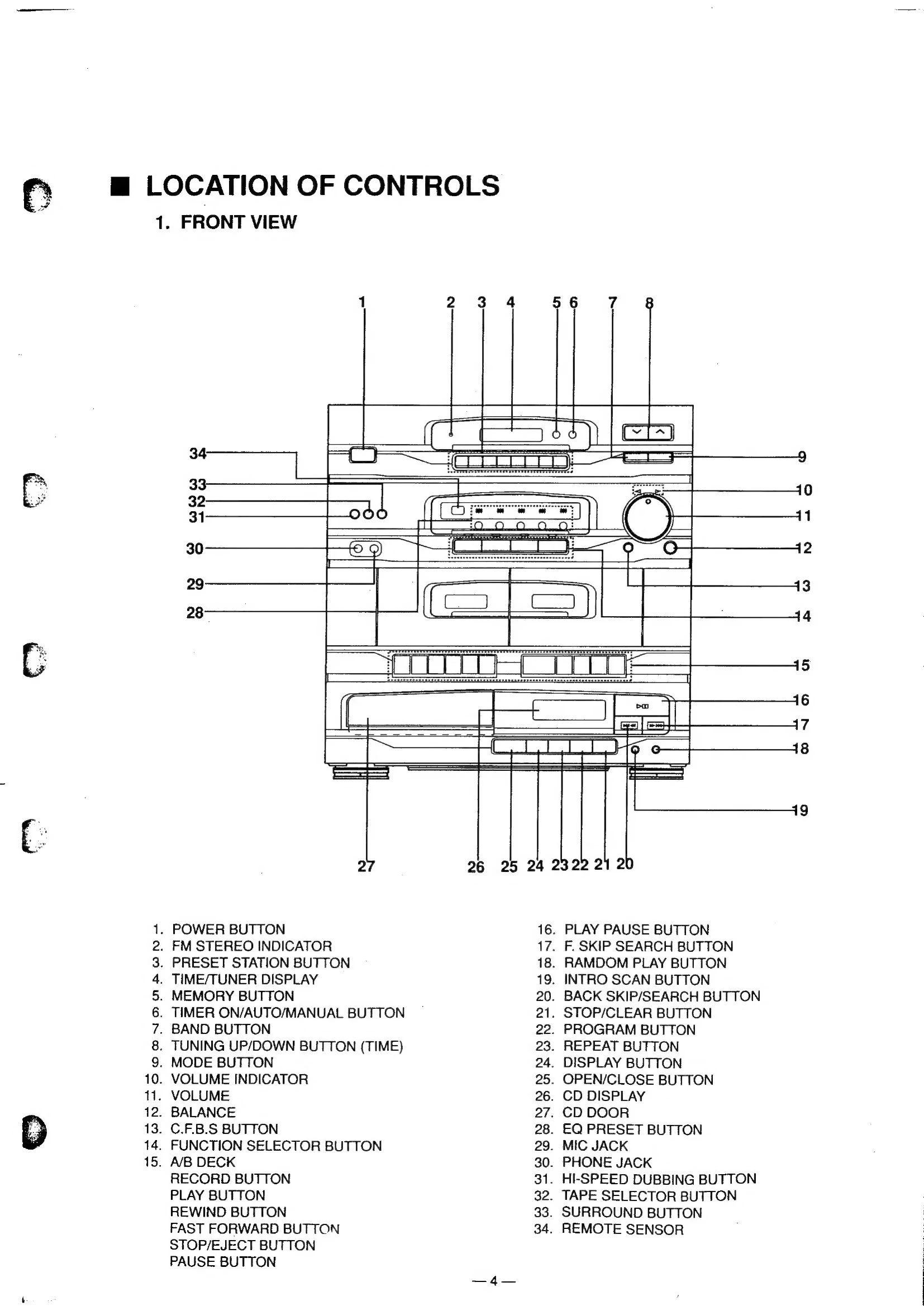

This manual provides detailed service information for the SAMSUNG SCM-8100 HI-FI MUSIC CENTER WITH COMPACT DISC PLAYER. It includes specifications, safety precautions, servicing notes, location of controls, disassembly instructions, basic circuit operation for tuner, tape recorder, and CD player, troubleshooting guides, adjustment procedures, block diagrams, schematic diagrams, wiring diagrams, and an abbreviation list. Key operations include radio tuning, tape playback/recording, CD playback, and audio output. The troubleshooting section offers step-by-step guidance for various problems. Adjustment procedures cover tuner, CD player, and tape recorder sections to ensure optimal performance.
Troubleshooting and error codes
| MAIN UNIT | Yes/Normal | No/Abnormal | ||
| 1) POWER ON/OFF PROBLEM | LCD lamp is lit | O | X | Check POWER TRANS & fuse |
|---|---|---|---|---|
| Pin 73, 78 of LC7230 (UIC1) is at 5V | O | X | Check connection or soldering of MCW3, MCW4 | |
| RQ1 and RQ3 signal are present | O | X | Replace RQ1, RQ3 | |
| 2) FM NO SOUND | Signals at LA1851 (IIC1) and semi conductors tuner section are present | O | X | Check voltage at power supply section |
| TP1 is at 1.5V±0.3 on low coverage | O | X | Check pump charge circuitry (FQ2 etc) | |
| 7.5V ± 0.3 on high coverage | O | X | Check connection or soldering of MCW3, MCW4 | |
| O | X | Check soldering of pin78 of LC7230 | ||
| O | X | Replace LA1851 (IIC1) | ||
| O | X | Replace F.E.P | ||
| 3) AM NO SOUND | Voltages at LA1851 (IIC1) and tuner semi conductors are normal (Refer to SCHEMATIC DIAGRAM) | O | X | Check voltages at power supply section |
| Voltage between TP1 and GND | ||||
| AM (MW) Low coverage→ 0.9V±0.1 | O | X | Check pump charge circuitry (JQ3, etc) | |
| LW High coverage→ 9V±0.1 Low coverage→ 0.9V±0.1 | O | X | Check connection | |
| { High coverage→ 5.2V±0.1 | O | X | Check soldering of pin77 (LC7230) | |
| Check loop antenna | O | X | Check soldering or connection of L1~2, OT1~2, IT1~2 |
