Brand: SAMSUNG
Category: Other
Document Type: Parts/Service
Language: EN
Parts/Service for MAX-J 530
Uploaded: Nov. 21, 2025, 6:02 p.m.
Manual Publish Date: 2004-02-01

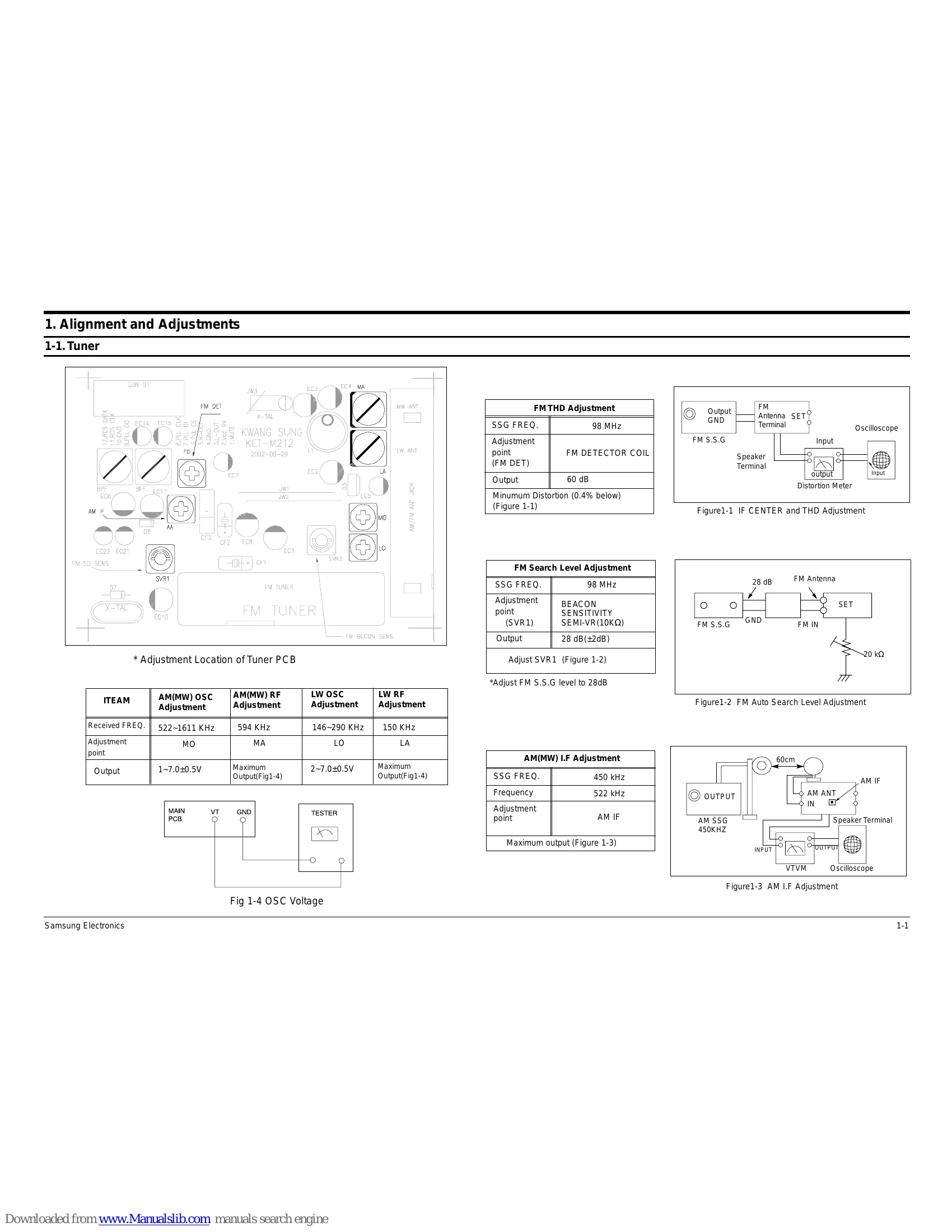

The manual provides detailed information on the maintenance and repair of the SAMSUNG MAX-J530 mini component system. It includes sections on tuner alignment and adjustments, cassette deck adjustments, exploded views and parts lists for the cassette deck, CD deck, and speakers, a total exploded view, electrical parts lists, block diagrams, wiring diagrams, and schematic diagrams. This guide is intended for service technicians.
Troubleshooting and error codes
| No. | Code No. | Description | Specification | Remarks |
|---|---|---|---|---|
| 1 | AH59-01145A | DECK-CASSETTE ASS.Y RP HEAD | ADR268FTW | MT91-11010T |
| 2 | AH81-00141B | HEAD PB | ADR2400-RP(SANKYO) | MT59-00041V |
| 3 | AH81-00363A | ASS,Y MOTOR | MK10P-SS2N3 | MT91-15012J |
| 4 | AH81-00364A | BELT MAIN1 | ADR2400-MAIN 0.5 | 6602-001056 |
| 5 | AH81-00365A | BELT MAIN2 | ADR2400-MAIN 1.25 | 6602-001010 |
| 6 | AH81-00101A | BELT SUB | ADR2400-FR | 6602-001055 |
| 7 | AH81-00102A | SOLENOID | ADR2400-(202) | MT75-00049A |
