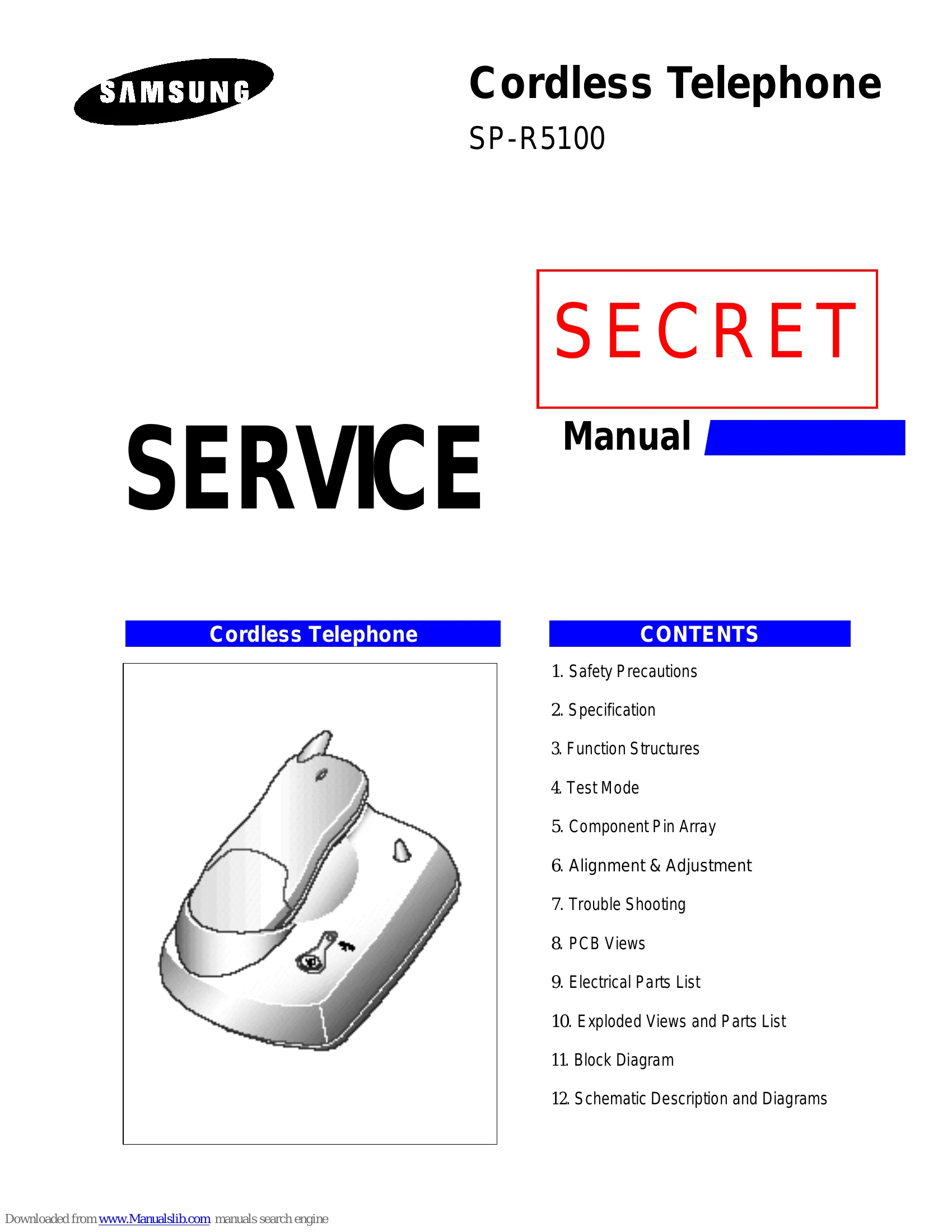

Manual for SP-R5100
Uploaded: Nov. 21, 2025, 8:29 p.m.
The SP-R5100 is a cordless telephone system that uses DECT RF module for communication. It operates on a T.D.D. and TDMA method, utilizing a single antenna for both receiving and transmitting signals. The system frequency range for TX and RX is from 1881.792MHz to 1897.344MHz.
The handset logic controls RF, audio signals, charging, and user functions like key sensing, LCD display, and buzzer. The base set handles telephone line interface, power supply, and charging.
Key features include a 3x3 matrix keypad, EEPROM for storing data, RSSI detector for RF input level monitoring, rechargeable battery, and normal/trickle charge modes.
Troubleshooting and error codes
| No. | Problem | Cause | Solution |
| 1 | No power | A. Battery exhausted | A. Charge the battery. |
| B. Battery is not set | B. Set the battery. | ||
| C. Power adapter is not connected | C. Connect the power adapter. | ||
| 2 | No dial tone | A. Telephone line is not connected | A. Connect the telephone line. |
| B. Line cord is damaged | B. Replace the line cord. | ||
| 3 | Cannot make call | A. No dial tone | A. See "No dial tone". |
| B. Other interference | B. Move the unit to another location. | ||
| 4 | Cannot receive call | A. Telephone line is not connected | A. Connect the telephone line. |
| B. Unit is turned off | B. Turn on the unit. | ||
| 5 | Sound is not clear | A. Unit is too far from base unit | A. Move the unit closer to the base unit. |
| B. Interference from other electronic devices | B. Move the unit away from other electronic devices. | ||
| 6 | Cannot register handset | A. Handset is not in charging cradle | A. Place the handset in the charging cradle. |
| B. Base unit is out of range | B. Move the handset closer to the base unit. |
