Basic Operation Summary
1. Product Specification
Contains technical details like frequency range, channels, carrier power, modulation, frequency stability, operation time (standby, talk, charging), ambient temperature, humidity, weight, dimensions, power supply, and compliance.2. Operations & Installation

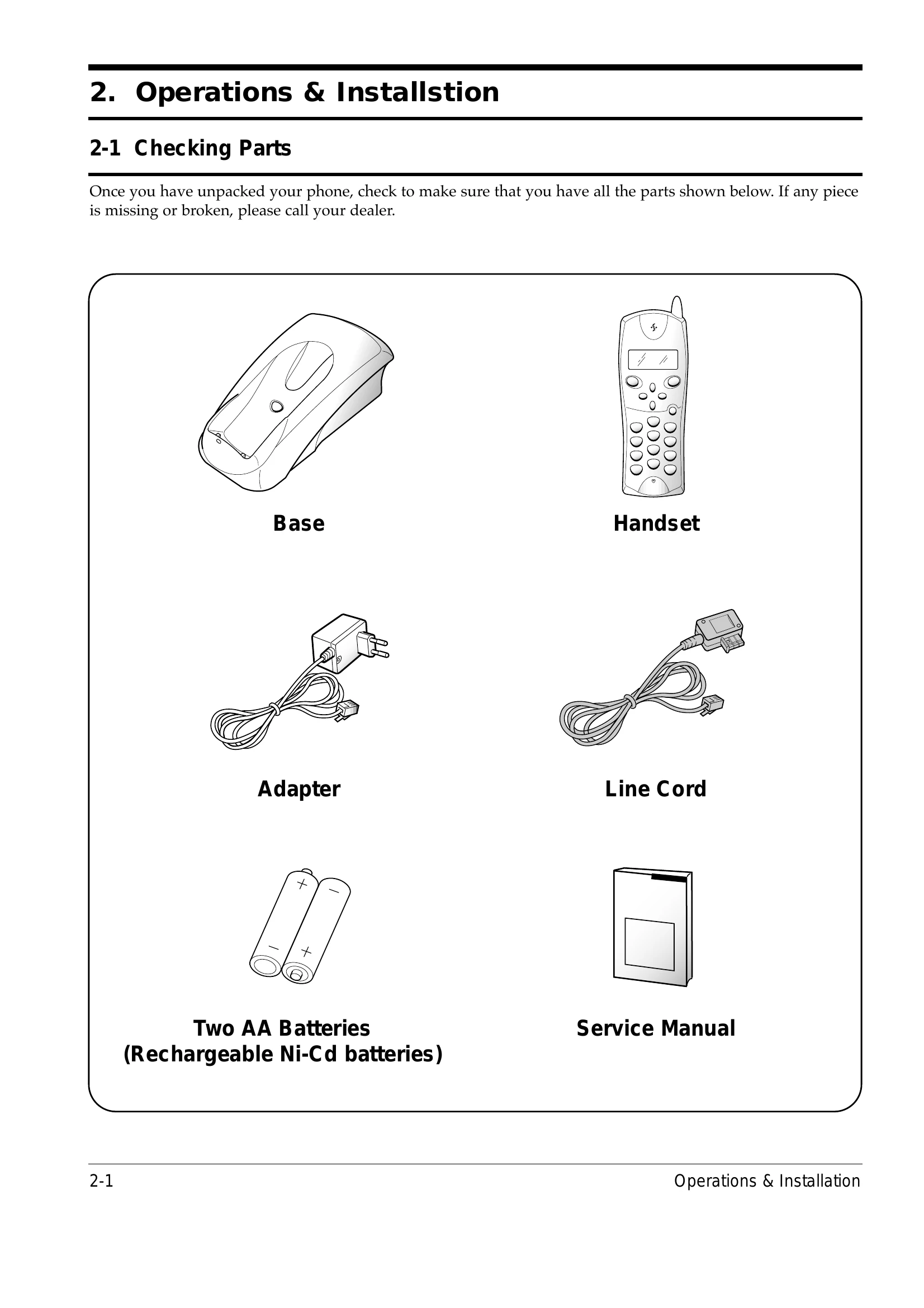

This section covers:- Checking Parts: Verifying all included components (Base, Handset, Adapter, Line Cord, Batteries, Service Manual).
- Control Locations: Identifies buttons and features on the Handset and Base.
- Connecting Lines: Instructions for connecting the phone line and power adapter.
- Installing Handset Batteries: How to insert and replace rechargeable batteries.
- Charging the Handset: Procedure for charging the handset on the base unit.
- Using the Handset Carrying Clip: Attaching and removing the clip.
- Turning the Handset On/Off: Powering the handset on and off.
- LCD Window Icon Descriptions: Explains the meaning of icons on the display.
- Choosing Dial Mode: Setting between pulse and tone dialing.
- Making a Call: Steps to initiate and end a call.
- Camp On Busy: Feature to wait for a busy line to become free.
- Receiving a Call: How to answer incoming calls.
- Caller ID Display: Information on viewing caller identification.
- Out of Range Indication: Warning when the handset is too far from the base.
- Battery Level Indicator: Shows the remaining battery power.
- Adjusting Voice Volume: Controlling the earpiece volume during calls.
- Choosing Ring Type: Selecting a ringtone.
- Adjusting Ring Volume: Setting the ringer volume.
- Key Lock: Enabling/disabling the keypad lock.
- Memory Dialing: Storing and dialing numbers from memory.
- Call Log: Reviewing recent calls.
- Last Number Redial: Dialing the most recently called number.
- Call Time Display On/Off: Feature to show call duration.
- Key Beep On/Off: Enabling/disabling button press sounds.
- Base Number Display On/Off: Controlling the display of the base number.
- Tone Dial Switchover: Switching between tone and pulse dialing.
- Setting Ring Delay Time: Adjusting the ring delay.
- Changing Flash Time: Setting the flash time (German model specific).
- Changing PIN: Modifying the Personal Identification Number.
- Registered Recall: Recalling registered numbers.
- Barring Calls: Blocking specific calls.
- Reset: Resetting the device.
- Registering New Handset with Base: Adding a new handset.
- Paging: Locating the handset.
- Intercom Between Handsets: Communicating between handsets.
- Call Transfer: Transferring calls.
- Operating with Additional Base Unit: Using an extra base unit.
3. Exploded View & Parts List
Detailed diagrams and lists of parts for the Handset, Base, Charger, and Packing.4. Electrical Parts List
Lists of electrical components for Handset, Base, and Charger.5. Block Diagram
Schematic diagrams of the Base, RF, and Handset logic and RF sections.6. PCB Diagrams
Layouts of Printed Circuit Boards.7. Schematic Diagrams
Detailed circuit diagrams for Base, Handset, RF, and Charger.8. Troubleshooting
Guides for resolving issues with Handset Logic, Handset RF Module, Baseset, and Baseset RF Part.9. Test Jig Usage
Instructions for using test jigs for Baseset and Handset testing, including software installation and usage.Troubleshooting and error codes
| 8-4-3 Tx Lock Failure | |
| BRF3 | TX LOCK FAILURE |
| CW TEST MODE | |
| CHECK TX POWER AND TX FREQ | |
| NO | TX VCO RUNS |
| CHECK VCC OF U503 3. CHECK WORKING OF TX VCO CIRCUIT | |
| YES | RF SIGNAL IS FOUND AT C541 |
| NO | CHECK BIAS OF PIN 21, 22 OF U502 (PMB4220) |
| YES | PLL CONTROL DATS COME TO U502 FROM BMC |
| NO | CHECK PATTERNS BETWEEN U502 AND U5 (PMB5725)OF LOGIC PART |
| YES | CHECK Vtune AT TP (Vtune=2.0+/- 0.2V AT CH5) |
| NO | 1. CHECK 10.368MHz SIGNAL 2. CHECK VCO OF U502 (PMB4220) 3. CHECK PIN8(V=0.7±0.2V) OF U502 (PMB4220) 4. CHECK PIN9 (V=1.4±0.2V) OF U502 (PMB4220) |
| OK | OK |
| 8-4-4 Power Failure | ||
| BRF4 | TX POWER FAILURE | |
| TEST MODE | ||
| TX POWER LEVEL IS ABOUT -10dBm AT C541 | NO | CHANGE C541, C539 |
| YES | TX POWER LEVEL IS ABOUT +24dBm AT C523 | |
| NO | CHECK U501 (FMB5420) | |
| YES | TX POWER LEVEL IS ABOUT +24dBm AT C589 | |
| NO | CHECK POWER AMP PERFORMANCE | |
| YES | TX POWER LEVEL IS ABOUT +23dBm AT C599 | |
| NO | CHECK BIAS OF D503, D500 | |
| YES | TX POWER LEVEL IS ABOUT+23dBm AT ANT PAD | |
| NO | CHECK ANT PAD IS CONNECTED OR NOT | |
| YES | OK | |
| OK | OK | |
| 8-4-5 Tx Deviation Failure | ||
| BRF5 | TX DEVIATION FAILURE | |
| TEST MODE | ||
| DEVIATION IS WITHIN +/-202(OR259)~ +/-403 ACCORDING TO MODULATION PATTERN | YES | OK |
| NO | TX DATA LEVEL IS 2.4V FROM BMC | |
| NO | CHECK TX DATA WAVEFORM FROM PIN12 OF U5(PMB5725)OF LOGIC PART | |
| YES | CHECK GAUSSIAN FILTER VALUE IS OK | |
| YES | CHANGE COMPONENTS | |
| CHECK VARICAP DIODE D505 | ||
| OK | OK | |
| 8-4-6 Rx Data | ||
| BRF6 | NO RX DATA | |
| TEST MODE | ||
| NO RX DATA | NO | OK |
| YES | NOISY OR QUIT | |
| Quiet | CHECK VCC OF U501 AND THEN L505, C604, D507, C602, R601 | |
| Noisy | CHECK RX VCO PART AND FRONT-END INCLUDING BPF | |
| MODULATED IF SIGNAL IS FOUND AT PIN13,14 15, 16, 17 OF U500 | NO | CHECK TAC CIRCUIT C536, R518, C535 |
| YES | DATA SIGNAL IS FOUND AT PIN OF U501 | |
| NO | NO RX DATA | |
| 8-4-7 BER Failure | ||
| BRF7 | BER FAILURE | |
| TEST MODE | ||
| CHECK BER IS LESS THAN 0.001 AT -90dBm | YES | OK |
| NO | BPF IS OK | |
| NO | CHECK BPF INSERTION LOSS | |
| YES | VCC BIAS IS OK | |
| NO | CHECK C534, C525, C526 | |
| YES | QUAD CIRCUIT IS OK | |
| NO | CHECK L505, C604, C602 AND D507 | |
| YES | OK | |
