Brand: SAMSUNG
Category: TV
Document Type: Quick Start Guide
Language: EN

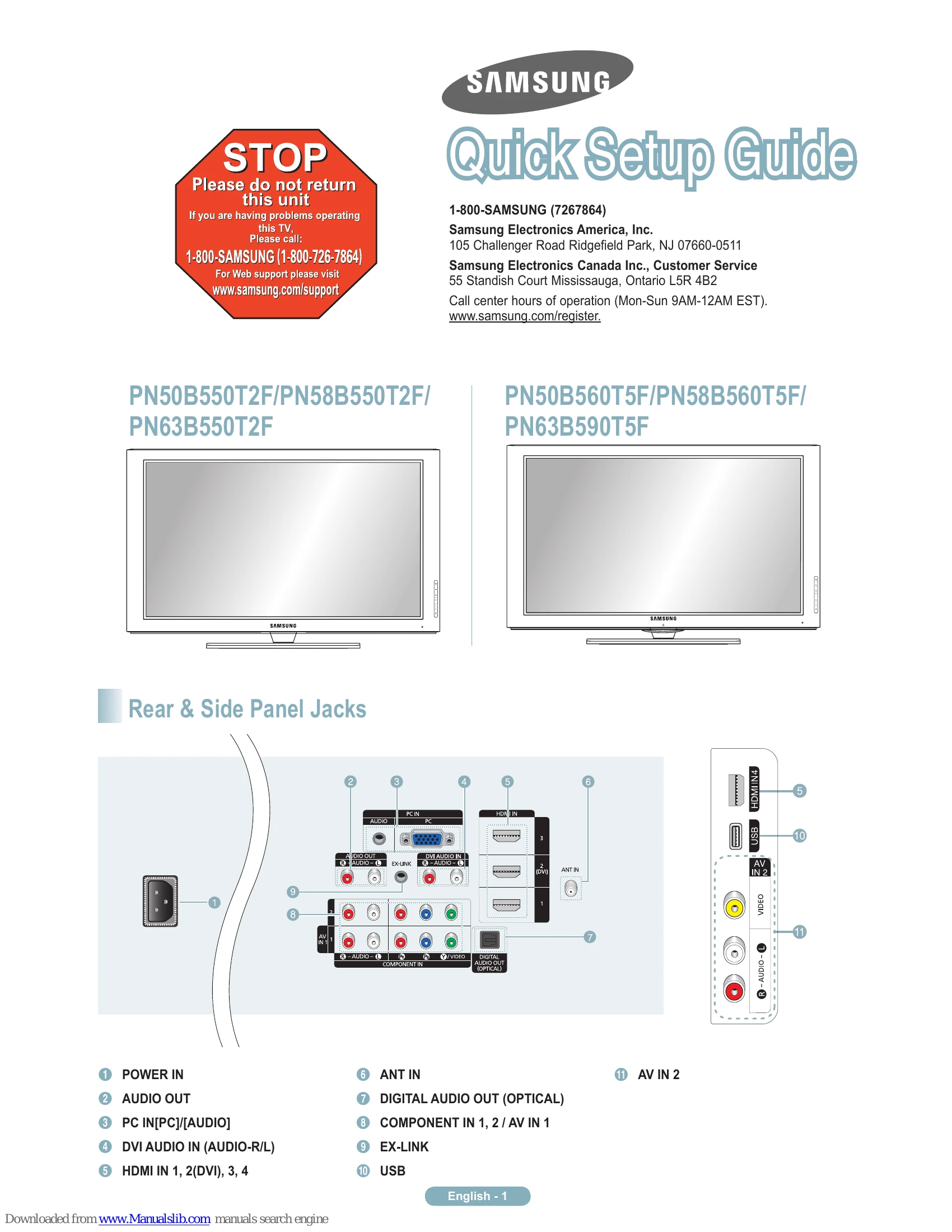

Quick Start Guide for PN50B550T2F
Uploaded: Nov. 21, 2025, 6:43 p.m.
Turning the TV On and Off
Press the POWER button on the remote control. You can also use the POWER button on the TV.
It may take a while for the picture to appear.
Viewing the Displays and Menus
Viewing the Display
1. Press the INFO button on the remote control. The TV will display the channel, the type of sound, and the status of certain picture and sound settings.
Viewing the Menus
1. With the power on, press the MENU button. The main menu appears on the screen. The menu's left side has icons: Picture, Sound, Channel, Setup, Input, Application, Support.
2. Press the ▲ or ▼ button to select one of the icons. Then press the ENTER button to access the icon's sub-menu.
3. Press the EXIT button to exit.
It takes about one minute until the on-screen menu disappears.
Memorizing the Channels
Your TV can memorize and store all of the available channels for both air and cable channels. After the available channels are memorized, use the CH ▲ or CH ▼ button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (Channel Lists).
Storing Channels in Memory (Automatic Method)
Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).
1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Channel, then press the ENTER button.
2. Press the ▲ or ▼ button to select Auto Program, then press the ENTER button.
3. Press the ▲ or ▼ button to select an antenna connection, then press the ENTER button.
Troubleshooting and error codes
| Problem | Possible Solution |
|---|---|
| Poor picture quality. | Try another channel. Adjust the antenna. Check all wire connections. |
| Poor sound quality. | Try another channel. Adjust the antenna. |
| No picture or sound. | Try another channel. Press the SOURCE button. Make sure the TV is plugged in. Check the antenna connections. |
| No sound or sound is too low at maximum volume. | Make sure the MUTE button is off. First, check the volume of units connected to your TV (digital broadcasting receiver, DVD, cable broadcasting receiver, VCR, etc.). Then, adjust the TV volume accordingly. |
| Picture rolls vertically. | Check all connections. |
| The TV operates erratically. | Unplug the TV for 30 seconds, then try operating it again. |
| The TV won't turn on. | Make sure the wall outlet is working. |
| Remote control malfunctions | Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals. Press the TV button to put your remote control in the TV mode. Make sure the remote has batteries. Check that the "+" and "-" ends of the batteries are inserted correctly. |
| Digital broadcasting screen problem. | Please check the digital signal strength and antenna input. |
| The image is too light or too dark. | Adjust the Brightness and Contrast. Adjust the Fine tuning. |
| The image is too large or too small. | Adjust the Size settings. |
| The visual qualities of digital channels vary. | The visual qualities of digital channels may vary depending on the original production method (analog or digital). If the original production method is digital: High visual quality. If the original production method is analog: The digital program displayed on the screen is originally an analog program which has been converted to digital. The visual quality is of an SD(Standard Definition) grade. |
| Screen is black and power indicator light blinks steadily. | On your computer; check the Power and Signal Cable. The TV is using its power management system. Move the computer's mouse or press any key on the keyboard. |
| Although the TV caption shows HD, the visual quality is not satisfactory. | On your equipment check (STB, DVD, etc); Power and Signal Cable. The TV is using its power management system. Press the Source button on the panel or remote control. Turn the TV off and on. The HD(High Definition) caption that appears when switching channels or when pressing the Information button on the remote control means the selected channel is a digital channel. If the broadcasting station converts an analog signal into digital and transmits the signal, the visual quality may not be perfect. |
| The distorted picture appears in the corner of the screen. | If Screen Fit is selected in some external devices, a distorted picture may appear in the corner of the screen. This symptom is caused by external devices, not the TV. |
| A strange sound is heard. | This is caused by minor systems operation and is not a defect. |
| Pixels are visible on the screen. | There may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. |
| A distorted picture appears in the corner of the screen. | This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. |
| This Plasma panel uses a panel consisting of sub pixels (6,220,800) which require sophisticated technology to produce. | However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. |
