Brand: SAMSUNG
Category: TV
Document Type: Manual
Language: EN
Manual for TSL3294HFX/XAA
Uploaded: Nov. 21, 2025, 9:25 p.m.
Manual Publish Date: 2001-02-01
Warranty Information
None

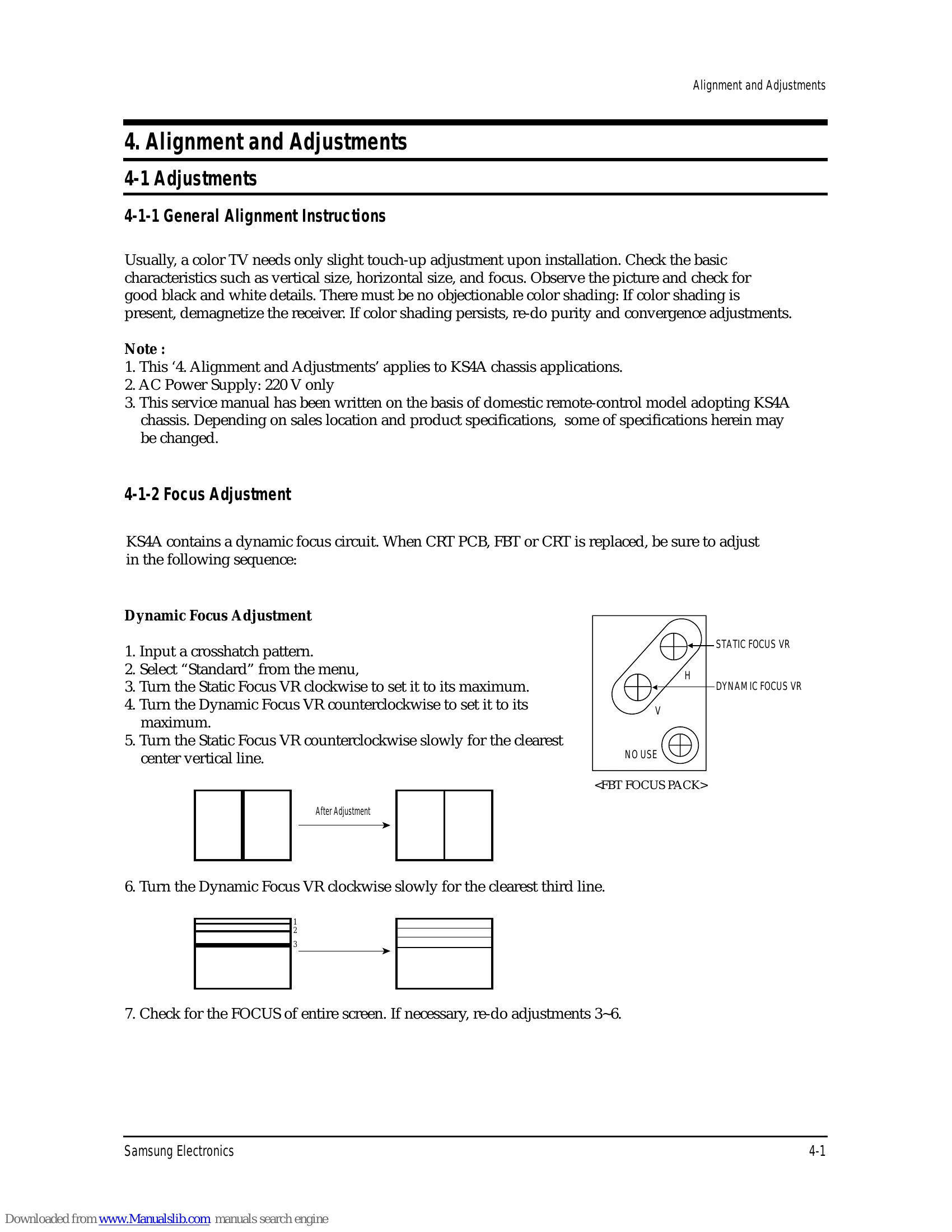

This manual provides detailed service information for the SAMSUNG COLOR TELEVISION RECEIVER, KS4A(N) chassis, including models TSL2795HFX/XAA, TSL3294HFX/XAA, and TSL3295HFX/XAA. It covers safety precautions, reference information, specifications, alignment and adjustments, troubleshooting, exploded views and parts lists, electrical parts lists, and block and schematic diagrams. Key sections include safety warnings for electrical shock and X-rays, detailed procedures for adjustments like focus, white balance, and sub-brightness, and extensive schematic diagrams of various TV sections such as main, power, CRT, Dolby, and more. The manual is intended for qualified service personnel.
Troubleshooting and error codes
| DESCRIPTION | VS | VA | VL | VSC | VE | HA | PPH | PAM | ||||
| V-SHIFT | V-SIZE | V-LINE | V-S CORR | V-V EHT | H-SIZE | PIN PHS | PIN AMP | |||||
| RF Mode | 85 | 100 | 95 | 135 (FIXED) | 42 (FIXED) | 145 | 50 | 45 | ||||
| 29" FLAT | 480P Mode | 115 | 100 | 100 | 135 (FIXED) | 42 (FIXED) | 145 | 80 | 40 | |||
| 1080i Mode | 95 | 30 | 95 | 135 (FIXED) | 42 (FIXED) | 130 | 40 | 55 | ||||
| PC Mode | 100 | 80 | 105 | 130 (FIXED) | 42 (FIXED) | 120 | 85 | 40 | ||||
| RF Mode | 65 | 140 | 120 | 80 (FIXED) | 42 (FIXED) | 145 | 30 | 40 | ||||
| 34" FLAT | 480P Mode | 100 | 140 | 120 | 80 (FIXED) | 42 (FIXED) | 140 | 50 | 40 | |||
| 1080i Mode | 80 | 70 | 110 | 80 (FIXED) | 42 (FIXED) | 120 | 30 | 40 | ||||
| PC Mode | 80 | 100 | 110 | 100 (FIXED) | 42 (FIXED) | 130 | 35 | 40 | ||||
| RF Mode | 80 | 110 | 110 | 30 (FIXED) | 100 (FIXED) | 140 | 55 | 35 | ||||
| 32" WIDE | 480P Mode | 110 | 115 | 115 | 30 (FIXED) | 100 (FIXED) | 140 | 70 | 35 | |||
| 1080i Mode | 85 | 50 | 105 | 30 (FIXED) | 100 (FIXED) | 130 | 35 | 40 | ||||
| PC Mode | 90 | 70 | 115 | 30 (FIXED) | 100 (FIXED) | 115 | 85 | 30 | ||||
| DESCRIPTION | UPC-CORR | LOC-CORR | HEH | HS-SHIFT | VAN-ANGLE | VBO-BOW | HSP-H-SYC-PH | |||||
| RF Mode | 150 | 30 | 12(FIXED) | 110 | 95 | 125 | 138 (FIXED) | |||||
| 29" FLAT | 480P Mode | 155 | 90 | 12(FIXED) | 35 | 100 | 130 | 133 (FIXED) | ||||
| 1080i Mode | 170 | 35 | 12(FIXED) | 35 | 95 | 125 | 139 (FIXED) | |||||
| PC Mode | 140 | 95 | 12(FIXED) | 85 | 95 | 120 | 140 (FIXED) | |||||
| RF Mode | 150 | 30 | 12(FIXED) | 115 | 130 | 130 | 138 (FIXED) | |||||
| 34" FLAT | 480P Mode | 155 | 50 | 12(FIXED) | 35 | 120 | 130 | 133 (FIXED) | ||||
| 1080i Mode | 170 | 30 | 12(FIXED) | 35 | 130 | 125 | 139 (FIXED) | |||||
| PC Mode | 115 | 30 | 12(FIXED) | 85 | 130 | 125 | 140 (FIXED) | |||||
| RF Mode | 155 | 100 | 12(FIXED) | 110 | 120 | 135 | 138 (FIXED) | |||||
| 32" WIDE | 480P Mode | 135 | 90 | 12(FIXED) | 45 | 115 | 130 | 133 (FIXED) | ||||
| 1080i Mode | 170 | 80 | 12(FIXED) | 50 | 115 | 125 | 139 (FIXED) | |||||
| PC Mode | 165 | 120 | 12(FIXED) | 85 | 120 | 135 | 140 (FIXED) | |||||
| DESCRIPTION | RDR | GDR | BDR | RCT | GCT | BCT | ||||||
| R-DRIVE | G-DRIVE | B-DRIVE | R-CUT OFF | G-CUT OFF | B-CUT OFF | |||||||
| 29" 34" FLAT | 32 | 32 (FIXED) | 32 | 20 | 20 (FIXED) | 20 | ||||||
| 32" WIDE | 20 | 20 (FIXED) | 20 | 20 | 20 (FIXED) | 20 | ||||||
| DESCRIPTION | SBT | CON | COL | HUE | GAM | |||||||
| SUB-BRT | UB-CON | UB-COL | SUB-HUE | GAMMA | ||||||||
| 29" 34" FLAT | 35 | 5 | 12(FIXED) | 5 (FIXED) | 10 (FIXED) | |||||||
| 32" WIDE | 25 | 5 | 8 | 5 (FIXED) | 7 (FIXED) | |||||||
| DESCRIPTION | VML | VM-LEVEL | ||||||||||
| 29" 34" FLAT | RF: 38 | 480: 48 | 1080: 58 | PC: 68 | ||||||||
| 32" WIDE | 245 (FIXED) | 112 (FIXED) | 112 (FIXED) | 88 (FIXED) | ||||||||
| 117 (FIXED) | 112 (FIXED) | 112 (FIXED) | 88 (FIXED) | |||||||||
| W/B | ||||||||||||
| H/L | L/L | |||||||||||
| 34" | x:275, y:295, y:45 | x:275, y:265, y:2 | ||||||||||
| 32" | x:275, y:265, y:50 | x:275, y:265, y:2.5 | ||||||||||
| 29" | x:262, y:264, y:45 | x:250, y:250, y:2 | ||||||||||
