Brand: SANYO
Category: Air Conditioner
Document Type: Manual
Language: EN

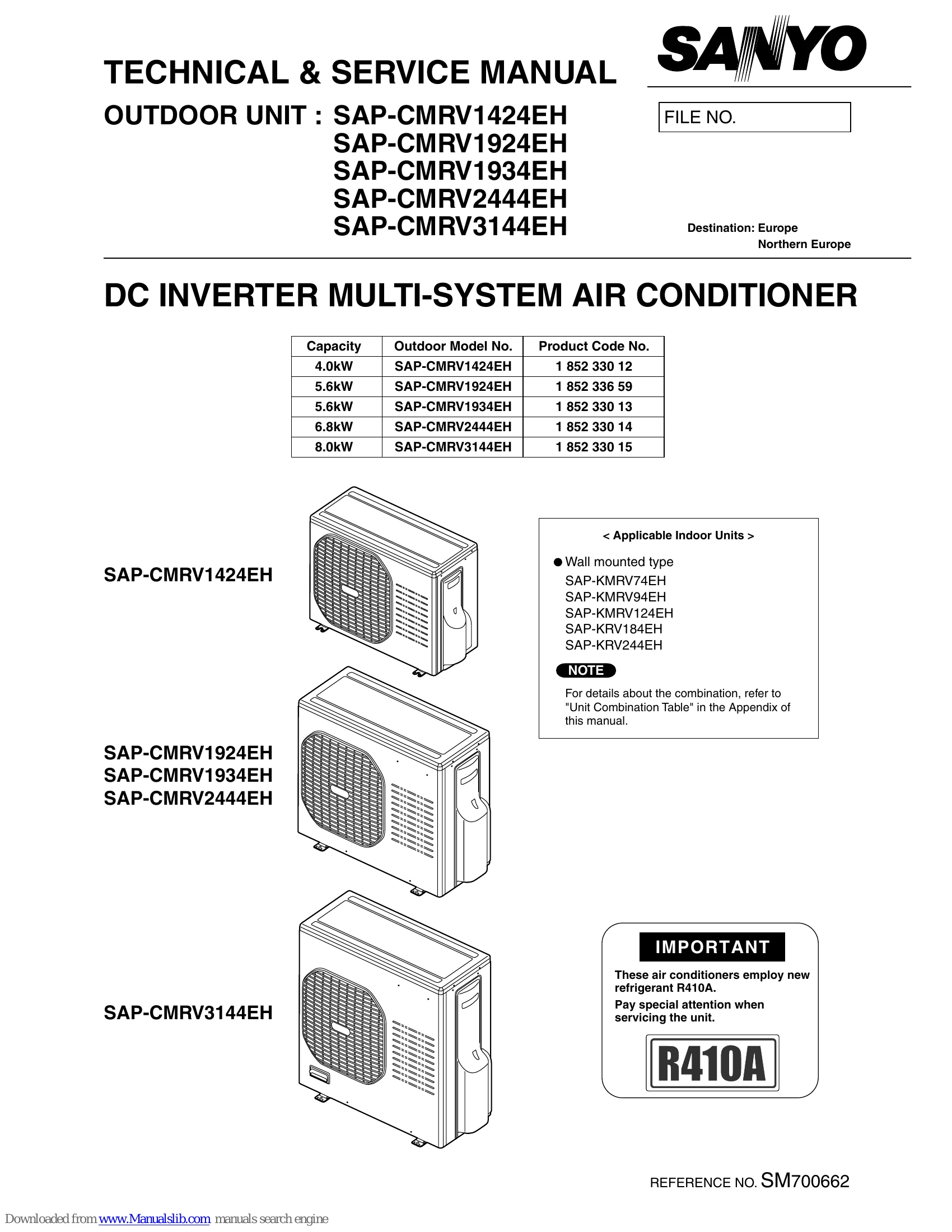

Manual for SAP-CMRV1424EH
Uploaded: Nov. 21, 2025, 7:08 p.m.
Manual Publish Date: 2006-03-01
- Cooling and Heating: The system provides both cooling and heating functions.
- Multi-System: It supports connecting multiple indoor units to a single outdoor unit.
- Applicable Indoor Units: Lists compatible indoor unit models like SAP-KMRV74EH, SAP-KMRV94EH, etc.
- Operating Range: Specifies the temperature ranges for indoor and outdoor air intake during cooling and heating.
- Capacity: Details the cooling and heating capacities in kW and BTU/h.
- Electrical Specifications: Provides voltage, current, power input, power factor, EER, and COP.
- Refrigerant: Uses R410A refrigerant and specifies the amount charged at shipment.
- Dimensions and Weight: Includes the physical dimensions and weight of the outdoor unit.
- Troubleshooting: Offers guidance for diagnosing problems by error lamps, checking systems, and part diagnosis.
- Safety Precautions: Emphasizes safety measures for installation, servicing, and handling of refrigerant.
Troubleshooting and error codes
| 8-2. Trouble Diagnosis by Error Monitor Lamps | 42 |
|---|---|
| 8-3. Checking the Outdoor System | 43 |
| 8-4. Trouble Diagnosis of Each Part | 44 |
| 8-5. Trouble Diagnosis of Fan Motor | 47 |
