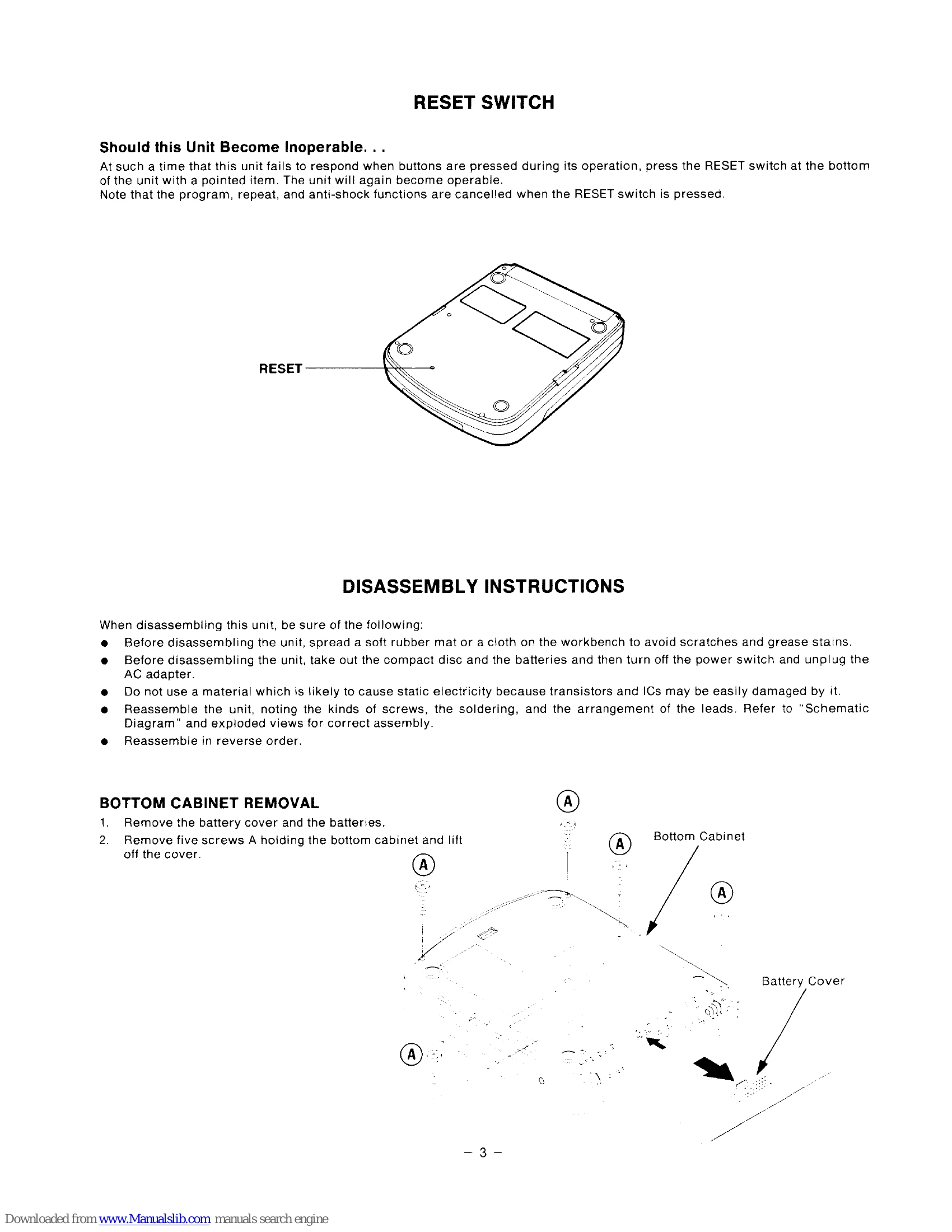

Should this Unit Become Inoperable...

At such a time that this unit fails to respond when buttons are pressed during its operation, press the RESET switch at the bottom of the unit with a pointed item. The unit will again become operable.

Note that the program, repeat, and anti-shock functions are cancelled when the RESET switch is pressed.

DISASSEMBLY INSTRUCTIONS

When disassembling this unit, be sure of the following:

• Before disassembling the unit, spread a soft rubber mat or a cloth on the workbench to avoid scratches and grease stains.
• Before disassembling the unit, take out the compact disc and the batteries and then turn off the power switch and unplug the AC adapter.
• Do not use a material which is likely to cause static electricity because transistors and ICs may be easily damaged by it.
• Reassemble the unit, noting the kinds of screws, the soldering, and the arrangement of the leads. Refer to "Schematic Diagram" and exploded views for correct assembly.
• Reassemble in reverse order.

BOTTOM CABINET REMOVAL

1. Remove the battery cover and the batteries.
2. Remove five screws A holding the bottom cabinet and lift off the cover.
