Brand: SANYO
Category: Audio
Document Type: Manual
Language: EN
Manual for CP10
Uploaded: Nov. 21, 2025, 6 p.m.

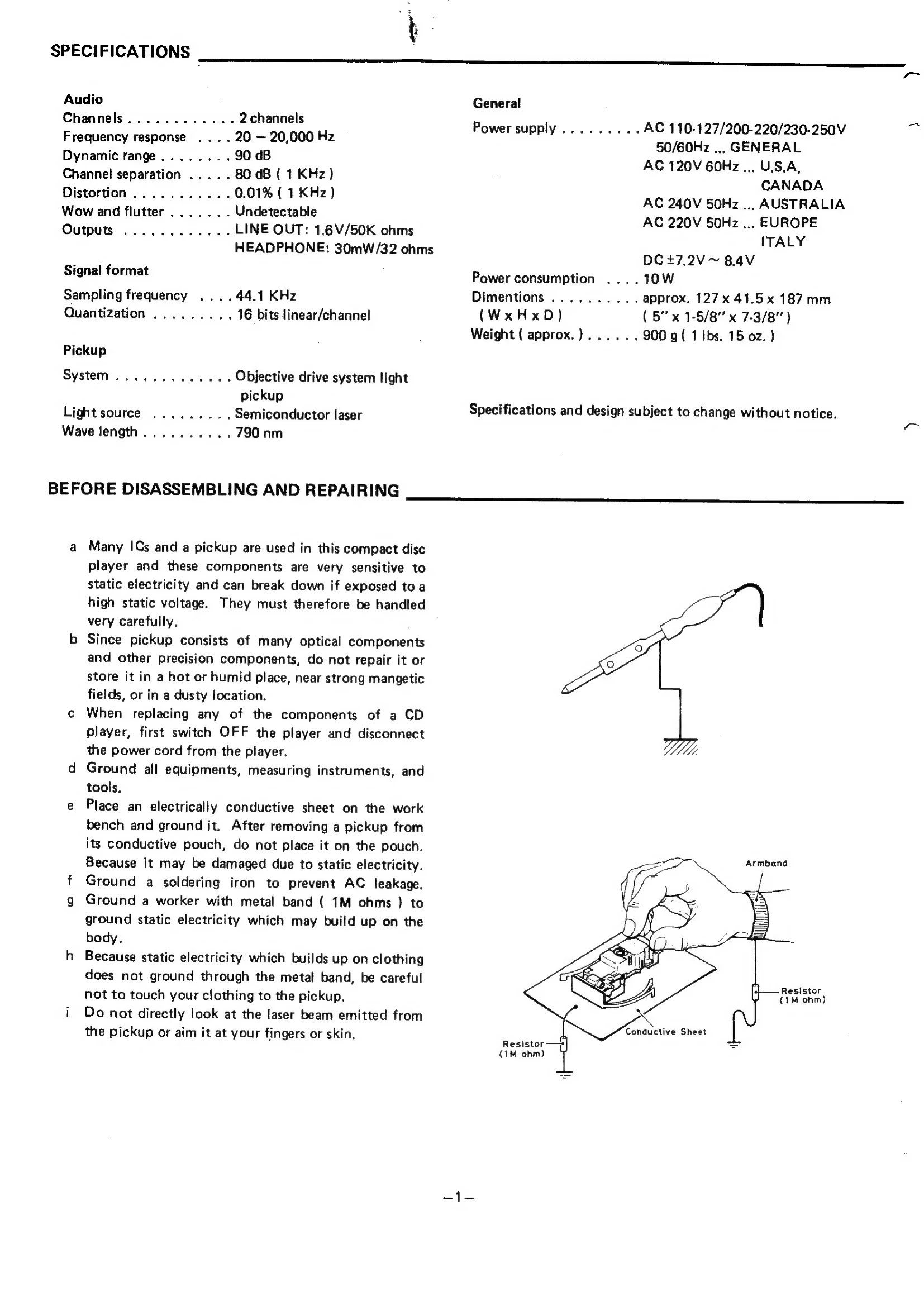

This service manual provides detailed information for the SANYO CP10 Compact Disc Player. It covers specifications, disassembly and repair precautions, laser beam control circuit description, pickup details, adjustment procedures, block diagrams, wiring diagrams, schematics, and troubleshooting flow charts. Key operations involve setting up the service mode, focus offset adjustment, tracking balance adjustment, PLL VCO adjustment, focus gain adjustment, and tracking gain adjustment. The manual also includes parts lists for various components and boards.
Troubleshooting and error codes
| TROUBLE | SYMPTOM | CHECK ITEM |
| No power | No display, No sound | AC power cord, Power switch, Fuse, Transformer, Power supply circuit. |
| No display | No sound | LCD check, IC501 function, Power ON/OFF signal. |
| Disc does not rotate | No display, No sound | PLAY key, IC501 pin 35, DC power supply, Sled motor operation, IC401/IC501 checks. |
| Disc starts rotating, but no sound | No display | DC Power Block output, IC501 pin 28, Sled motor operation, Focus servo status. |
| No sound, or distorted sound | Player stops after several seconds | Focus search operation, laser emission, IC501 pin 21, IC501 pin 21 soldering, focus offset, tracking servo, RF waves. |
| No sound, or distorted sound | Servo normal, but no sound | Laser emission, tracking servo, RF waves, PLL VCO, GFS signal, skip search, focus tracking gain, mechanism check. |
