Service Mode Operations:
- Market/Region Setup: Essential for initial setup, after system updates, or DVD substrate replacement. Access via "No Disc" display, then "stop + power" simultaneously followed by "play".
- Software Loading: Load MPEG P.W.Board software via CD-ROM. Requires powering on, opening the tray, inserting the update CD-ROM, and following on-screen prompts.
- PWB/IC Assy Exchange: After exchanging main boards or ICs, load the newest software via CD-R and verify operation.
- Tunner Adjustment: Includes IF adjustment, cover adjustment, and tracking. Requires a plastic screwdriver.

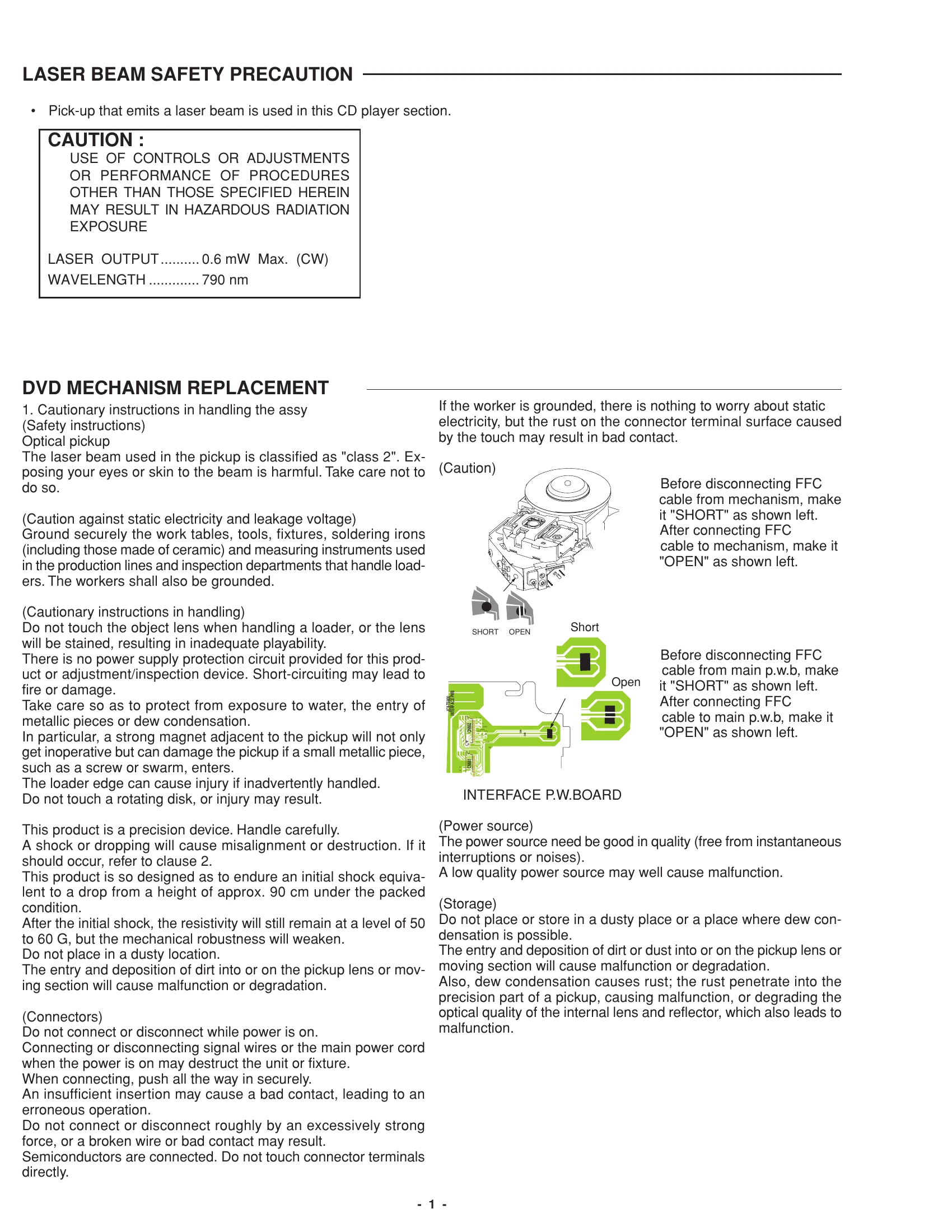

General Cautions:
- Handle optical pickups with care due to laser beam exposure risk.
- Ground all equipment and personnel to prevent static discharge.
- Avoid touching optical lenses to prevent staining.
- Protect from water, metallic pieces, and strong magnets.
- Handle the device carefully to avoid shocks or drops.
- Do not operate in dusty locations.
- Do not connect/disconnect power or signal wires while the unit is on.
- Ensure secure connections for all cables.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power | Power cord not connected. | Connect power cord securely. |
| No Display | Display cable loose or disconnected. | Check and secure display cable. |
| No Sound | Audio cables not connected properly. | Connect audio cables securely. |
| Disc cannot be read | Dirty lens or disc. | Clean lens or disc. |
| Region Undefined message | Market/Region setting is missing. | Perform Market/Region setup in Service Mode. |
