Warranty Information
This warranty covers defects due to faulty material or workmanship for 12 months from the date of sale.

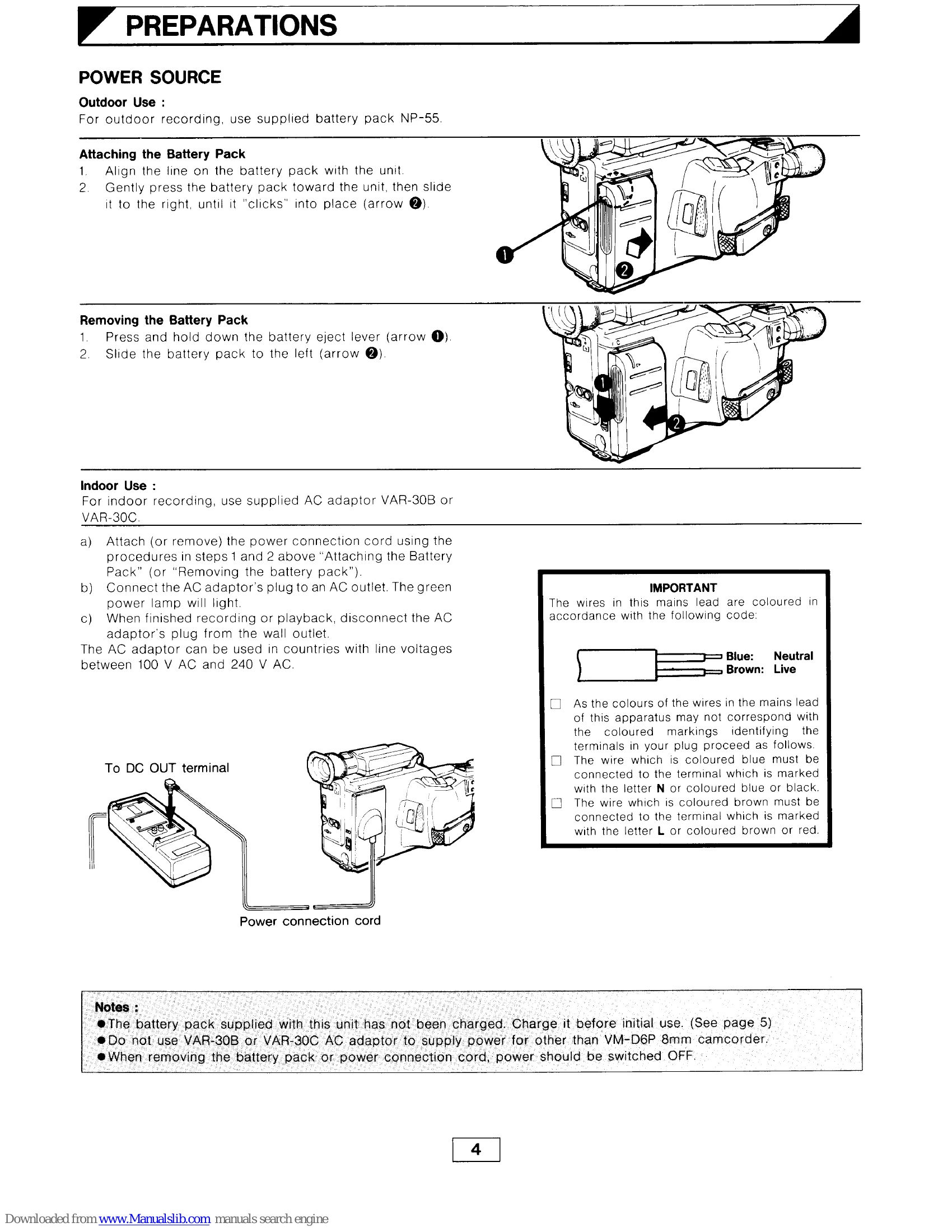

Power Source
Outdoor Use: Attach the NP-55 battery pack by aligning the line on the pack with the unit and sliding it right until it clicks. Indoor Use: Attach the power connection cord, plug the AC adaptor into an outlet. Green power lamp will light. Disconnect plug when finished.Charging
Plug AC adaptor into outlet. Attach battery pack by aligning line marks and pressing down. Charge lamp will light. Charge lamp changes to yellow when fully charged. Slide battery pack in opposite direction to disconnect.Loading Cassette
Switch power on. Slide EJECT switch. Cassette holder opens. Insert cassette gently.Camera Recording
Set FOCUS to AUTO, WHITE BALANCE to AUTO. Set REC MODE/EDIT to SP or LP. Switch power on. Slide EJECT. Insert cassette. Press REC START/STOP to start recording. Press again to pause. Repeat to continue. Eject cassette and switch off power when finished.Playback
Switch power on. Slide EJECT. Insert recorded cassette. Press STOP button. Press PLAY button. Playback begins. Press STOP to stop. Connect earphone for sound.Troubleshooting and error codes
| Symptom | Probable cause | Remedy | Page |
| No power. | Battery pack is exhausted. | Replace with a charged battery pack. | 5 |
| AC adaptor is turned off. | Turn on the power. | 4 | |
| Nothing happens even with batteries attached. | Moisture exists. | Wait for DEW symbol to disappear. | 34 |
| Power is suddenly turned off during use. | Battery pack is exhausted. | Replace with a charged battery pack. | 5 |
| Stop mode or pause mode is continued for 5 minutes or longer. | Turn on the power again. | - | |
| Can't record. | No cassette. | Insert a cassette | 6 |
| Cassette is set for erase prevention. | Reset cassette's switch, or insert another cassette. | 6 | |
| Tape has been wound to its end. | Rewind the tape, or insert another cassette. | - | |
| Can't focus. | The subject is difficult to focus. | Adjust the focus manually. | 21, 22 |
| Distance to subject is less than 1.2 m. | Move away, or use macro feature. | 17 | |
| No picture on the TV | Wrong connection. | Correct the connection. | 26 |
| Playback picture flickers or blurs. | Video heads are dirty. | Clean them. (If this does not help, heads may need to be replaced.) | - |
