Brand: SANYO
Category: Camcorder
Document Type: Manual
Language: EN
Manual for VM-EX220P
Uploaded: Nov. 21, 2025, 9:19 p.m.
Warranty Information
No specific warranty period is mentioned in the provided pages.

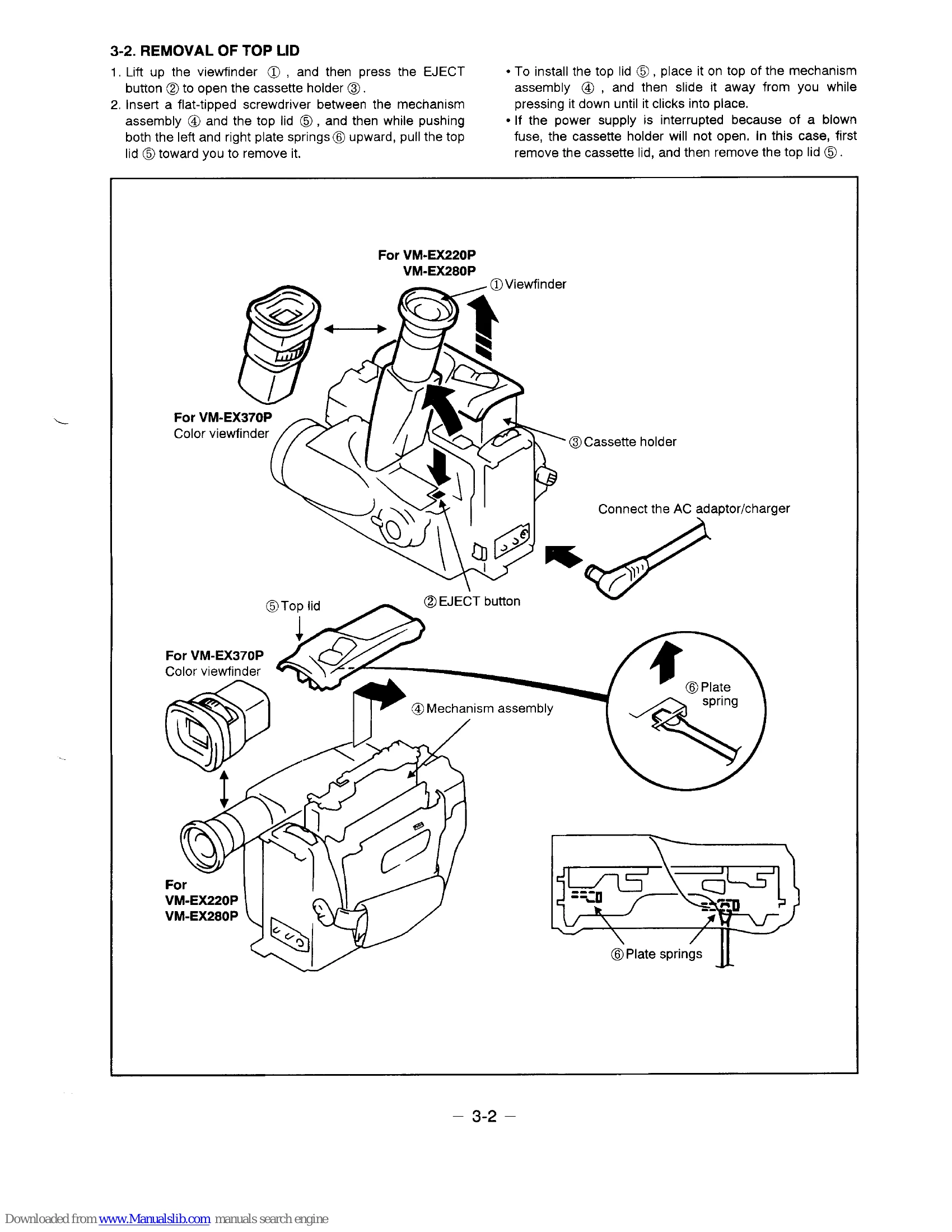

- Basic Operation: This manual is for the SANYO VM-EX220P 8mm camcorder. It details adjustment procedures and troubleshooting. Key sections include disassembly instructions, electrical adjustments (camera and VTR blocks), block diagrams, and waveform/voltage charts.
- Adjustment Process: Specific steps are provided for camera and VTR block adjustments, including setup, connection, and order of operations. Tools and equipment required for servicing are listed.
- Troubleshooting: A comprehensive troubleshooting guide helps diagnose and resolve common issues such as 'No Picture', 'Incorrect Auto White Balance', 'Power Loss', and 'Drum Does Not Rotate', with step-by-step diagnostic flows.
Troubleshooting and error codes
| SUBINDEX | Page |
|---|---|
| Auto-focus Inoperative | 8-2 |
| Capstan Does Not Rotate | 8-3 |
| Drum Does Not Rotate | 8-3 |
| Eject Inoperative | 8-4 |
| Incorrect Auto Exposure | 8-2 |
| Incorrect Auto Iris | 8-2 |
| Incorrect Auto White Balance | 8-2 |
| Loading Inoperative | 8-3 |
| No AF/MF Change And Power Zoom Inoperative | 8-2 |
| No Color | 8-1 |
| No EE-Audio | 8-7 |
| No EE-Chroma | 8-6 |
| No EE-Video Monitor | 8-5 |
| No EVF Raster | 8-8 |
| No Picture | 8-1 |
| No Picture In EVF | 8-5 |
| No Play Audio | 8-7 |
| No Play Chroma | 8-5 |
| No Play Video | 8-6 |
| No Record Audio | 8-7 |
| No Record Chroma | 8-5 |
| No Record Video | 8-6 |
| Noisy Picture Only When Prerecorded Tape Is Played Back | 8-6 |
| No VF Video | 8-8 |
| On-Screen Display Inoperative (Servo/System Control) | 8-4 |
| On-Screen Display Inoperative (Video) | 8-5 |
| Play Mode Inoperative | 8-4 |
| Power Loss/Power Switch Inoperative | 8-4 |
| Power Zoom Inoperative | 8-2 |
| Record Mode Inoperative | 8-3 |
