Manual for VPC-T1496

Manual for VPC-T1496

Brand: SANYO

Category: Digital Camera

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:03 p.m.

Warranty Information

Refer to the provided documentation for warranty details.

Getting Started

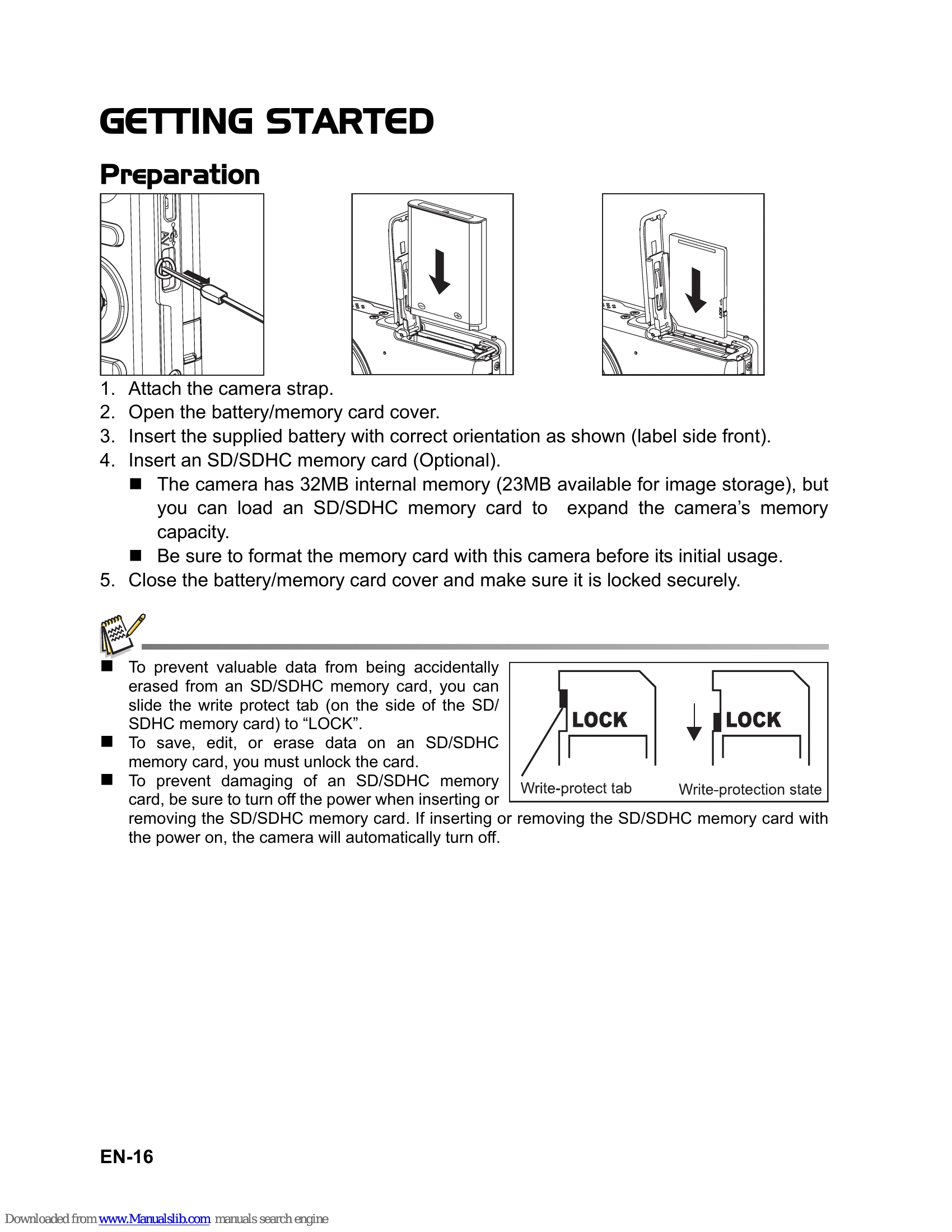

  1. Preparation: Attach camera strap, open battery/memory card cover, insert battery (correct orientation, label side front), insert SD/SDHC memory card (optional), format memory card, and close/lock cover.
  2. Charging the Battery: Connect camera to USB-AC adapter, plug into wall outlet, select [Charge] and press SET. LED indicates charging status.
  3. Initial Settings: Turn on camera, select language, date/time format, and set date/time.
  4. Choosing the Language: Access Setup menu, select Language, choose desired language, and save.
  5. Formatting the Memory Card or Internal Memory: Access Setup menu, select Format, choose Execute, and confirm.

Capturing Images

  1. Turn on camera and set to Capture mode.
  2. Compose image on LCD monitor using zoom lever.
  3. Press shutter button halfway to focus/adjust exposure; press fully to capture.

AF Tracking Mode

  1. Set camera to AF Tracking mode.
  2. Press button to select tracking subject.
  3. Press shutter button to capture.

Setting the Scene Mode

  1. Set camera to Scene mode.
  2. Select desired scene mode (e.g., Program AE, Auto, Intelligent Scene).
  3. Compose image and press shutter button.

Troubleshooting and error codes

Symptom Cause Solutions / Corrective Actions
The power does not come on. The battery is not inserted. Insert the battery correctly.
The battery is exhausted. Recharge the battery.
The battery runs out quickly. The battery is not fully charged. Fully charge the battery and discharge it for at least one complete cycle before use to maximize its performance and lifetime.
The battery is not used for an extended period of time after being charged. Fully charge the battery and discharge it for at least one complete cycle before use to maximize its performance and lifetime.
The battery or camera feels warm. Long period of continuous use of the camera or the flash. Press the shutter button all the way down.
Even if press the shutter button, the camera does not take a picture. The shutter button is not pressed all the way down. Press the shutter button all the way down.
The memory card does not have any free capacity. Insert a new memory card, or delete unwanted files.
Images do not appear on the LCD monitor. LCD monitor is dark. Adjust the brightness of the LCD monitor in the menu.
Although it is set to auto focus, it does not focus. The lens is dirty. Wipe clean with a soft, dry cloth or lens paper.
The distance to the subject is smaller than the effective range. Get your subject within the effective focus range.
The contents on the memory card cannot be played back. You played back a memory card that was not formatted by this camera. Insert a memory card that was formatted on this camera.
Files cannot be deleted. The file is protected. Cancel protection.
The memory card is write-protected. Remove the write-protection.
Even when the camera's buttons are pressed, it does not operate. The battery is running low. Recharge the battery.
The date and time are wrong. The correct date and time is not set. Set the correct date and time.
Cannot download images. The free space on the hard disk in your computer may be insufficient. Check whether the hard disk has space for running Windows, and if the drive for loading image files has a capacity at least that of the memory card inserted in the camera.
No power supply. Recharge the battery.
