Brand: SANYO
Category: Refrigerator
Document Type: Brochure/Marketing
Language: EN

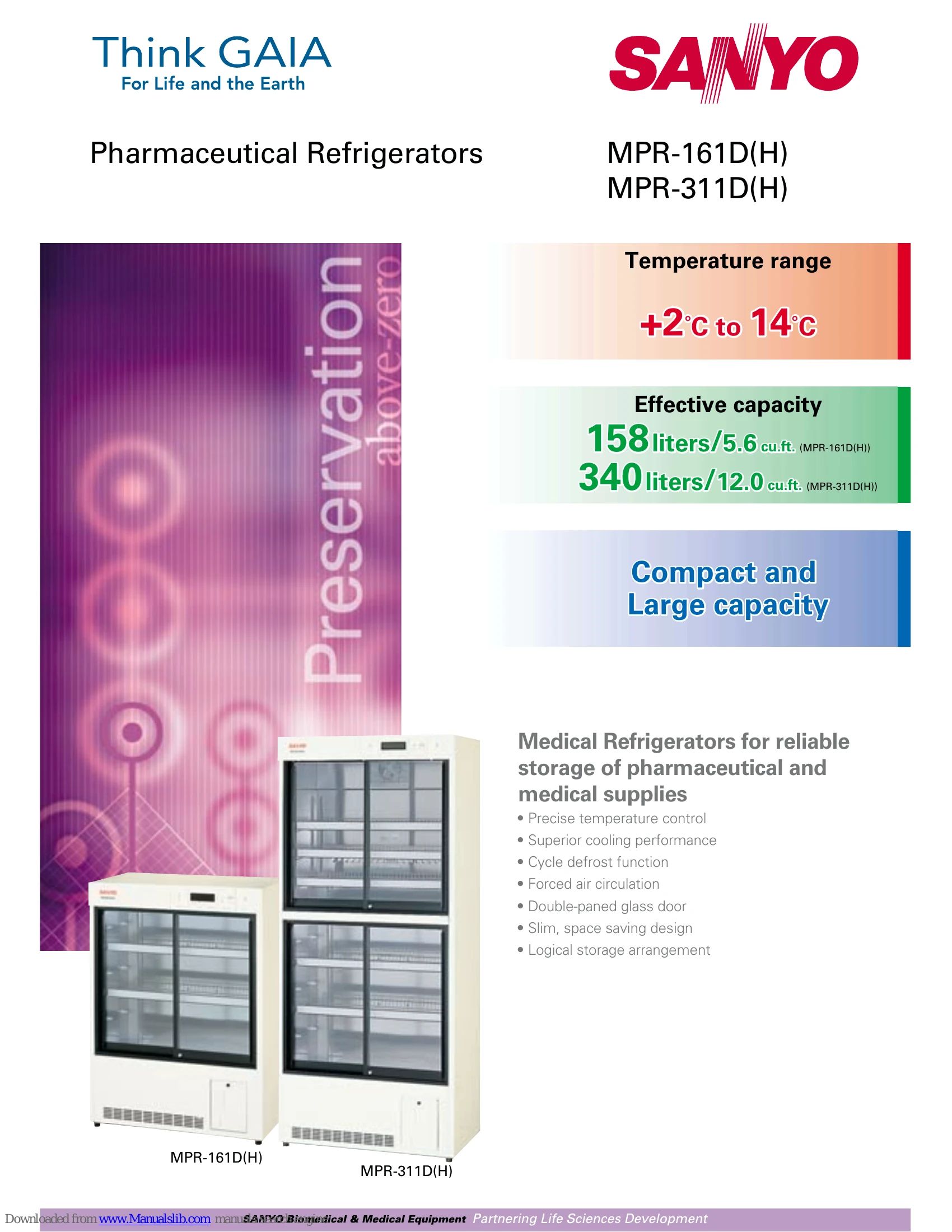

Brochure/Marketing for MPR-311D(H)
Uploaded: Nov. 21, 2025, 8:14 p.m.
Manual Publish Date: 2009-09-01
Warranty Information
SANYO guarantees the product under certain warranty conditions. No responsibility for content loss or damage.
Features
Remarkable Cooling Efficiency: Utilizes a highly efficient hermetic compressor for powerful, immediate cooling, maintaining stable internal temperatures. Ideal for frequently opened pharmaceutical refrigerators.
Effective Temperature Control: Features an electric temperature control system with a thermistor sensor and microprocessor to maintain set temperatures. Fan-forced air circulation ensures even cooling throughout the cabinet.
Cyclical Defrosting System: Defrosting occurs without significant temperature increase, with a temporary rise to approximately 10°C during the process.
Digital Temperature Display: Easy-to-read display shows current operating temperature with 1°C graduations for temperatures between 0°C and 15°C.
Easy-to-Use, Newly Designed Doors: Double-paned glass doors with heat-reflective film prevent UV rays from damaging stored items and maintain internal temperature. A door open alarm with a buzzer sounds after 30 seconds if the door is not closed.
Abnormal Temperature and Safety Devices: Includes alarms for temperatures outside the 0°C to 15°C range, and safety devices to prevent freezing or overheating.
Troubleshooting and error codes
| MPR-161D(H) | MPR-311D(H) |
|---|---|
| 800 x 450 x 1,090mm (31.4" x 17.7" x 42.9") | 800 x 450 x 1,800mm (31.4" x 17.7" x 70.8") |
| 720 x 300 x 725mm (28.3" x 11.8" x 28.5") | 720 x 350 x 1,435mm (28.3" x 13.8" x 56.4") |
| 158 liters (5.6 cu.ft.) | 340 liters (12.0 cu.ft.) |
| 59kg (129 lbs.) | 90kg (198 lbs.) |
| Galvanised steel with baked-on finish | |
| Stainless steel | |
| Polyurethane foam | |
| Sliding glass doors, double-paned glass with heat-reflective film | |
| Rigid wire with polyethylene coating | |
| 30mm Ø on back wall | |
| 20W fluorescent lamp / 2 casters | 20W fluorescent lamp / 2 casters |
| Hermetic type, 90W | Hermetic type, 160W |
| HFC | |
| Fin & Tube, Forced-air circulation | |
| Wire & Tube | |
| Cyclical defrosting & evaporator temp. detection system | |
| 101W | 114W |
| 2 to 14°C | |
| Digital (display range: 0 to 15°C) | |
| Flashing digital indicator [above 15°C], Buzzer [above 15°C], High-temp. indicator lamp [above approx. 20°C] | |
| Flashing digital indicator [below 0°C], Buzzer [below 0°C] | |
| Buzzer / door ajar lamp | |
| Strip Chart Recorder (MTR-0621LH), Recorder Mounting Bracket (MDF-53RO) | |
