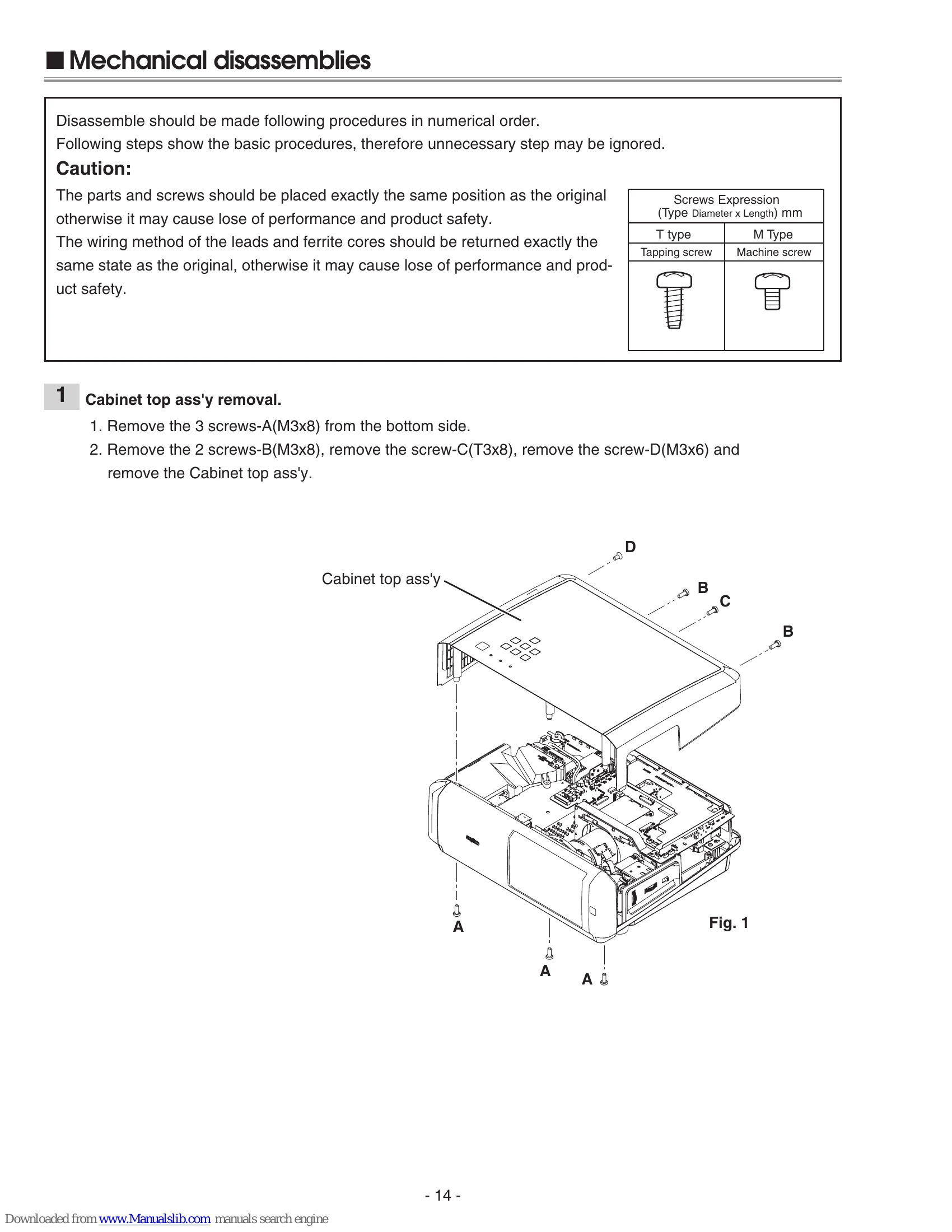

Parts/Service for PLV-Z5
Uploaded: Nov. 21, 2025, 8:01 p.m.
Safety Instructions:
- Always use an isolation transformer when servicing.
- Ensure all protective devices are properly installed before closing the cabinet.
- Never operate the projector without the protective shield in place.
- Turn off the lamp before opening the cover and allow the projector to cool for at least 45 minutes before lamp replacement.
- Clean the optical unit using air spray or disassembly cleaning with a soft cloth and alcohol for stubborn dirt.
- Clean RGB panels using the supplied air blower and the Cleaning function in the Setting Menu.
- Clean air filters regularly by removing and brushing them. Do not wash them.
- Clean the projection lens with a non-abrasive cloth and lens cleaner.
- Clean the projector cabinet with a dry soft cloth, or mild detergent if heavily soiled.
- Replace the lamp when the LAMP REPLACE indicator lights yellow.
- Allow the projector to cool for at least 45 minutes before replacement.
- Reset the lamp replacement counter after replacing the lamp.
Troubleshooting and error codes
| Trouble | Possible Cause | Remedy |
|---|---|---|
| No Power | No power supply | Check power cord connection and outlet. |
| No Picture | Lamp exhausted | Replace the lamp. |
| WARNING indicator is flashing | Abnormal temperature | Check air filters, ventilation slots, and ambient temperature. |
| WARNING indicator is red | Cooling fans or power supply failure | Check fans and power supply lines. |
