Brand: SANYO
Category: Video
Document Type: Parts/Service
Language: EN
Parts/Service for VMC-L2619P
Uploaded: Nov. 21, 2025, 8:29 p.m.
Warranty Information
None
Basic Operation & Maintenance:
- Safety Precautions: Emphasizes the importance of following safety guidelines, especially regarding electrical shock hazards and using authorized replacement parts. An AC leakage current check is detailed for safety before returning the unit to the customer.
- Lead-Free Solder: This product uses lead-free solder. When performing repairs, it is crucial to use lead-free solder and a soldering iron with adjustable temperature up to 450°C (842°F). Specific temperature settings are provided for different components.

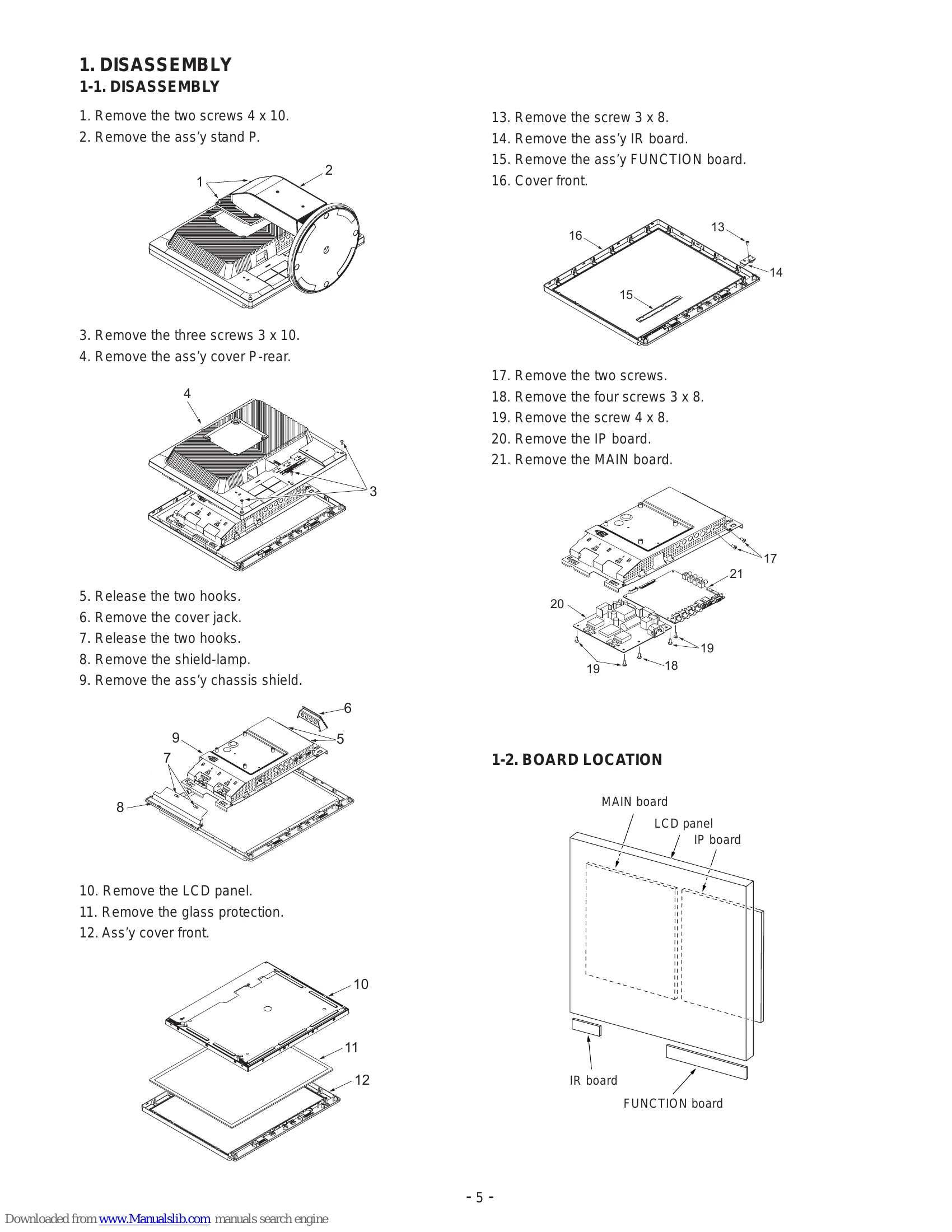

- Disassembly: Provides a step-by-step guide for disassembling the monitor, including removing the stand, covers, and various internal boards.
- Program Upgrade: Outlines the procedure for upgrading the FLASH memory (MICOM program) for specific issues like unresponsive controls or no screen display.
- Factory Mode Adjustments: Details how to enter and navigate the service mode for calibration, white balance, and other adjustments.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Screen appears but remote control and function key aren't working | FLASH chip issue | Change FLASH |
| LED is on but the screen doesn't appear | FLASH chip issue | Change FLASH |
| Screen tilt adjustment causes damage | Improper adjustment | Ensure not to damage screen; check cables after adjustment. |
