Brand: SEALEY
Category: Air Cooler
Document Type: Manual
Language: EN

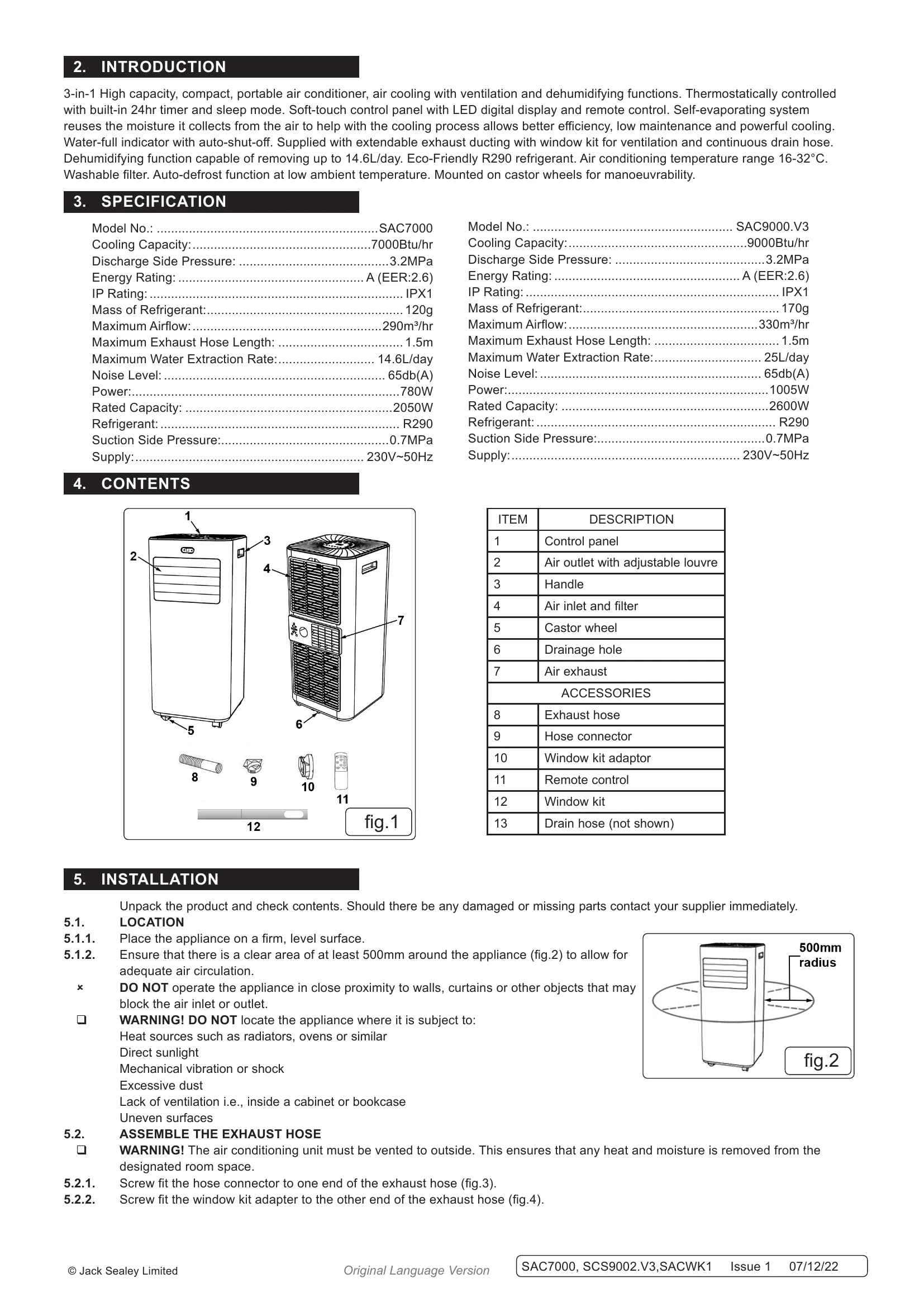

Manual for SAC7000, SAC9002.V3, SACWK1
Uploaded: Nov. 21, 2025, 7 p.m.
Manual Publish Date: 2022-12-07
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.
- Start Up & Shutdown: Press POWER to turn ON/OFF. Use MODE to select cooling, dehumidifier, or fan.
- Cooling: Select COOL mode, adjust temperature (16-32°C) with UP/DOWN, and set fan speed (HIGH/LOW).
- Ventilate: Select FAN mode, adjust fan speed. Note: This circulates air, does not cool.
- Drying: Select DRY mode. Connect the drain hose. Fan speed is set to low and cannot be changed.
- Sleep Mode: Activate via remote control when in COOL mode. Temperature increases by 1°C after 1 and 2 hours.
- Timer: Set for automatic start/stop (1-24 hours) using the TIMER button.
- Defrost: Automatic defrost occurs at low temperatures. POWER indicator blinks during defrost.
- Drainage: Manual drainage by removing the drain plug. Continuous drainage option available.
Troubleshooting and error codes
| SYMPTOM | POSSIBLE CAUSE | REMEDY |
|---|---|---|
| The unit is not working | No power | Connect to power source and turn the unit ON |
| Full water indicator is illuminated | Drain the water | |
| The unit works with reduced capacity | Low room temperature | Change the set temperature |
| Dirty air filter | Clean the air filter as required | |
| Air ducts are blocked | Clear obstacles. Re-position unit into clear space | |
| Doors or windows open | Close the doors and windows | |
| Incorrect mode and temperature selected | Select correct mode and temperature to suit desired application | |
| Detached exhaust hose | Securely reattach exhaust hose | |
| Water leakage | Spillage when moving the unit | Empty the water tank before moving the unit |
| The drain hose is kinked or bent | Straighten the drain hose | |
| Excessive noise | The unit is on an uneven surface | Place the unit onto a flat horizontal surface |
| Loose, vibrating parts | Check for loose parts and re-tighten | |
| Water flowing sound | Normal sound of refrigerant flowing | |
| Error codes | E0 Communication faults between main PCB and display PCB | Contact Sealey service centre |
| E1 Ambient temperature sensor fail | Contact Sealey service centre | |
| E2 Coil temperate sensor failures | Contact Sealey service centre | |
| Ft Condensate water high level alarm | Drain the water |
