Brand: SEALEY
Category: Wet & Dry Vacuum Cleaner
Document Type: Manual
Language: EN

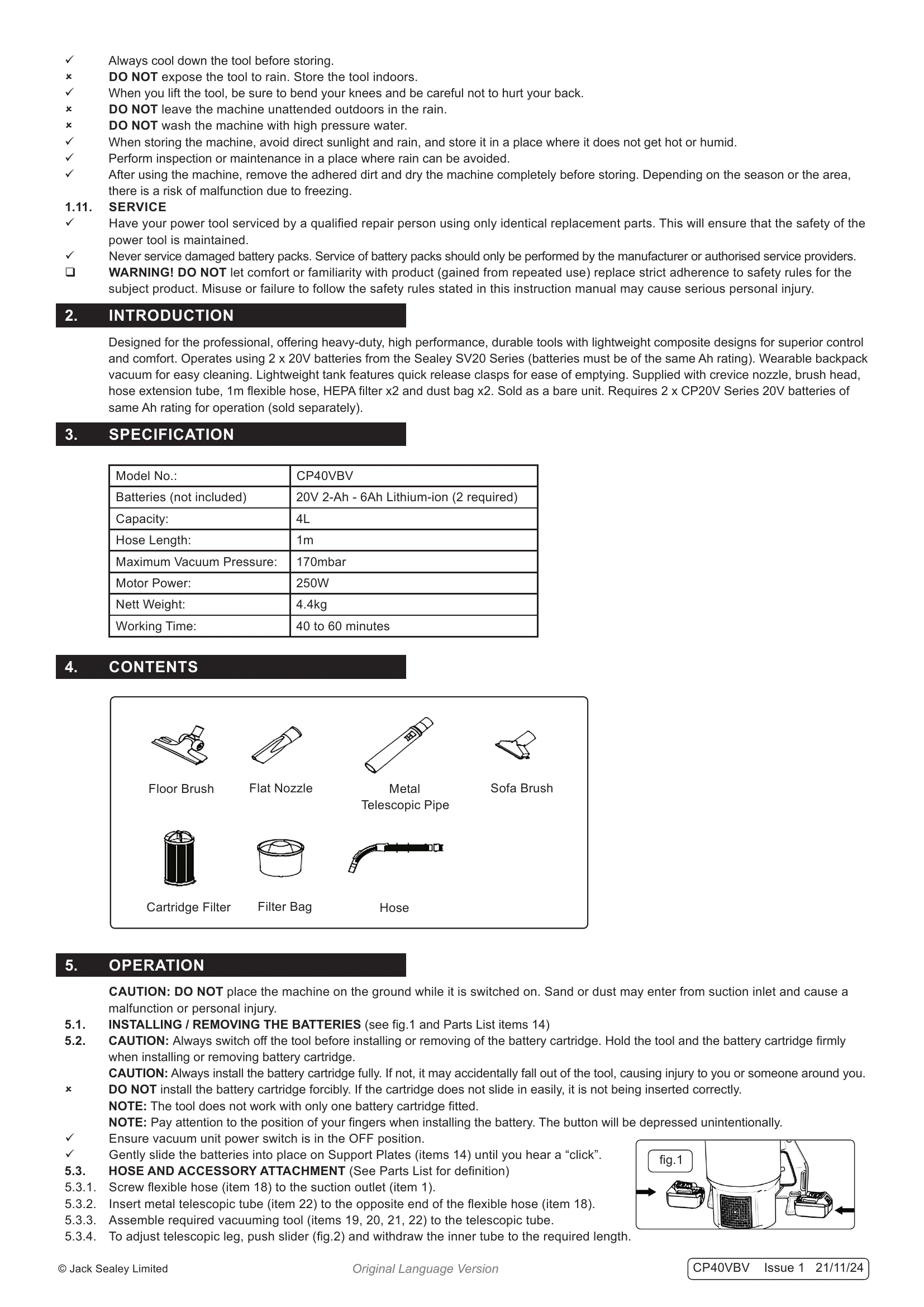

Manual for CP40VBV
Uploaded: Nov. 21, 2025, 8:46 p.m.
Manual Publish Date: 2024-11-21
Warranty Information
Guarantee is 12 months from purchase date, proof of which is required for any claim.
Basic Operation:
- Ensure batteries are correctly installed.
- Connect accessories (hose, nozzles) as needed.
- Press the On/Off control to turn the machine on.
- Use the Suction Control to select high or low gear.
- Operate the tool in a well-lit, clean area.
- After use, switch off the tool and remove batteries.
- Clean the unit as per maintenance instructions.
Troubleshooting and error codes
| PROBLEM | CAUSE | SOLUTION |
|---|---|---|
| Backpack Not Working | Battery not properly connected to backpack. | Check and re-connect battery. 2 battery packs are needed. |
| Battery connected to backpack while the Switch was in the ON position. | Turn the switch to OFF and switch back ON after 5 seconds. | |
| Battery pack power depleted or battery pack is damaged. | Check the charged level by pressing the power button. Check for damage. If no sign of damage then charge the battery. | |
| Battery pack shuts off due to abnormally high Motor temperature. | Turn Off, ensure dust bag is clean. After 30 minutes the machine should be ready for use. If not, contact an Authorized Service | |
| Backpack Has No/poor Suction | Backpack has no/poor suction | Remove, empty and clean filter bag. |
| Filter bag not installed correctly | Remove and empty filter bag making sure the rubber edging is correctly fitted around the canister. | |
| Hose not installed correctly. | Reconnect hose and ensure it is correctly Sealed. | |
| Blockages | Remove hose, metal telescopic pipe and floor tools; remove any blockages. | |
| Filters blocked. | Replace / clean filter. | |
| Weak battery. | Check the charge level by pressing the power button. Remove the batteries and charge. | |
| Backpack Motor starts And stops Repeatedly (pulsing) | Blockages. | Remove hose, telescope and floor tools; Remove any blockages. |
| Filters blocked. | Replace / clean filter. |
