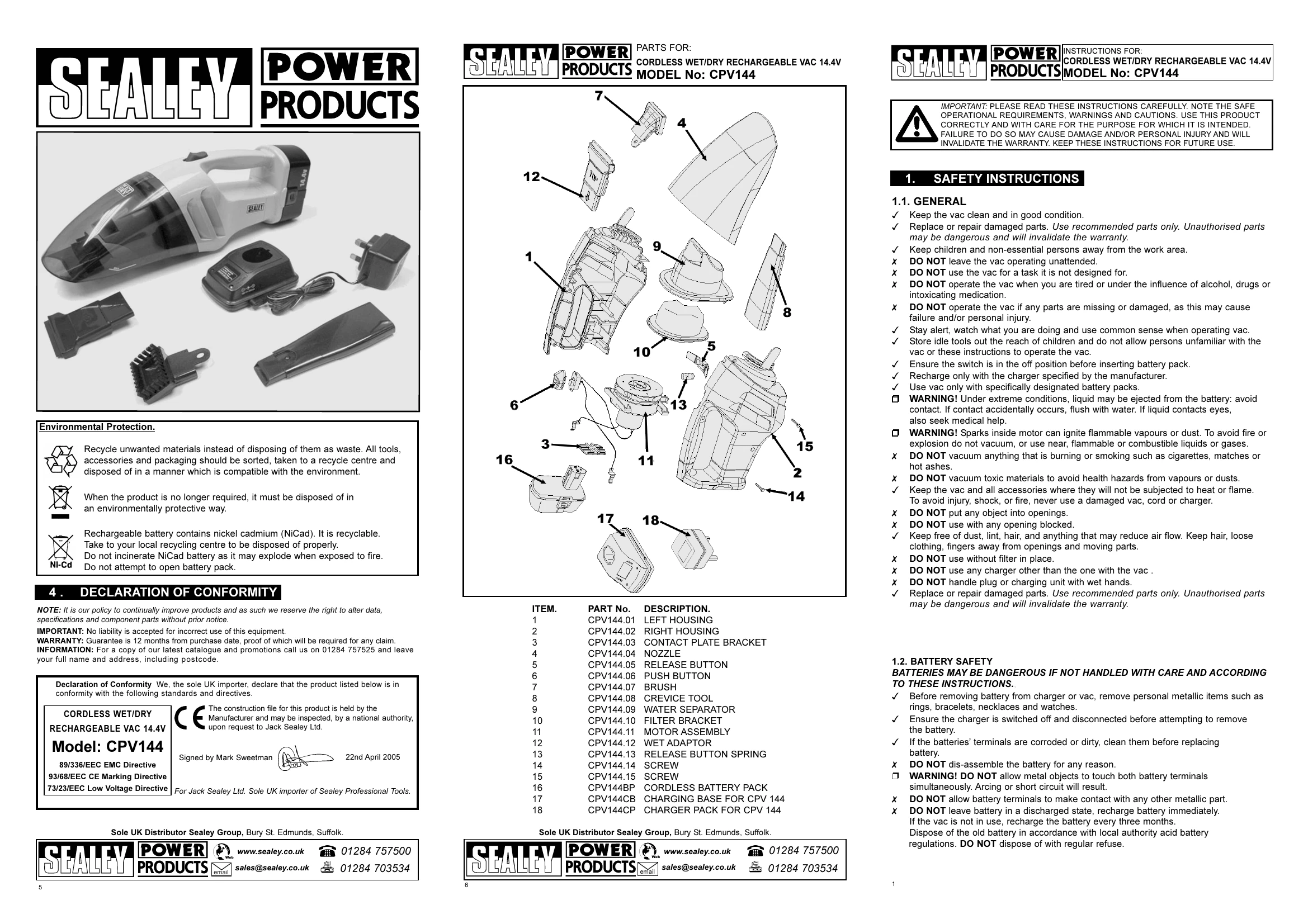

Manual for CPV144

Charging Battery Pack

1. Connect the charger to the power supply.
2. Place the battery pack in the charge stand, aligning the raised rib with the groove.
3. Press down to ensure contacts engage.
4. The RED charge indicator light shows charging is in progress.

Operating Vac (Dry Spills)

1. Place battery in hand vac, aligning the rib with the groove.
2. Push the On/Off switch forward to turn on.
3. Release the switch to stop.

To Vacuum Wet Spills

1. Ensure liquid separator and wet adaptor are fitted.
2. Press and hold the On/Off switch.
3. Release the switch to stop. Do not fill past the MAX line.

Emptying Dust Collector

1. Position vac over a waste receptacle.
2. Hold vac with dust collector down.
3. Press release button and separate motor from collector.
4. Remove filter and liquid separator, drain collector, clean, and dry.
5. Re-assemble the vac.

To Vacuum Dry Spills, Dust and Dirt

1. Remove wet adaptor if fitted.
2. Attach appropriate tool to dust collector.
3. Press and hold On/Off switch to vacuum.
4. Release switch to stop.
5. Empty dust collector as described above.
6. Clean filter by brushing or shaking. Wash and dry if necessary.
7. Re-assemble the vac.
